11 AISG Controller Display

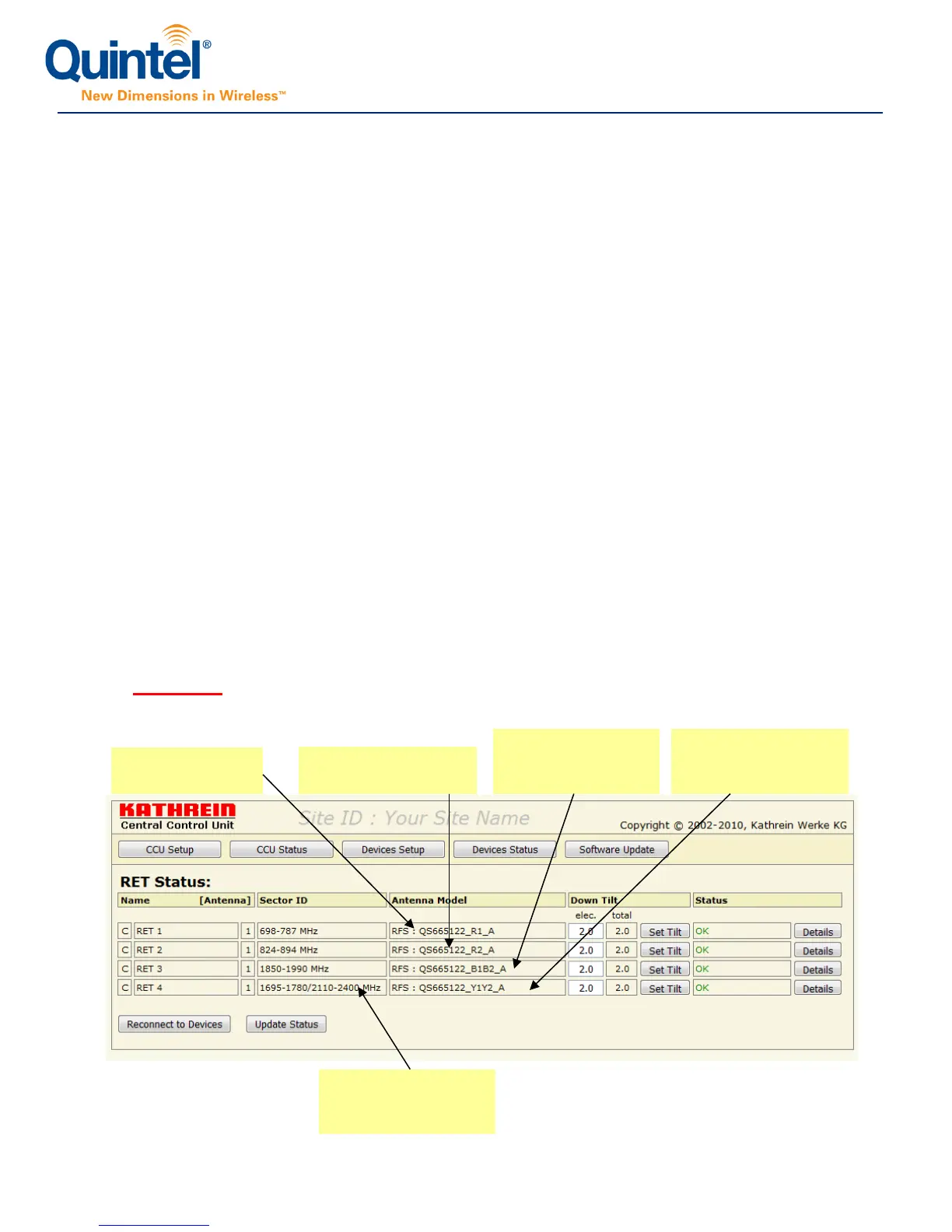

11.1 Example of 4-Tilt QS66512-2 Display
The antenna models listed below will use the following naming convention:
a) All 6-port antenna models, Example: QS6656-XR where X=model and R=revision
b) All 8-port antenna models, Example: QS6658-XR where X=model and R=revision
c) All 10-port antenna models, Example: QSX6510-XR where X=model and R=revision
d) All 12-port antenna models, Example: QSX6512-XR where X=model and R=revision
The naming convention used in the AISG display corresponds to the antenna port labels on the bottom of the antenna.
R1 – Low band ports, refer to data sheet for details.
R2 – Low band ports covering, refer to data sheet for details.
Y1 – High band left ports, refer to data sheet for details.
Y2 – High band right ports, refer to data sheet for details.
B1 – High band left ports, refer to data sheet for details.
B2 – High band right ports, refer to data sheet for details.
Y1Y2 – High band left and right ports, refer to data sheet for details.
B1B2 – High band left and right ports, refer to data sheet for details.
The tilts for each device and sector naming conventions should be set according to the RFDS (Radio Frequency Design
Specification) supplied by engineering and in a manner appropriate to the AISG controller being used. Please refer to
the AISG controller manufacturer’s documentation for further information.
& Right common tilt
Left & Right common
850MHz single tilt by
band entry.
700MHz single tilt
by band entry.
Information for
