MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 18

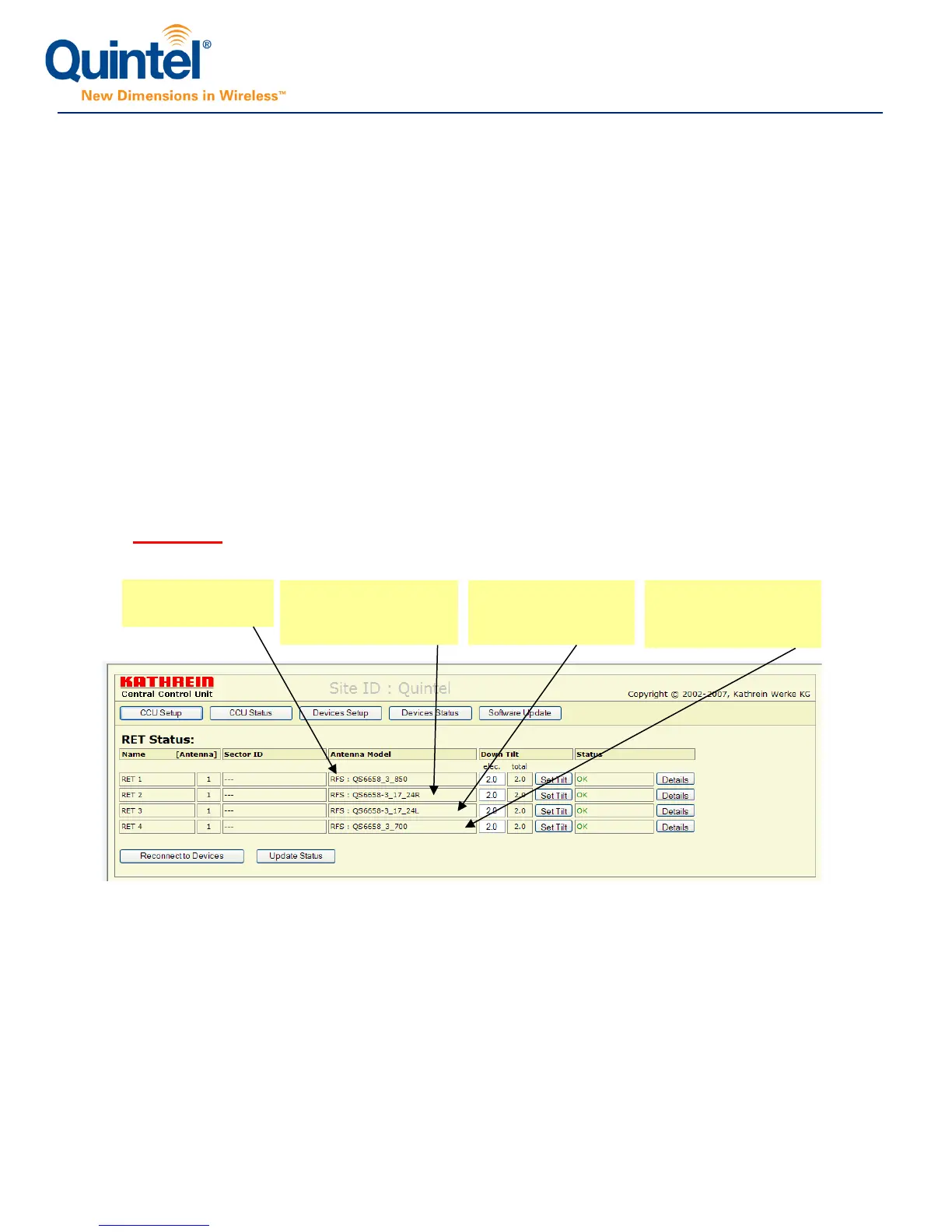

12 AISG Controller Display – QSX65X-3 Models
12.1 Example of 4-Tilt QS6658-3 Display
single tilt by band
The antenna models listed below will use the following, older naming convention:
a) All 6-port antenna models without a trailing revision letter, Example: QS6656-3
b) All 8-port antenna models without a trailing revision letter, Example: QS6658-3
Example: This diagram refers specifically to antenna model QS6658-3, with a total of four (4) RET devices:
One for independently tilting 700MHz – Labeled RFS: QS6658_3_700
One for independently tilting 850MHz – Labeled RFS: QS6658_3_850
One for independently tilting 1710-2400MHz on the Left hand array – Labeled RFS: QS6658-3_17_24_L
One for independently tilting 1710-2400MHz on the Right hand array – Labeled RFS: QS6658-3_17_24_R
The tilts for each device and sector naming conventions should be set according to the RFDS (Radio Frequency Design
Specification) supplied by engineering and in a manner appropriate to the AISG controller being used. Please refer to
the AISG controller manufacturer’s documentation for further information.
band entry.
single tilt by band
850MHz single tilt
by band entry.
