stall each
RAM
until you find
one
that
crashes
the
power
supply. Remove
the
bad
RAM
and
continue
to
check
the
rest
of
them.
There
may
be
more
than
one
shorted
device.
A
short
on
the
+5
volt
bus can be a real head-
ache. Unless
you
can see
the
short,
you
will have
to
cut
runs
to
Section
Isolate. Once you isolate
the
shorted
section, you will
probably
still have
to
make
other
cuts
to
get
down
to
the
short.
Do
not
forget
to
repair
your
cuts. And remember,
these
runs
must
carry
considerable
current.
Use
stranded
or
solid wire (22 gauge
or
larger)
to
repair cuts. (Never solder-bridge an
etch
cut;
simple Board stress may
open
the
solder-bridge
or
tear
small runs loose from
the
Board.)
If you find a dead
+12
volt
bus,
examine
01
's
heat
sink.
The
hardware holding
the
transistor/
sink sandwich
together
may have loosened.
The
heat
sink may have
turned
around
and
shorted
against
01'
s base
or
em
itter
lead. Depending on
the
force, it
might
have sheared
one
or
more
leads from
the
PCB. If
you
find a loose
heat
sink.
shorted
or
not,
retighten it.
Problems with
the
AC
adapter
are usually termi-
nal. Either
the
fuse link
in
the
primary winding
has
opened,
or
the
wires were
destroyed
at
the
male
DI
N plug. If you find
the
fuse link blown,
check
rectifier package
CR8
for
shorted
diodes.
In
any
case replace
the
adapter.

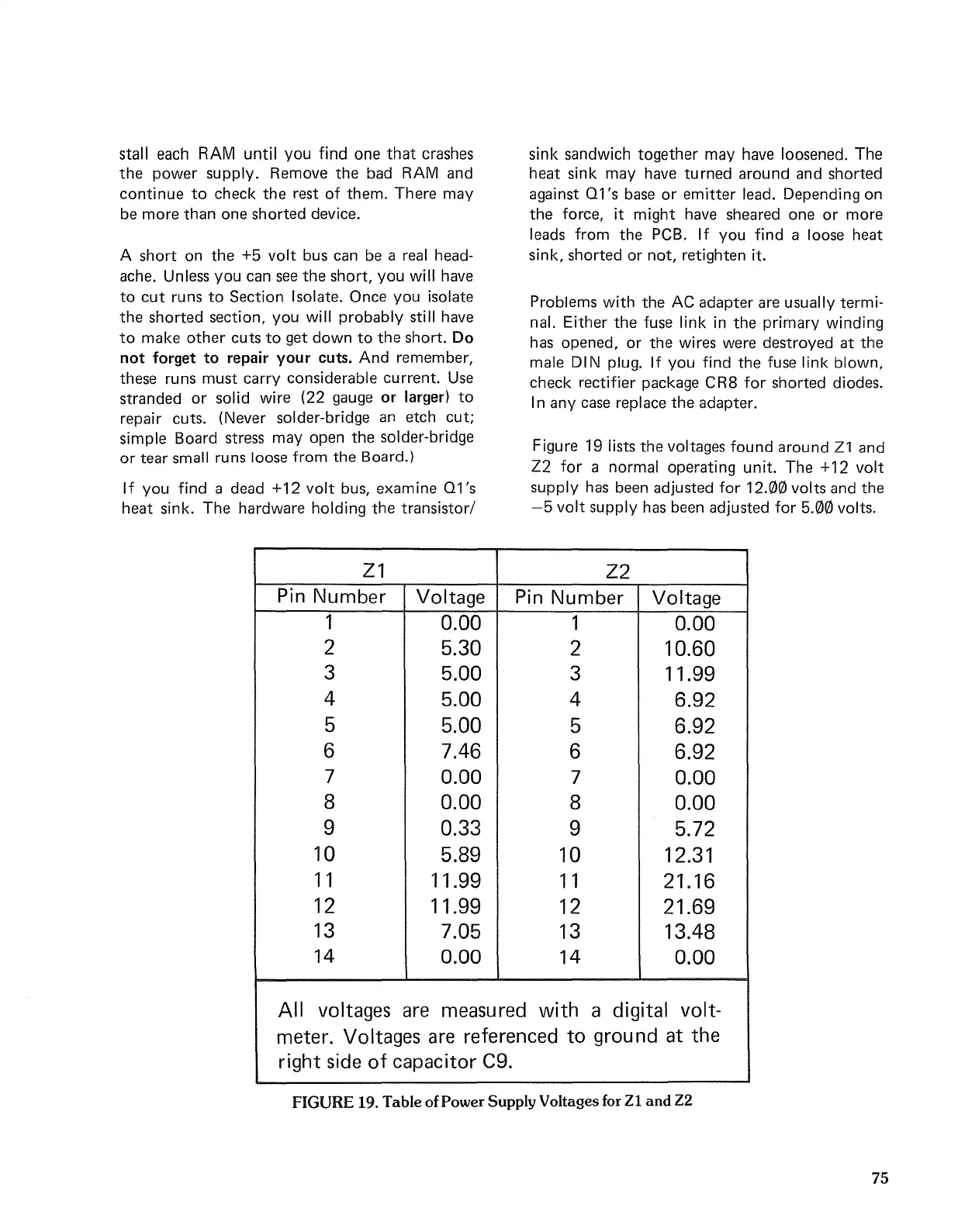

Figure
19
lists
the
voltages
found
around
Z1
and
Z2
for
a normal
operating
unit.
The
+12
volt
supply
has been adjusted
for
12.00 volts and
the
-5
volt
supply
has been adjusted
for
5.00 volts.
Z1
Z2
Pin Number
Voltage
Pin Number
Voltage
1
0.00 1
0.00
2
5.30
2
10.60
3
5.00
3
11.99
4
5.00
4
6.92
5
5.00
5
6.92
6
7.46
6
6.92
7
0.00
7
0.00
8
0.00
8
0.00
9
0.33
9
5.72
10
5.89
10 12.31
11
11.99
11
21.16
12
11.99 12
21.69
13
7.05 13
13.48
14
0.00
14
0.00
All
voltages
are
measured
with
a digital volt-
meter. Voltages
are
referenced
to
ground at the
right
side
of
capacitor
e9.
FIGURE 19. Table ofPower Supply Voltages for
Zl
and
Z2
75
