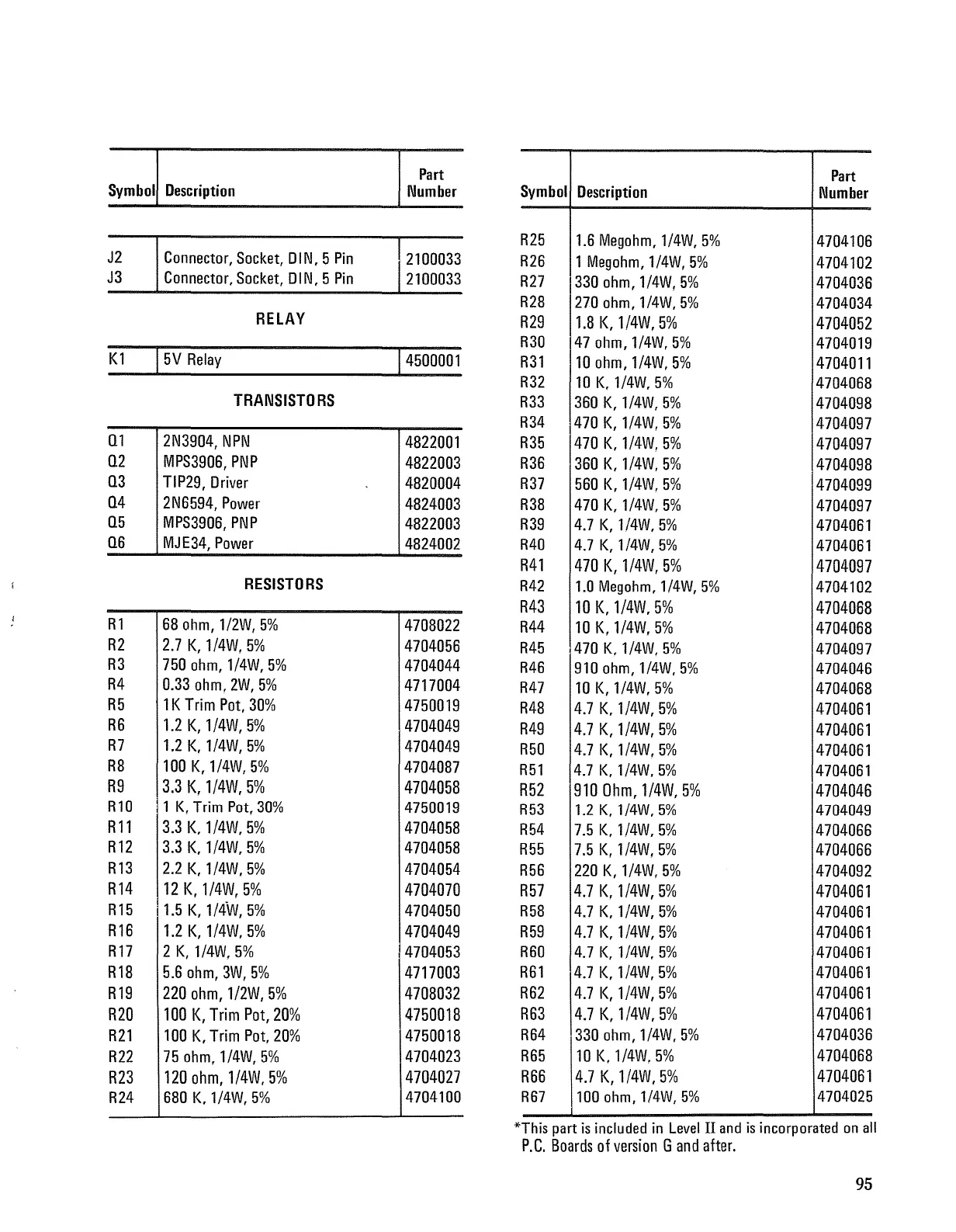

Radio Shack CCR-81 Reference Handbook

01
2N3904, NPN
4822001
02
MPS3906, PNP
4822003
03
TIP29, Driver
4820004
04
2N6594, Power
4824003
05
MPS3906, PNP
4822003
06
MJE34, Power
4824002
J2
Connector, Socket, DIN, 5 Pin
2100033
J3
Connector, Socket, 0 IN, 5 Pin
2100033
RELAY
K1
15V Relay
14500001
TRANSISTO RS
RESISTORS
R1
68 ohm, 1/2W, 5%
4708022
R2
2.7 K, 1/4W, 5%
4704056
R3
750 ohm, 1/4W, 5%
4704044
R4
0.33 ohm, 2W, 5%
4717004
R5
1K Trim Pot, 30%
4750019
R6
1.2 K, 1/4W, 5%
4704049
R7
1.2 K, 1/4W, 5%
4704049
R8
100 K, 1/4W, 5%
4704087
R9
3.3 K, 1/4W, 5%
4704058
Rl0
1
K, Trim Pot, 30%
4750019
R 11 3.3 K, 1/4W, 5%
4704058
R12
3.3 K, 1/4W, 5%
4704058
R13
2.2 K, 1/4W, 5%
4704054
R14
12 K, 1/4W, 5%
4704070
R15
11.5 K, 1/4W, 5%
4704050
R16
1.2 K, 1/4W, 5%
4704049
R17
2 K, 1/4W, 5%
14704053
R18 5.6 ohm, 3W, 5%
4717003
R19 220 ohm, l/2W, 5%
4708032
R20 100 K, Trim Pot, 20%
4750018
R21 100 K, Trim Pot, 20% 4750018
R22 75 ohm, 1/4W, 5%
4704023
R23
120 ohm, 1/4W, 5%
4704027
R24
680 K, 1/4W, 5%
4704100
Symbol Description
Part
Number
Part
Symbol
Description
Number
R25
1.6 Megohm, 1/4W, 5%
4704106
R26
1 Megohm, 1/4W, 5%
4704102
R27
330 ohm, 1/4W, 5%
4704036
R28
270 ohm, 1/4W, 5%
4704034
R29
1.8 K, 1/4W, 5%
4704052
R30
47 ohm, 1/4W, 5%
4704019
R31
10 ohm, 1/4W, 5%
4704011
R32
10 K, 1/4W, 5%
4704068
R33
360 K, 1/4W, 5%
4704098
R34
470 K, 1/4W, 5%
4704097
R35
470 K, 1/4W, 5%
4704097
R36
360 K, 1/4W, 5%
4704098
R37
560 K, 1/4W, 5%
4704099
R38
470 K, 1/4W, 5%
4704097
R39
4.7 K, 1/4W, 5%
4704061
R40
4.7 K, 1/4W, 5%
4704061
R41
470 K, 1/4W, 5%
4704097
R42
1.0 Megohm, 1/4W, 5%
4704102
R43
10 K, 1/4W, 5%
4704068
R44
10 K, 1/4W, 5%
4704068
R45
470 K, 1/4W, 5%
4704097
R46
910 ohm, 1/4W, 5%
4704046
R47
10 K, 1/4W, 5%
4704068
R48
4.7 K, 1/4W, 5%
4704061
R49
4.7 K, 1/4W, 5%
4704061
R50
4.7 K, 1/4W, 5%
4704061
R51
4.7 K, 1/4W, 5%
4704061
R52
910 Ohm, 1/4W, 5%
4704046
R53
1.2 K, 1/4W, 5%
4704049
R54
7.5 K, 1/4W, 5%
4704066
R55
7.5 K, 1/4W, 5%
4704066
R56
220 K, 1/4W, 5%
4704092
R57 4.7 K, 1/4W, 5%
4704061
R58
4.7 K, 1/4W, 5%
4704061
R59
4.7 K, 1/4W, 5%
4704061
R60
4.7 K, 1/4W, 5%
4704061
R61
4.7 K, 1/4W, 5% 4704061
R62 4.7 K, 1/4W, 5% 4704061
R63
4.7 K, 1/4W, 5%
4704061
R64
330 ohm, 1/4W, 5%
4704036
R65 10 K, 1/4W, 5% 4704068
R66 4.7 K, 1/4W, 5%
4704061
R67 100 ohm, 1/4W, 5%
4704025
*This part is included in Level II and is incorporated on all
P. C. Boards of version G and after.
95
