Fn
eee

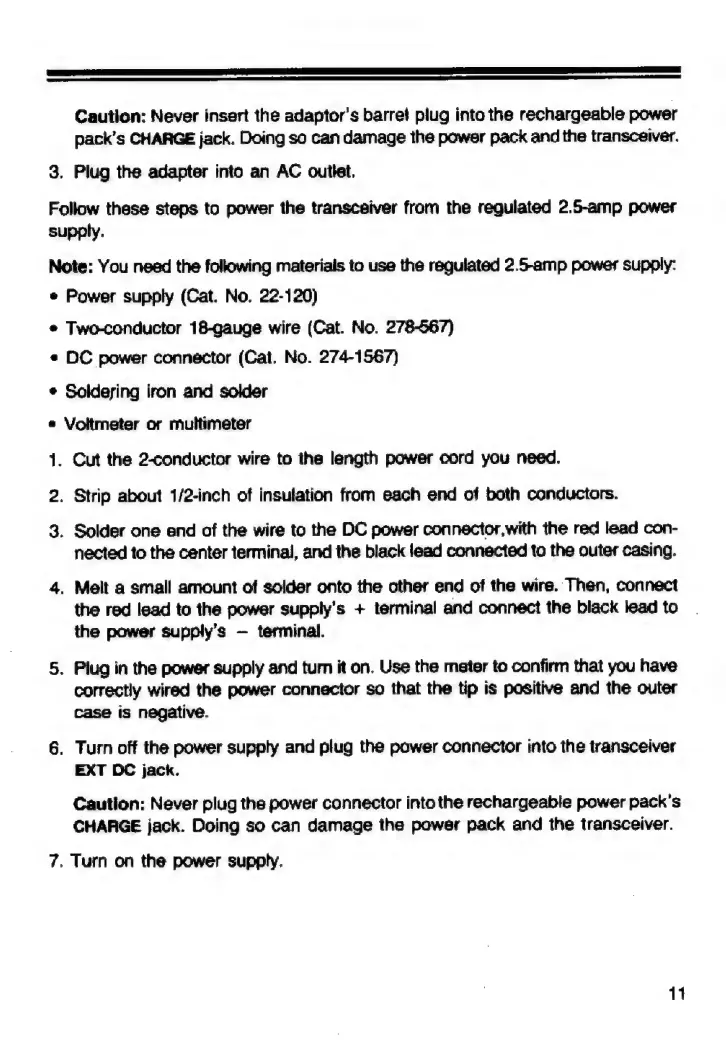

Caution:
Never
insert
the
adaptor’s
barret
plug
into
the
rechargeable
power
pack’s
CHARGE
jack.
Doing
so
can
damage
the
power
pack
and
the
transceiver.
3.
Plug
the
adapter
into
an
AC
outtet.
Follow
these
steps
to
power
the
transceiver
from
the
regulated
2.5-amp
power
supply.
Note:
You
need
the
following
materials
to
use
the
regulated
2.5-amp
power
supply:
¢
Power
supply
(Cat.
No.
22-120)
e
Two-conductor
18-gauge
wire
(Cat.
No.
278-667)
«
DC
power
connactor
(Cat.
No.
274-1567)
¢
Soldering
iron
and
solder
e
Voltmeter
or
multimeter
1.
Cut
the
2-conductor
wire
to
the
length
power
cord
you
need.
2.
Strip
about
1/2-inch
of
insulation
from
each
end
of
both
conductors.
3.
Solder
one
end
of
the
wire
to
the
DC
power
connector,with
the
red
lead
con-
nected
to
the
center
terminal,
and
the
black
{ead
connected
to
the
outer
casing.
4.
Melt
a
small
amount
of
solder
onto
the
other
end
of
the
wire.
Then,
connect
the
red
lead
to
the
power
supply’s
+
terminal
and
connect
the
black
lead
to
the
power
supply’s
—
terminal.
5.
Plug
in
the
power
supply
and
turn
it
on.
Use
the
meter
to
confirm
that
you
have
correctly
wired
the
power
connector
so
that
the
tip
is
positive
and
the
outer
case
is
negative.
6.
Turn
off
the
power
supply
and
plug
the
power
connector
into
the
transceiver
EXT
DC
jack.
Caution:
Never
plug
the
power
connector
into
the
rechargeable
power
pack's
CHARGE
jack.
Doing
so
can
damage
the
power
pack
and
the
transceiver.
7.
Turn
on
the
power
supply.
