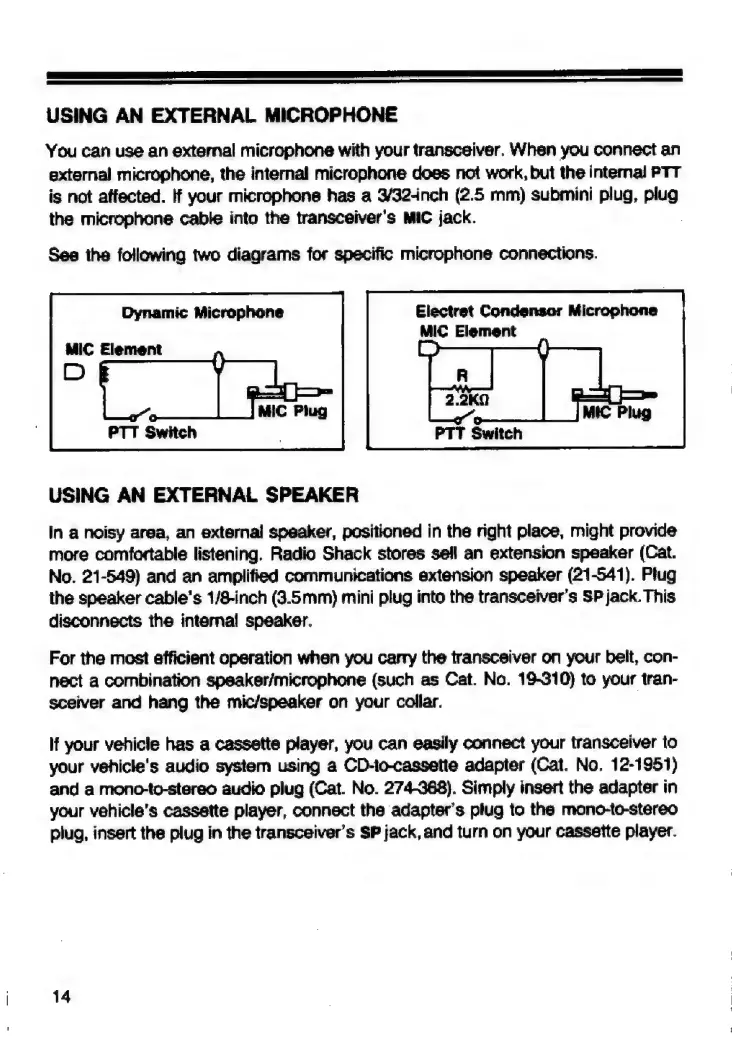

USING
AN
EXTERNAL
MICROPHONE
You
can use
an
external
microphone
with
your
transceiver.
When
you
connect
an
external
microphone,
the
internal
microphone
does
not
work,
but
the
internal
PTT
is
not
affected.
If
your
microphone
has
a
¥32-inch
(2.5
mm)
submini
plug,
aia)
the
microphone
cable
into
the
transceiver's
MIC
jack.
See
the
following
two
diagrams
for
specific
microphone
connections.
Dynamic
Microphone
Electret
Condensor
Microphone
MIC
Element
m=
MIC
Element
D
USING
AN
EXTERNAL
SPEAKER
In
a
noisy
area,
an
external
speaker,
positioned
in
the
right
place,
might
provide
more
comfortable
listening.
Radio
Shack
stores
sell
an
extension
speaker
(Cat.
No.
21-549)
and
an
amplified
communications
extension
speaker
(21-541).
Plug
the
speaker
cable's
1/8-inch
(3.5mm)
mini
plug
into
the
transceiver’s
SP
jack.
This
disconnects
the
internal
speaker.
For
the
most
efficient
operation
when
you
carry
the
transceiver
on
your
belt,
con-
nect
a
combination
spsaker/microphone
(such
as
Cat.
No.
19-310)
to
your
tran-
sceiver
and
hang
the
mic/speaker
on
your
collar.
lf
your
vehicle
has
a
cassette
player,
you
can
easily
connect
your
transceiver
to
your
vehicle's
audio
system
using
a
CD-to-cassette
adapter
(Cat.
No.
12-1951)
and
a
mono-to-stereo
audio
plug
(Cat.
No.
274-368).
Simply
insert
the
adapter
in
your
vehicle’s
cassette
player,
connect
the
adapter’s
plug
to
the
mono-to-stereo
plug,
insert
the
plug
in
the
transceiver’s
SP
jack,
and
turn
on
your
cassette
player.
14
