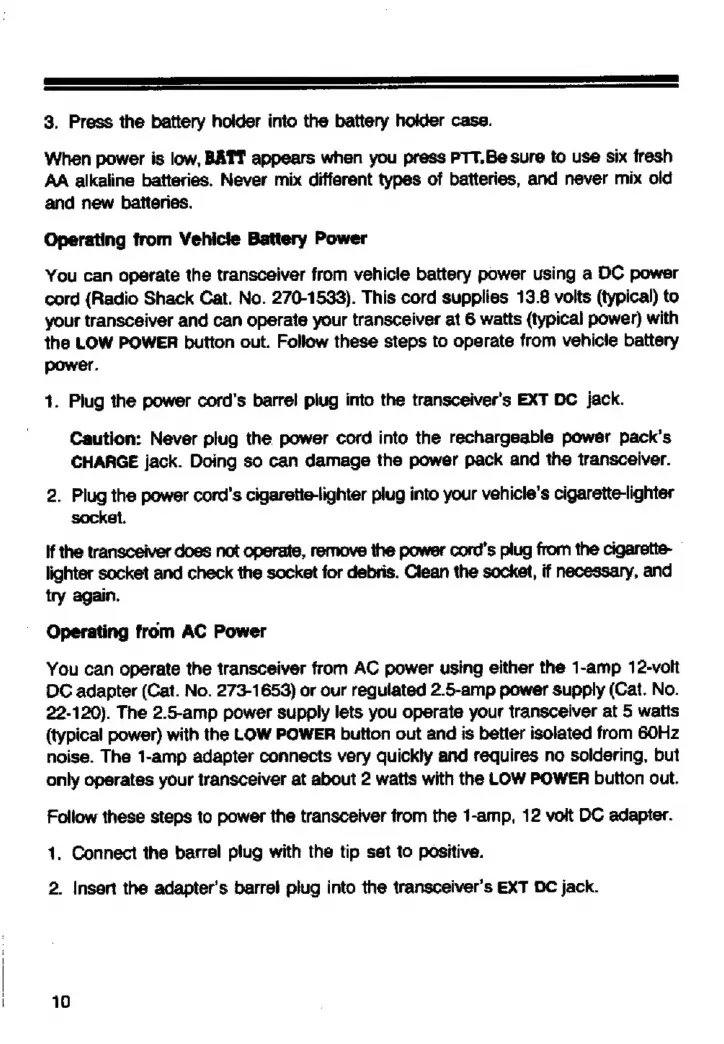

3. Press the battery holder into the battery hoider case.
When power is low, BATT appears when you press PTT.Be sure to use six fresh
AA alkaline batteries. Never mix different types of batteries, and never mix old
and new batteries.
Operating from Vehicle Battery Power
You can operate the transceiver from vehicle battery power using a OC power
cord (Radio Shack Cat. No. 270-1533). This cord supplies 13.8 volts (typical) to
your transceiver and can operate your transceiver at 6 watts (typical power) with
the LOW POWER button out. Follow these steps to operate from vehicle battery
power.
1. Plug the power cord’s barrel plug into the transceiver's EXT DC jack.
Caution: Never plug the power cord into the rechargeable power pack’'s
CHARGE jack. Doing so can damage the power pack and the transceiver.
2. Plug the power cord’s cigarette-lighter plug into your vehicle's cigarette-lighter
socket.
if the transceiver does not operate, remove the power cord’s plug from the cigarette- —
lighter socket and check the socket for debris. Clean the socket, if necessary, and
try again.
Operating from AC Power
You can operate the transceiver from AC power using either the 1-amp 12-volt
DC adapter (Cat. No. 273-1653) or our regulated 2.5-amp power supply (Cat. No.
22-120). The 2.5-amp power supply lets you operate your transceiver at 5 watts
(typical power) with the LOW POWER button out and is better isolated from 60Hz
noise. The 1-amp adapter connects very quickly and requires no soldering, but
only operates your transceiver at about 2 watts with the LOW POWER button out.
Follow these steps to power the transceiver from the 1-amp, 12 volt DC adapter.
1. Connect the barrel plug with the tip set to positive.
2. Insert the adapter’s barrel plug into the transceiver’s EXT DC jack.
