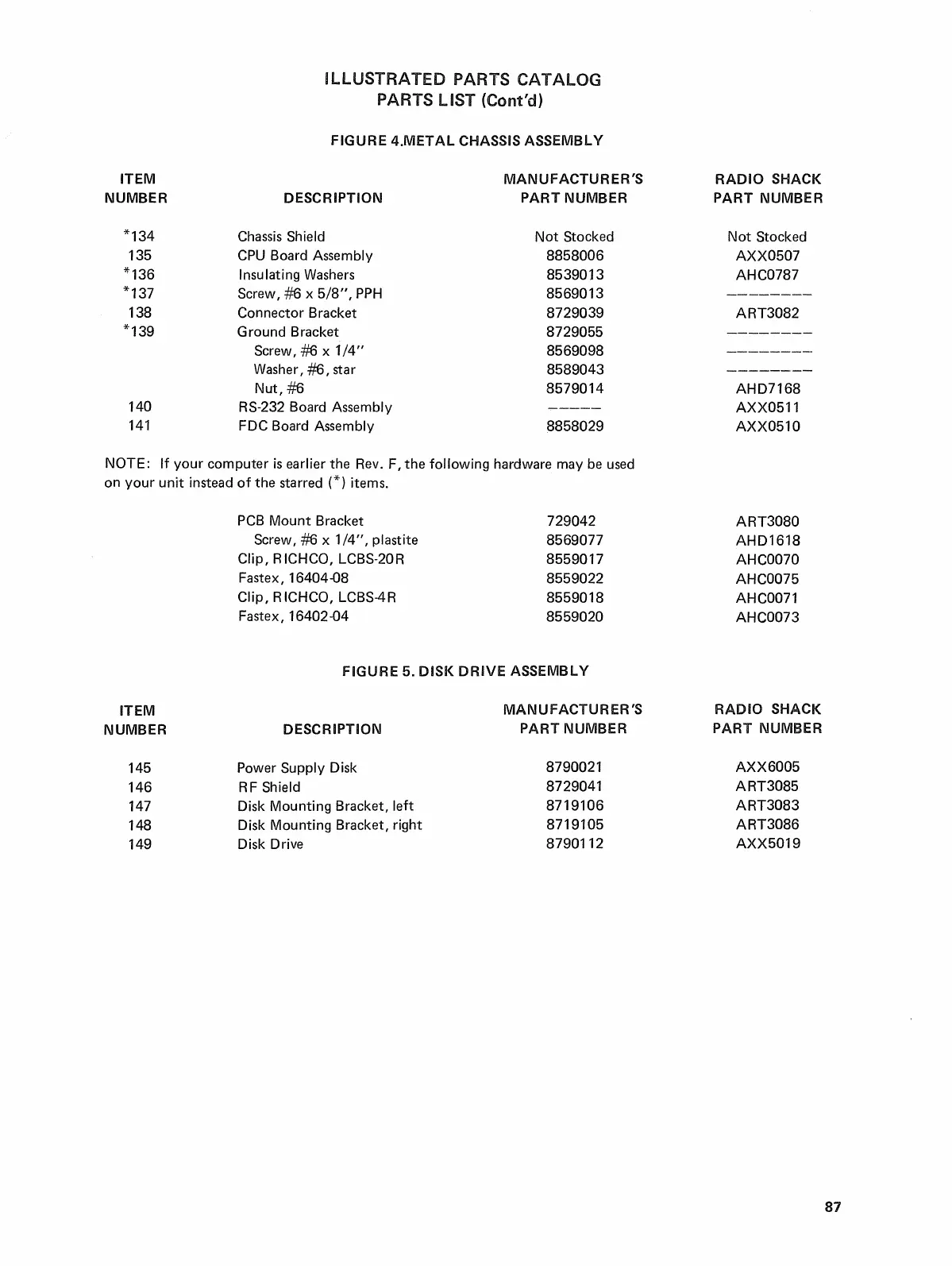

ILLUSTRATED PARTS CATALOG
PARTS LIST (Cont'd)
FIGURE 4.METAL CHASSIS ASSEMBLY
ITEM
NUMBER
*134
135
~136
*137
138
*139
140
141
MANUFACTURER'S
RADIO SHACK
DESCRIPTION PART NUMBER PART NUMBER
Chassis Shield
Not Stocked Not Stocked
CPU Board Assembly
8858006
AXX0507
Insulating
Washers 8539013
AHC0787
Screw,
#6 x 5/8", PPH 8569013
--------
Connector Bracket
8729039
ART3082
Ground Bracket
8729055
--------
Screw, #6 x 1/4" 8569098
---------
Washer, #6, star
8589043
------,--
Nut, #6 8579014
AHD7168
RS-232 Board Assembly
-----
AXX0511
FDC Board Assembly
8858029
AXX0510
NOTE:
If your computer is earlier the Rev. F, the following hardware may be used
on your unit instead of the starred (*) items.
PCB Mount Bracket
Screw,
#6 x 1/4", plastite
Clip, RICHCO, LCBS-20R
Fastex, 16404-08
Clip, RICHCO, LCBS-4R
Fastex, 16402-04
729042
8569077
8559017
8559022
8559018
8559020
ART3080
AHD1618
AHC0070
AHC0075
AHC0071
AHC0073
FIGURE 5. DISK
DRIVE ASSEMBLY
ITEM
MAN UFACTUR ER 'S
RADIO SHACK
NUMBER
DESCRIPTION
PART NUMBER
PART NUMBER
145
Power Supply Disk
8790021 AXX6005
146
RF Shield
8729041 ART3085
147
Disk Mounting Bracket, left
8719106 ART3083
148
Disk Mounting Bracket, right
8719105 ART3086
149
Disk Drive
8790112 AXX5019
81
