Radio Shack TRS-80 III User Manual

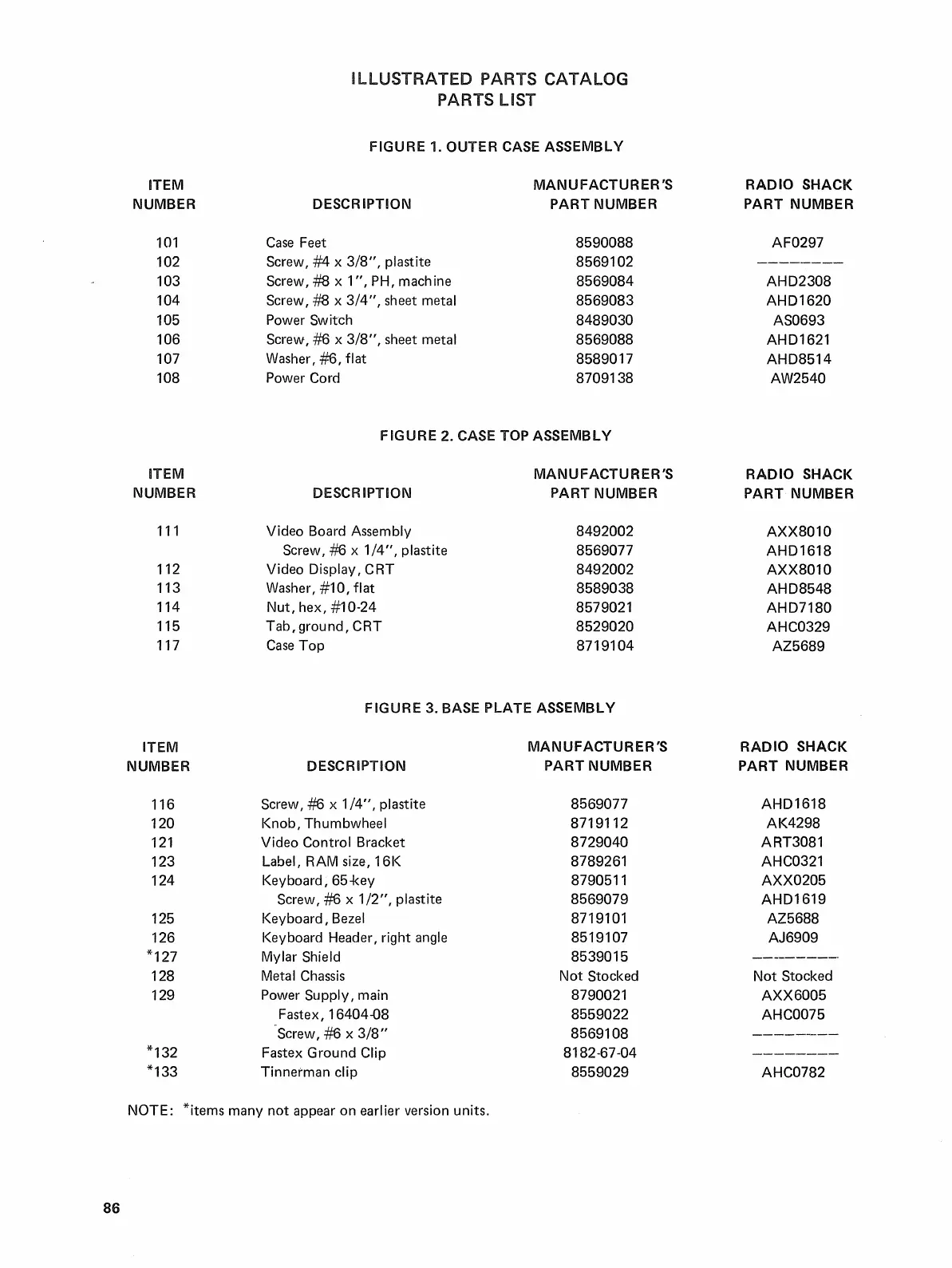

ILLUSTRATED PARTS CATALOG
PARTS LIST
FIGURE 1. OUTER CASE ASSEMBLV
ITEM
MANUFACTURER'S RADIO SHACK
NUMBER
DESCR IPTION
PART NUMBER PART NUMBER
101
Case Feet
8590088 AF0297
102
Screw, #4 x 3/8", plastite
8569102
--------
103
Screw,
#8 x 1", PH, machine
8569084 AHD2308
104 Screw,
#8 x 3/4", sheet metal 8569083
AHD1620
105
Power Switch
8489030 AS0693
106
Screw,
#6 x 3/8", sheet metal
8569088
AHD1621
107
Washer, #6, flat
8589017
AHD8514
108
Power Cord
8709138
AW2540
FIGURE 2. CASE TOP ASSEMBLV
ITEM
MANUFACTURER'S
RADIO SHACK
NUMBER DESCRIPTION
PART NUMBER
PART NUMBER
111
Video Board Assembly
8492002
AXX8010
Screw, #6 x 1/4", plastite
8569077
AHD1618
112 Video Display, CRT
8492002
AXX8010
113 Washer, #10, flat
8589038
AHD8548
114
Nut, hex, #10-24
8579021
AHD7180
115
Tab,ground, CRT
8529020
AHC0329
117
Case Top
8719104
AZ5689
FIGURE 3. BASE PLATE ASSEMBLV
ITEM
NUMBER
116
120
121
123
124
125
126
*127
128
129
*132
*133
DESCRIPTION
Screw,
#6 x 1/4", plastite
Knob, Thumbwheel
Video Control Bracket
Label, RAM size, 16K
Keyboard, 65 -key
Screw, #6 x 1/2", plastite
Keyboard, Bezel
Keyboard Header, right angle
Mylar Shield
Metal
Chassis
Power Supply, main
Fastex,
16404-08
'Screw, #6 x 3/8"
Fastex Ground Clip
Tinnetman clip
MANUFACTURER'S
PART NUMBER
8569077
8719112
8729040
8789261
8790511
8569079
8719101
8519107
8539015
Not Stocked
8790021
8559022
8569108
8182-67-04
8559029
RADIO SHACK
PART NUMBER
AHD1618
AK4298
ART3081
AHC0321
AXX0205
AHD1619
AZ5688
AJ6909
Not Stocked
AXX6005
AHC0075
AHC0782
86
NOTE: *items many not appear on earlier version units.
