MODEL
II
OPERATION
Adding Disk Drives
Each
drive you
add
will increase the on-line storage
of
your system by 509,184
bytes (roughly equivalent to 300 double-spaced typewritten pages).
Connection
of
additional Disk Drives
is
quite simple. Theconnector
is
on the
back
of
the Display console, and a connector cable will be supplied with the
Disk Expansion Unit.
Note:
When
the Disk Expansion Unit
is
not connected to the Model II, a
special terminator
must be connected to the Disk Expansion connectoron the
back
of
the Display Console. This terminator
is
included with the Computer;
connect it to the
DISK
EXPANSION
jack.
Further
instructionsare provided with theExpansion Unit, and can be added
at
the
end
of
this Operation Manual.

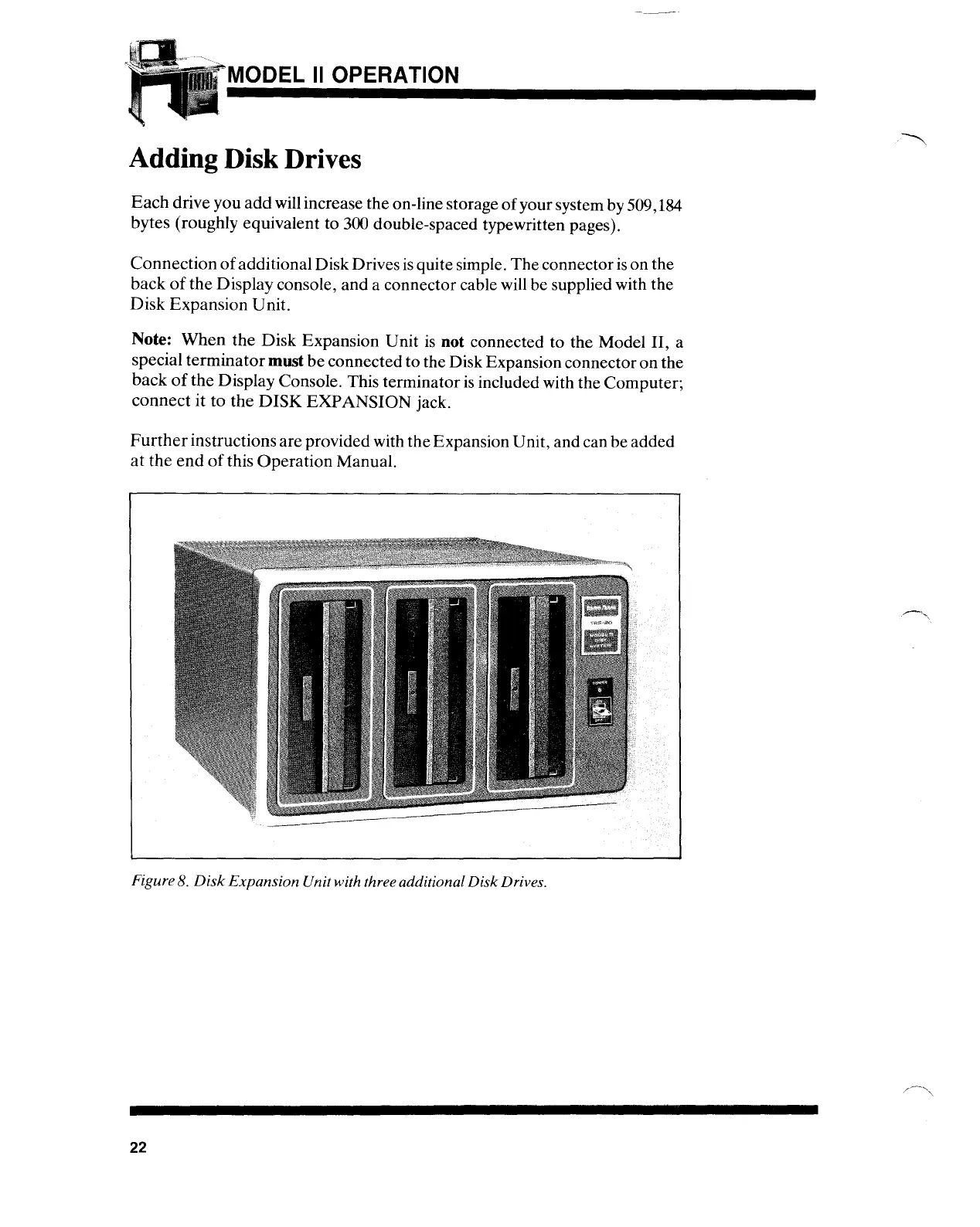

Figure
8.
Disk
Expansion Unit with three additional Disk Drives.
