Radiodetection RD7200 User Manual

6 7
ENGLISH
10
RD7200 locator
6
7
12
13
14
15
14
16
17 1818
29
32
31
19
20
21
22
23
24 25 2730 2826

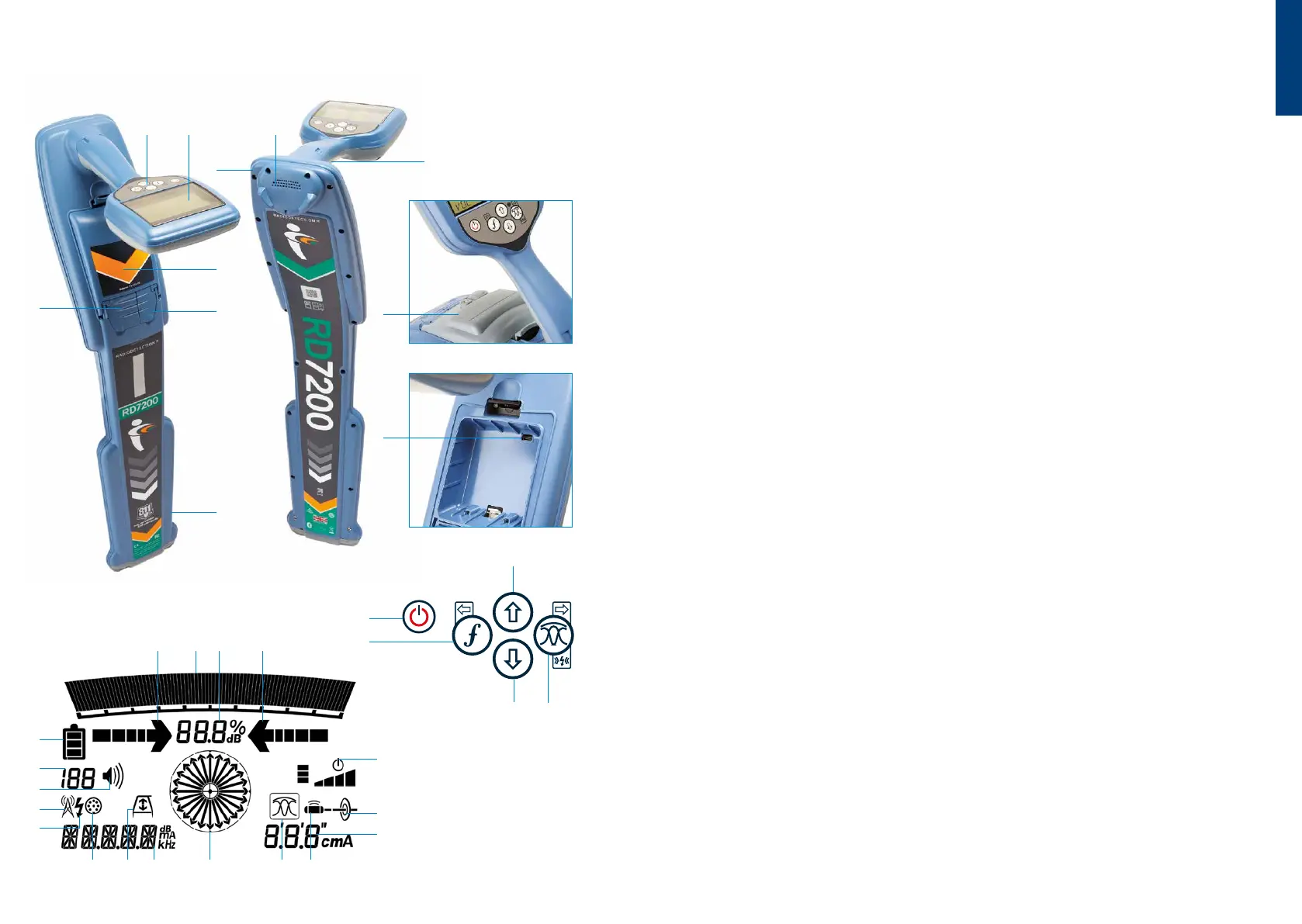

Locator features
1. Keypad.
2. LCD with auto backlight.
3. Haptic (vibration) feedback.
4. Speaker.
5. Battery compartment.
6. Accessory connector.
7. Headphone connector.
8. Bluetooth
®
module.
9. Swing alert system.
10. Optional Lithium-Ion battery pack.
11. USB port
(inside battery compartment).
Locator keypad
12. Power key.
13. Frequency key.
14. Up and down arrows.
15. Antenna key.
Locator screen icons
16. Signal strength bargraph with peak
marker.
17. Signal strength readout.
18. Null / Proportional Guidance arrows.
19. Battery level.
20. Sensitivity readout
21. Volume level.
22. Radio Mode icon.
23. Power Mode icon.
24. Accessory / Measurement icon.
25. A-Frame icon.
26. Frequency / current / menu readout.
27. Antenna modes icon:
Indicates antenna mode selection:
Peak/Peak+
™
/Null/Guidance.
28. Sonde icon: Indicates that a sonde
signal source is selected.
29. Line icon: Indicates that a line signal
source is selected.
30. Compass: Shows the orientation
of the located cable or sonde relative
to the locator.
31. Transmitter standby indicator.
32. Depth readout.
11
1 2 4
5
3
8
9
