RadioLink RC4GS V2 User Manual

RadioLink Electronic Ltd
www.radiolink.com
2
⚫ RF Power: <20dbm
⚫ Frequency: 2.4Ghz ISM Band（2400.0MHz--2483.5MHz）
⚫ Modulation Mode: GFSK
⚫ Channel resolution: 4096, the regular jitter is 0.5us
⚫ Spread Spectrum: FHSS
67 Channels Pseudo Random Frequency Sequence Hopping
⚫ LCD Screen: 128*64 Resolution, LCD Back Light
⚫ Low Voltage Alarm: Yes (can be customized on 2S-4S battery)
⚫ Adaptable Models: Fishing boats, Robots
Vehicles(Crawlers/Tanks/Truck)
⚫ Compatible Receiver: R7FG, R6FG,R6F, R8EF, R8F, R4FGM,R4F
⚫ Battery Tray Dimension: 89*59*18mm (3.5”*2.32”*0.71)
⚫ Model Memory: 10
1.2 Receiver R7FG(Standard Pack)
RC6GS V2, sells with R7FG, 2.4GHz 7 channels receiver, gyro integrated and high voltage servo supported.
R7FG Specification
◼ Size: 35*20*13mm (1.05"*0.6"*0.39")
◼ Weight: 9.5g(0.34oz)
◼ Channel: 7CH
◼ Antenna Length: 210mm(8.27")
◼ Operating Current: 30mA
◼ Operating Voltage: 4.6-10V
1.2.1 Receiver Installation and Binding
Binding
1. Put the transmitter and the receiver close to each other (about 50 centimeters) and power both on.
2. Switch on the transmitter and the led on R7FG will start flashing slowly.
3. There is a black binding button(ID SET) on the side of receiver. Press the button for more than 1 second

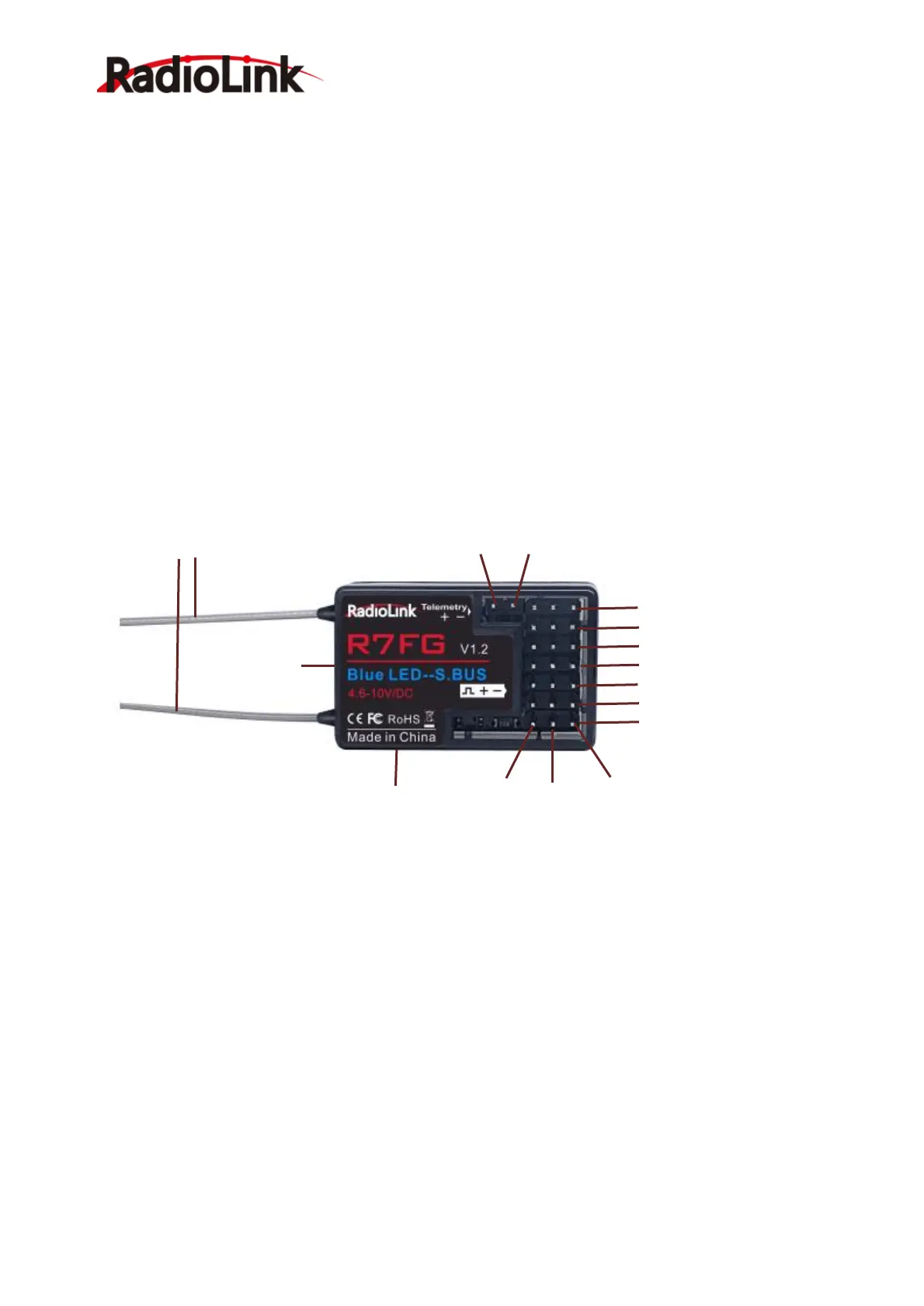

Antenna
VCC GND
Telemetry Port of Model Battery Voltage
Binding Button
(ID SET)
LED Indicator Signal VCC GND
CH1 Steering
CH2 Throttle
CH3 Aux
CH4 Aux
CH5 Aux
CH6 Aux
PPM/SBUS

RadioLink RC4GS V2 Specifications

General

Channels	4
Frequency	2.4GHz
Model Memory	10 models
Failsafe	Yes
Gyro Sensitivity Adjustment	Yes
Channel Bandwidth	500KHz
Screen	LCD
Simulator	Yes
Model Type	Car, Boat
Display	LCD
Telemetry	Yes
Range	400m (open area)
Battery	4x AA (not included)
Spread Spectrum	FHSS
Operating Voltage	4.8V to 6.0V
Control Distance	400m
Weight	320g
Receiver	R6FG
Voltage Range	4.8V to 6.0V
Compatible Receivers	R6FG, R6F
Range (open area)	400m
Transmitter Power	Less than 20dBm
