5. The "Auxiliary RS-232 Output" (D6555 Printer Terminator)
The D6555 Printer Terminator Card is an expansion accessory for the D6500 Receiver. It supports a
supervised external printer or CRT monitor from its RS-232 Serial Port. Refer to the D6500 Operation and
Installation Manual for installation instructions.
The RS-232 port can be used in conjunction with or instead of the internal printer. MPU card programming
determines which device(s) are to be primary machine(s). Refer to the D6500 Program Entry Guide.
J3 Jumper Configuration
Jumper J3 sets up the RS-232 data
I/O protocols for the external device
(Printer or CRT) to be connected to
the D6555. Located near the middle
of the D6555 circuit card, Jumper J3
has Dual Socket Jumpers that are
used to configure the D6555 for the
external device, as shown in Figure
2.
NOTES
: Pin 7 in the 25-Pin RS-
232 Connector is
always
Grounded. Additional
Grounding connections
between the D6500
Receiver and the external
printer or CRT are
not
necessary.
J3
D6555 Automation Port
Pin Configuration (J3)
PIN 2
PIN 3
PIN 5
PIN 6
PIN 7
PIN 20
Data In
Data Out
CTS Out
DSR Out
Signal Ground
DTR In
M
S
K
R
P
N
L
J
D
H
B
G
F
E
C
A
J3
D6555 Automation Port
Pin Configuration (J3)
PIN 2
PIN 3
PIN 5
PIN 7
Data In
Data Out
CTS Out
Signal Ground
Supervised Printer Unsupervised Printer

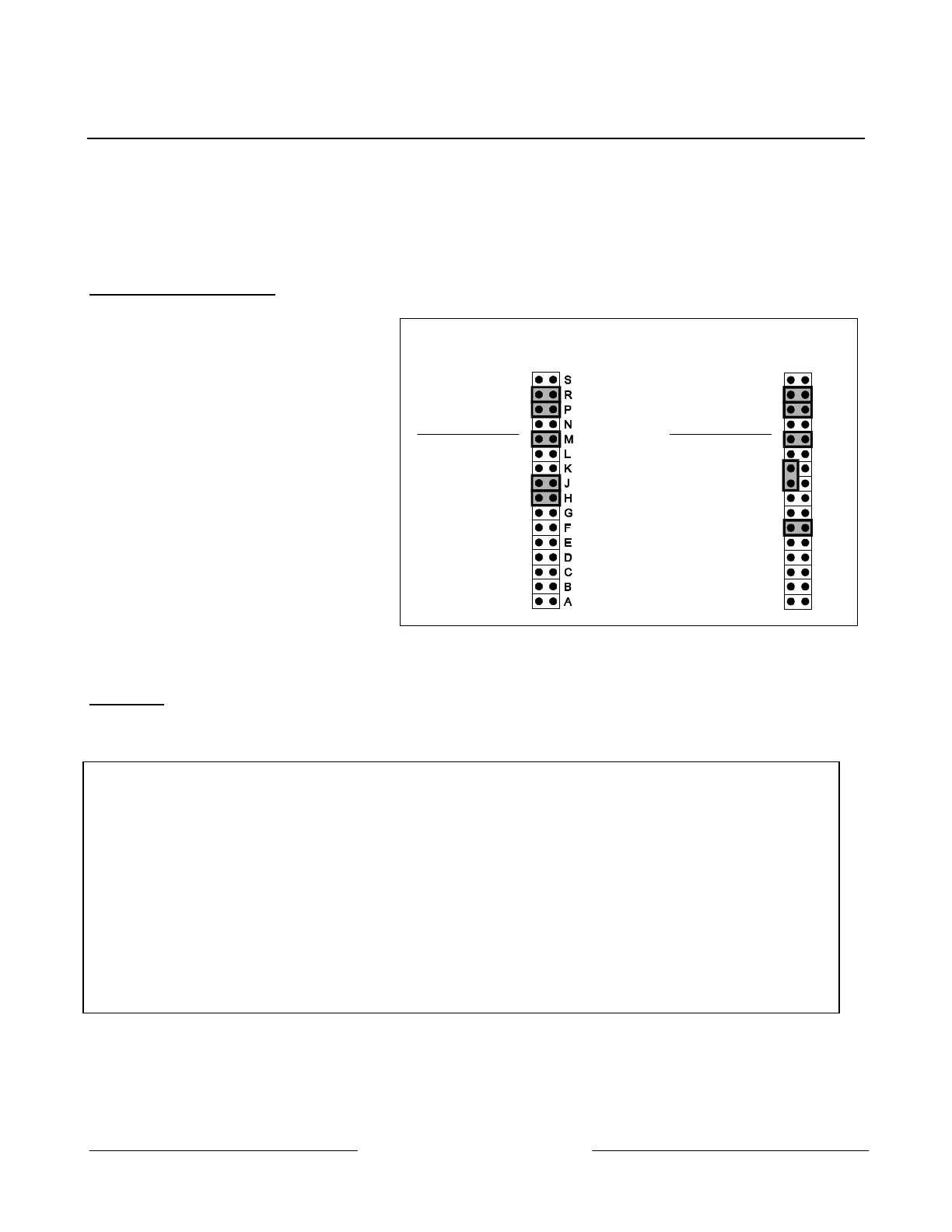

Figure 2: Printer Terminator Card J3 Jumper Installation
Messages
Reports from an external printer read from top to bottom (see Figure 2). Reports from the internal printer
module of the D6500 read from bottom to top.
Newest Report Oldest Report
☞
0729 13:23 L2 ACCT 812 RESTORAL ZONE F
☞
0729 13:20 L2 ACCT 812 CLOSING ZONE B
0729 13:22 L2 ACCT 812 TROUBLE ZONE F 0729 13:21 L2 ACCT 812 ALARM ZONE 1
0729 13:22 L2 ACCT 812 OPENING ZONE B 0729 13:22 L2 ACCT 812 RESTORAL ZONE 1
0729 13:22 L2 ACCT 812 CANCEL REPORT 0729 13:22 L2 ACCT 812 CANCEL REPORT
0729 13:22 L2 ACCT 812 RESTORAL ZONE 1 0729 13:22 L2 ACCT 812 OPENING ZONE B
0729 13:21 L2 ACCT 812 ALARM ZONE 1 0729 13:22 L2 ACCT 812 TROUBLE ZONE F
☞
0729 13:20 L2 ACCT 812 CLOSING ZONE B
☞
0729 13:23 L2 ACCT 812 RESTORAL ZONE F
Oldest Report Newest Report
D6500 INTERNAL PRINTER MODULE EXTERNAL PRINTER
Read report
from bottom to top
Read report
from top to bottom
Figure 3: Printer Report Comparison
