3.7 ASSEMBLING THE SIDE DISCHARGE CHUTE
NOTE
(HH0402, HH0404 Only) Remove the grass bag and assemble the
mulching plug before using the side discharge function.

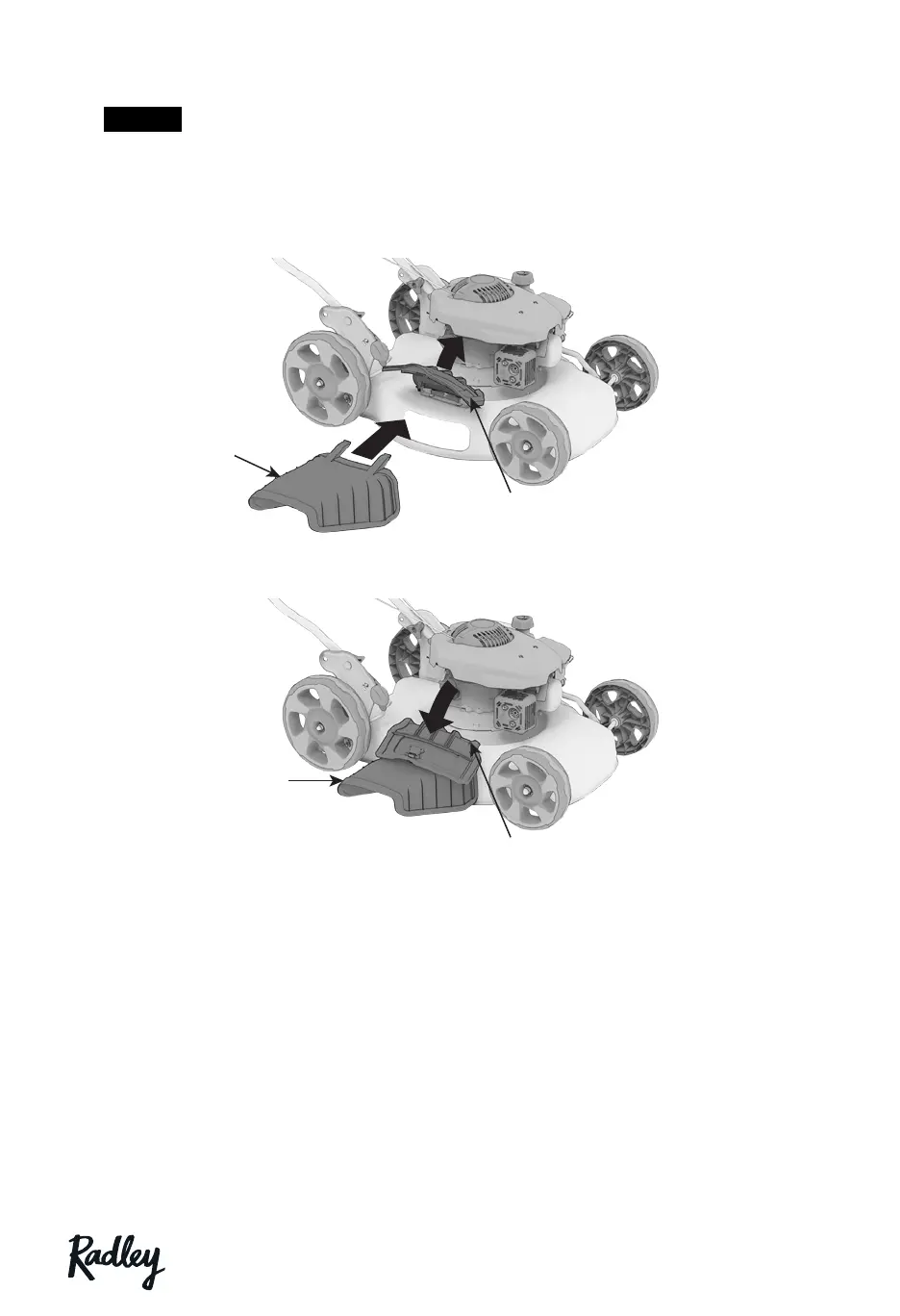

1. Lift the side discharge cover with one hand and hook in the side discharge
chute with the other hand.
2. Release the side discharge cover to secure the chute in position.
Side Discharge
Chute
Side Discharge
Cover
Side Discharge
Chute
Side Discharge
Cover
Side Discharge
Chute
Side Discharge
Cover
Side Discharge
Cover
Side Discharge
Chute
Side Discharge
Cover
To Next Page
