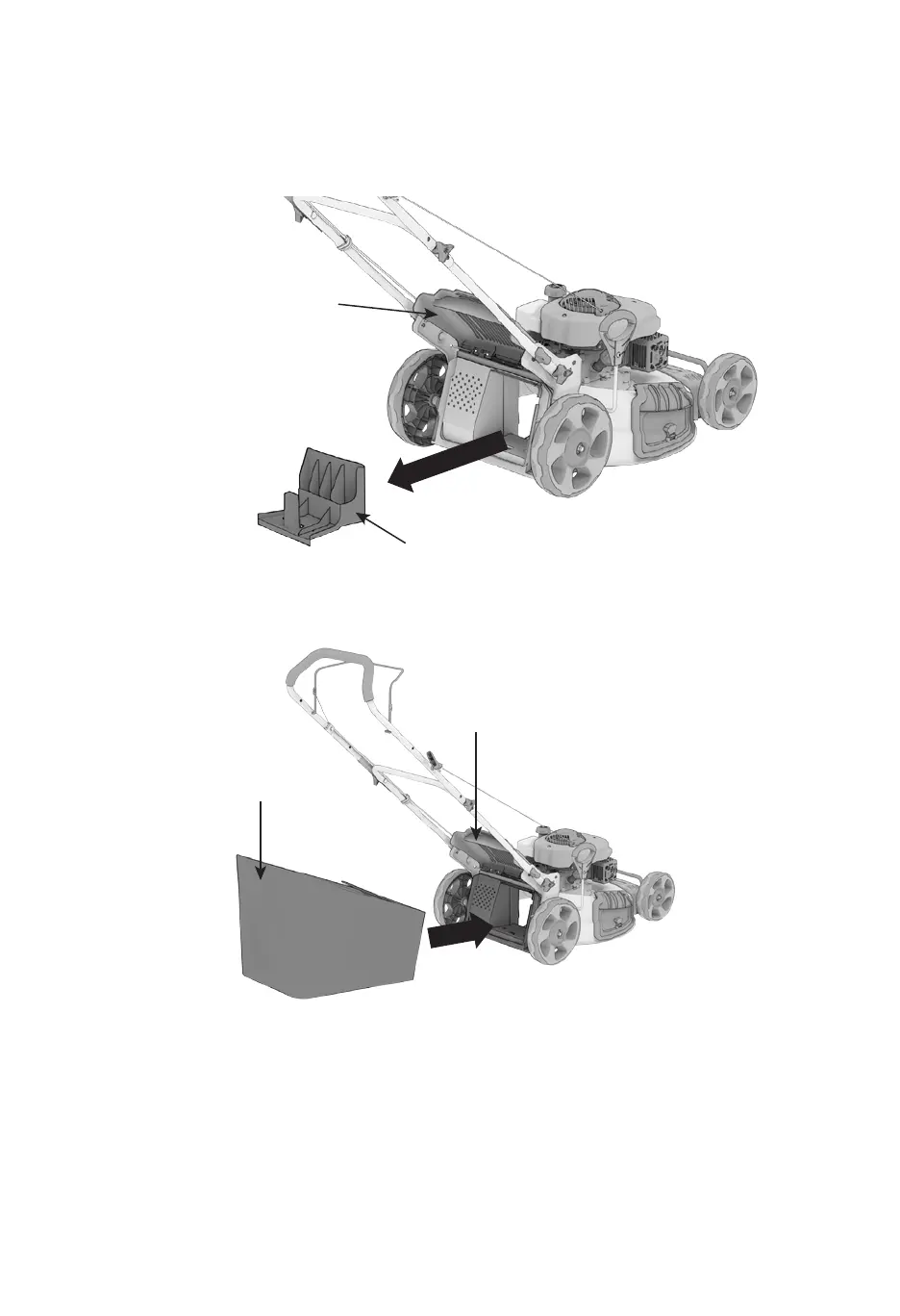

3.5 REMOVE OR KEEP THE MULCHING PLUG (HH0402, HH0404
ONLY)
Keep the plug installed for mulching, or remove when choosing to side or rear
discharge. If removed the plug can be stored for later use.
3.6 ASSEMBLING THE GRASS BAG (HH0402, HH0404 ONLY)
1. Clip the plastic clips of the grass bag over the metal frame and make sure
they are fully secured to the metal frame.
2. Lift the rear discharge cover with one hand and hook the grass bag to the
rear discharge chute. The connection may feel loose.
3. Release the rear discharge cover to secure the grass bag in position
Mulching Plug
Rear Discharge
Cover
Mulching Plug
Rear Discharge
Cover
Grass Bag
Rear Discharge
Cover
Recoil
Handle
Recoil
Handle Loop
To Next Page
