If using a filter vessel, the filter support plate must be connected to
the framework at this point.
Note: If a filter vessel is not being used, go straight to Section 6.1.4
– Assembling the manifolds and vessel support clamp (see page 10).
6.1.3 Assembling the filter support plate

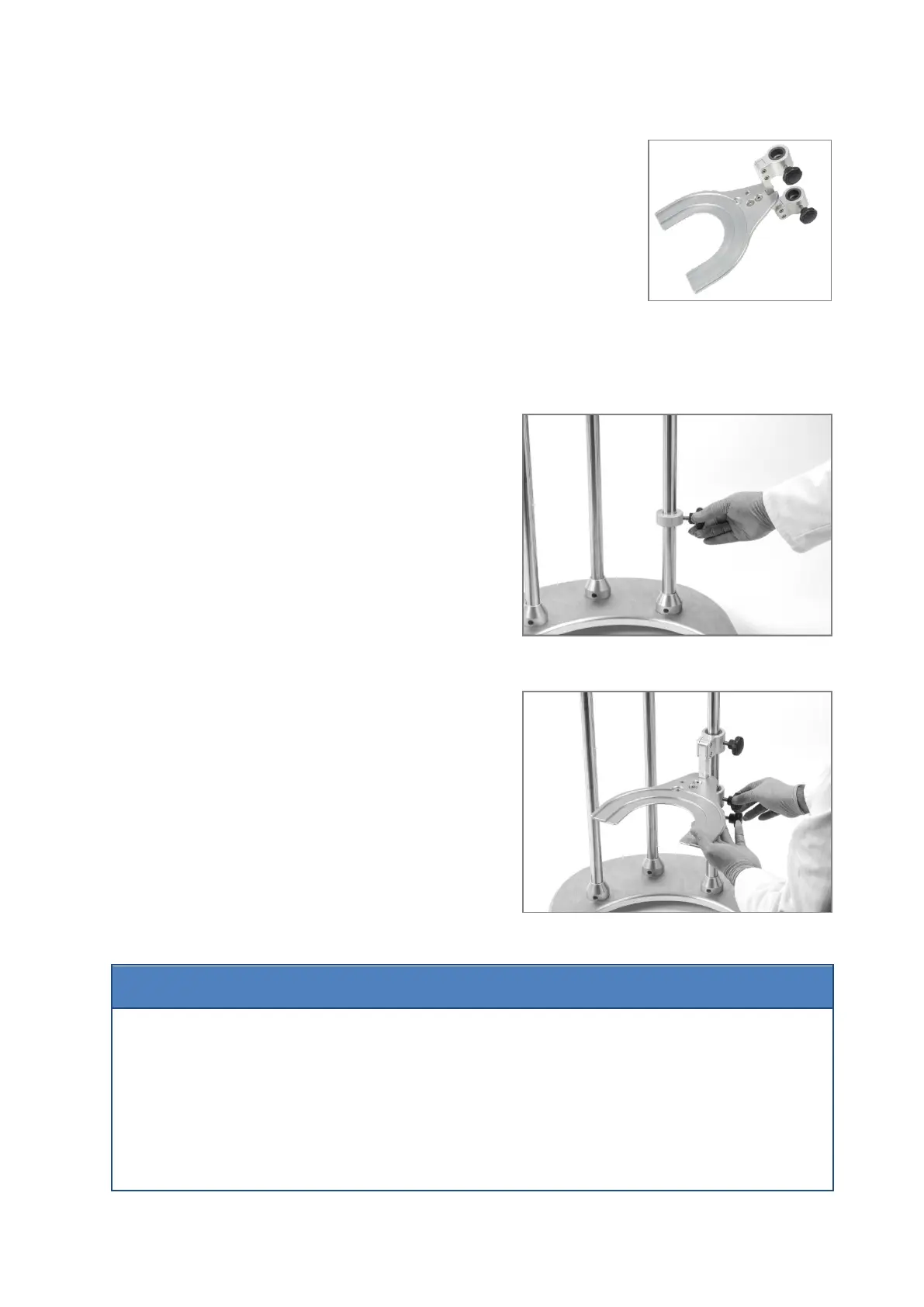

To connect the filter support plate to the
framework, first place a safety stop collar onto the
right-hand support rod and slide it down until it
almost reaches the bottom of the support rod.
Hand-tighten the locking knob to secure.
With the ridged side uppermost, lower the filter
support plate onto the right-hand support rod
and slide it down until it rests on top of the safety
stop collar.
Hand-tighten the two outer locking knobs to secure
the support plate in place.
Note: If necessary, the position of the support plate
and safety stop collar can be adjusted later, when
all the components are in place.
❖ The filter support plate is positioned towards the lower end of the support rod to allow enough
space above it for additional components, such as the filter plate, filter vessel and overhead
stirrer. It can be located on either of the side support rods, but it is recommended that the right-
hand rod is used, as this allows the most ergonomic alignment of hoses, vessels and other system
components.
❖ The safety stop collar limits the downward movement of the filter support plate.
