6.3.2 Assembling the Reactor-Ready filter core system

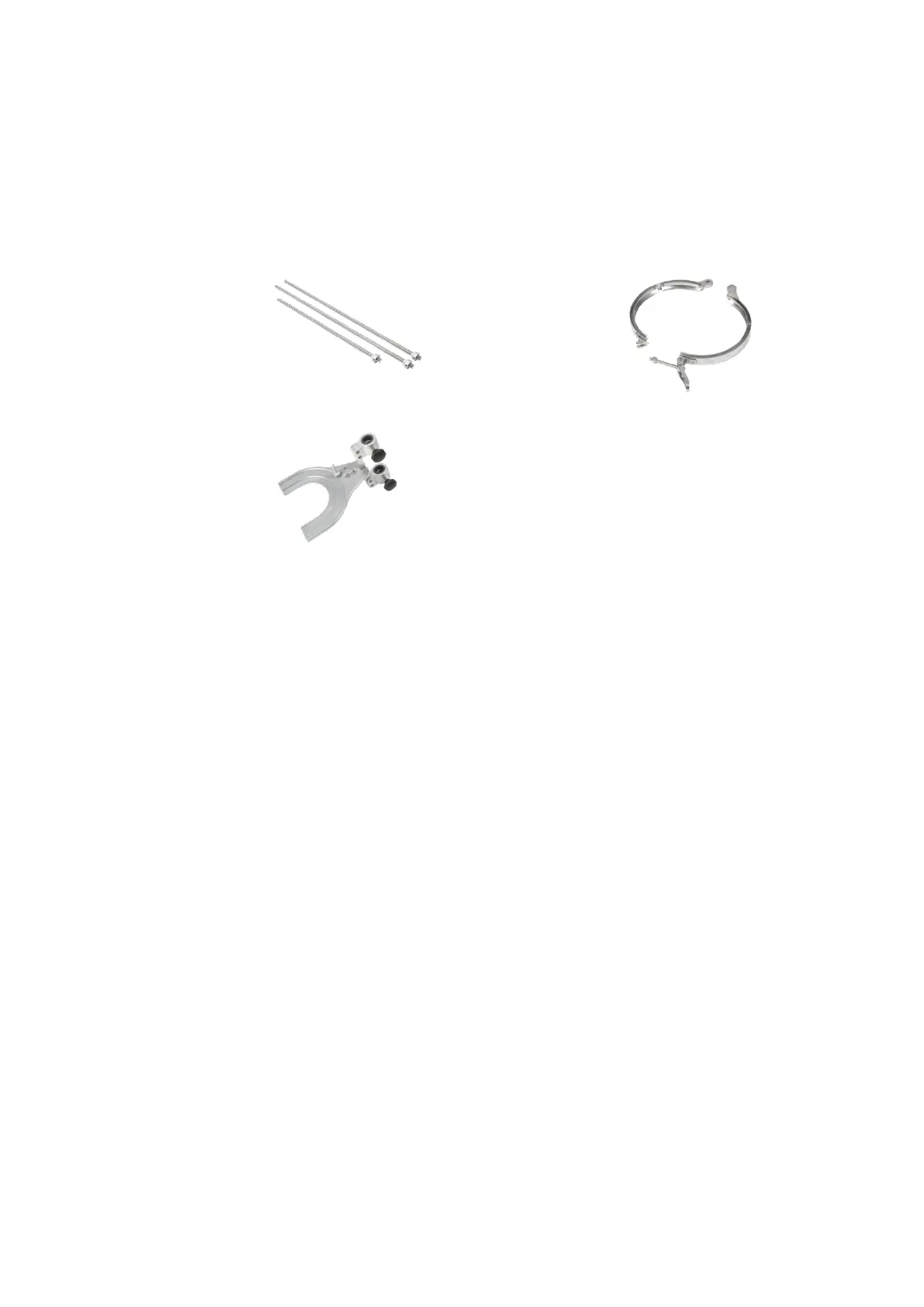

To assemble the filter core system, you will need all the dismantled components from your Reactor-
Ready core system, as well as the following Reactor-Ready upgrade components:
1180mm Extended
support rod kit
RR170015
Filter plate clamp
DN150
RR171004
Filter support plate
RR171002
Begin by screwing the three support rod bosses onto each of the extended support rods, as far as they
will go.
Now assemble the framework as described in Section 6.1 – Setting Up Reactor-Ready (see page 7), using
the Reactor-Ready upgrade components in conjunction with the original Reactor-Ready core
components.
