Radleys Reactor-Ready Lab Reactor - Set-Up Instructions for Filter Vessels Only

24
6.2 Set-up instructions for filter vessels only
6.2.1 Assembling the filter plate
Important information
→ Before starting assembly, ensure the filter plate is clean, and that the recess is free of any
residues or solid materials.
Useful notes
❖ Both PEEK and PTFE filter plates are available for different applications. See page 45 for more
details.

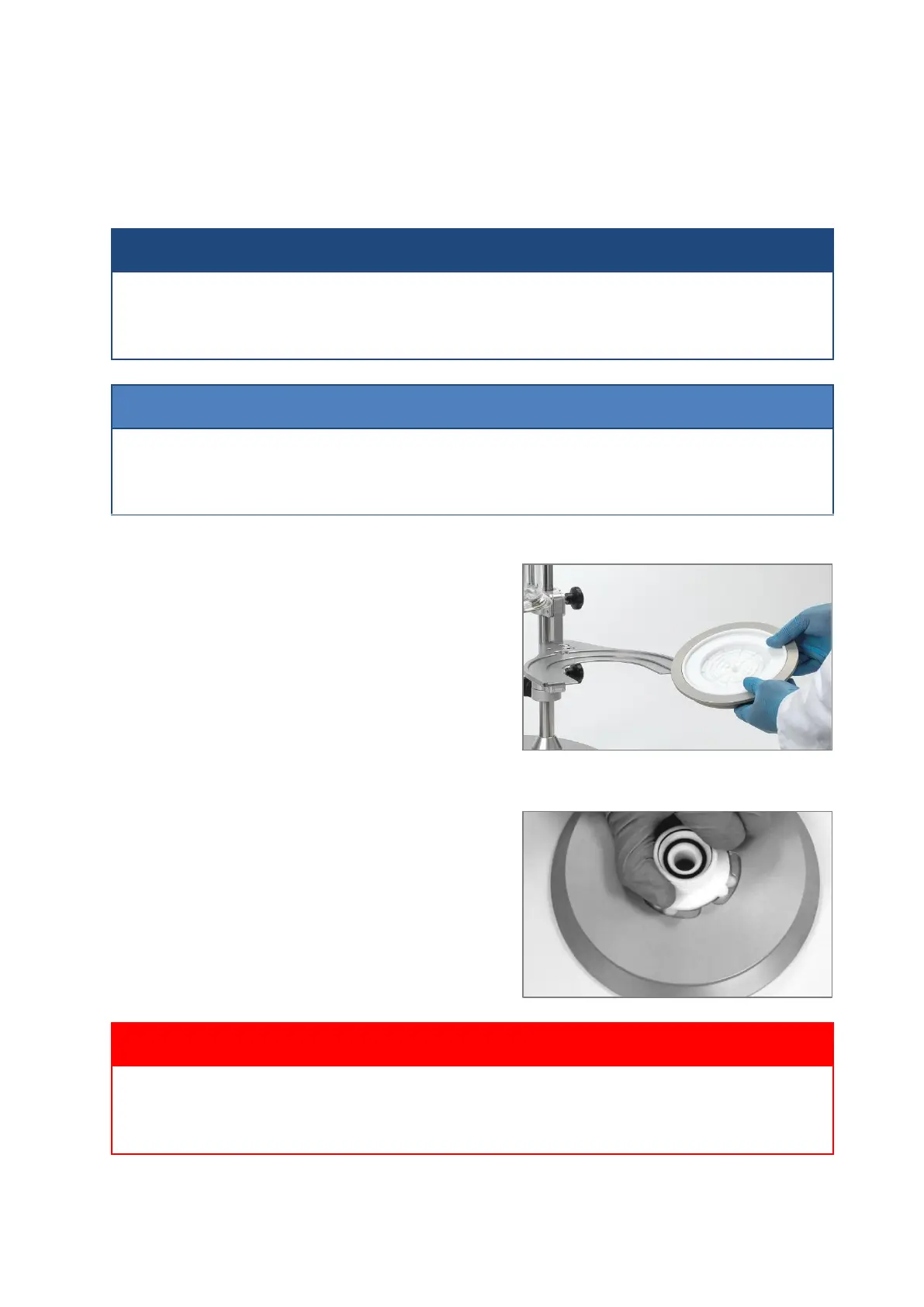

Step 1
Slot the filter plate into the aluminium filter cup,
ensuring that the lugs on the filter plate are aligned
with the recesses on the filter cup.
Invert the assembly and place on a flat surface.
Step 2
Now, carefully gripping the threaded section, gently
twist the filter plate to lock the components
together.
Warning!
 When locking together the filter plate and filter cup, take care not to damage the thread on the
filter plate.
