Radleys Reactor-Ready Lab Reactor - Component Guide; Reactor-Ready Core System Components

5

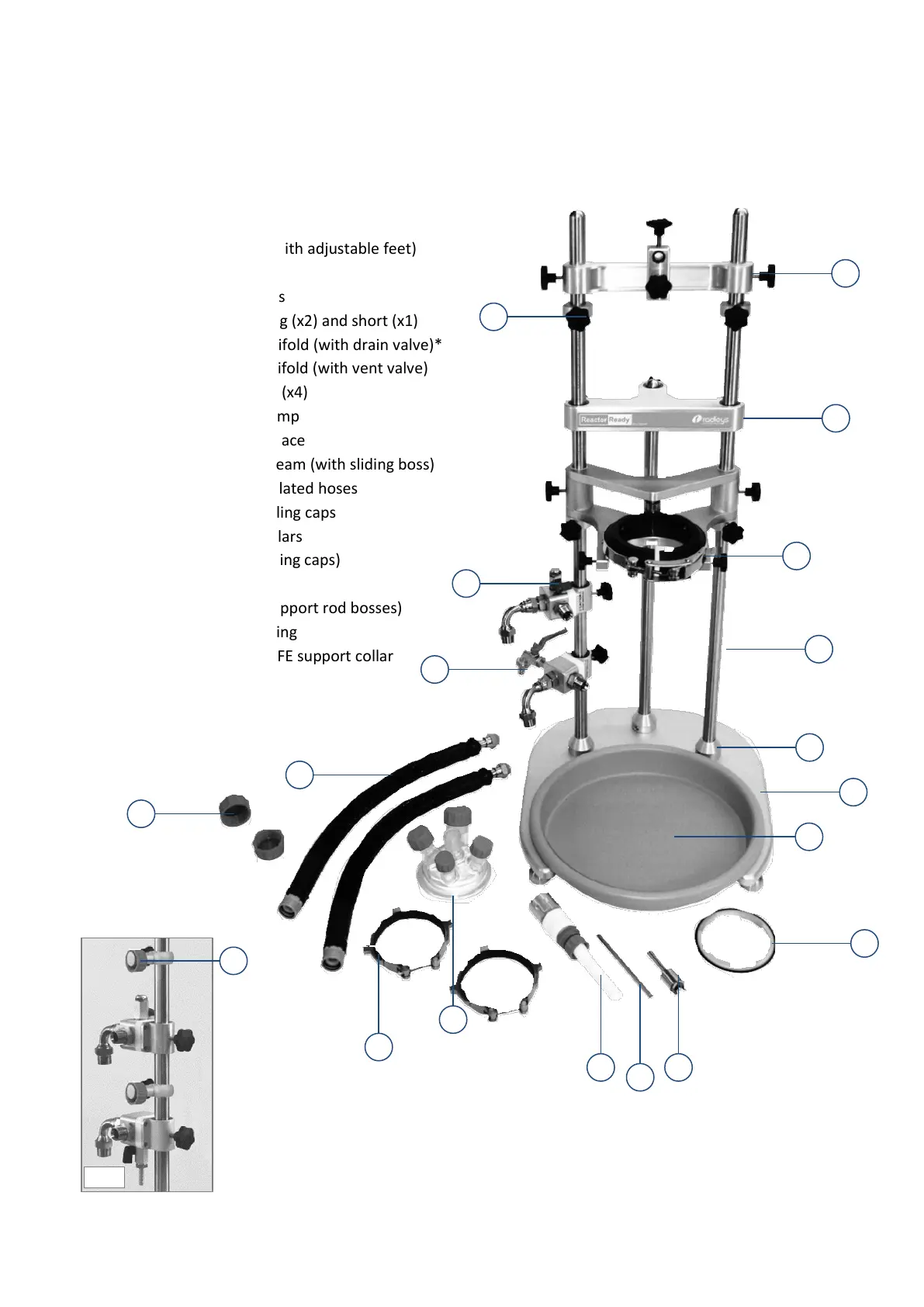

4 Component guide
4.1 Reactor-Ready core system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Aluminium base (with adjustable feet)
HDPE drip tray
Support rod bosses
Support rods – long (x2) and short (x1)
Lower supply manifold (with drain valve)*
Upper return manifold (with vent valve)
Safety stop collars (x4)
Vessel support clamp
T-beam support brace
Stirrer support I-beam (with sliding boss)
Quick-release insulated hoses
Rodaviss hose sealing caps
Vessel support collars
Glass lid (with sealing caps)
PTFE stirrer guide
Locking rod (for support rod bosses)
Stirrer drive coupling
O-ring seal and PTFE support collar
Hose tidies
* The lower supply manifold has been upgraded and now
features a more compact drain tap, as shown in Fig A.
