4.2. Unpacking
Cut the sealing tape. Take the balance out of the packaging. Open the box with
accessories and take the items necessary for correct balance operation. Upon
placing the balance in the desired location assembly its weighing pan and other
parts in accordance with the following instruction.

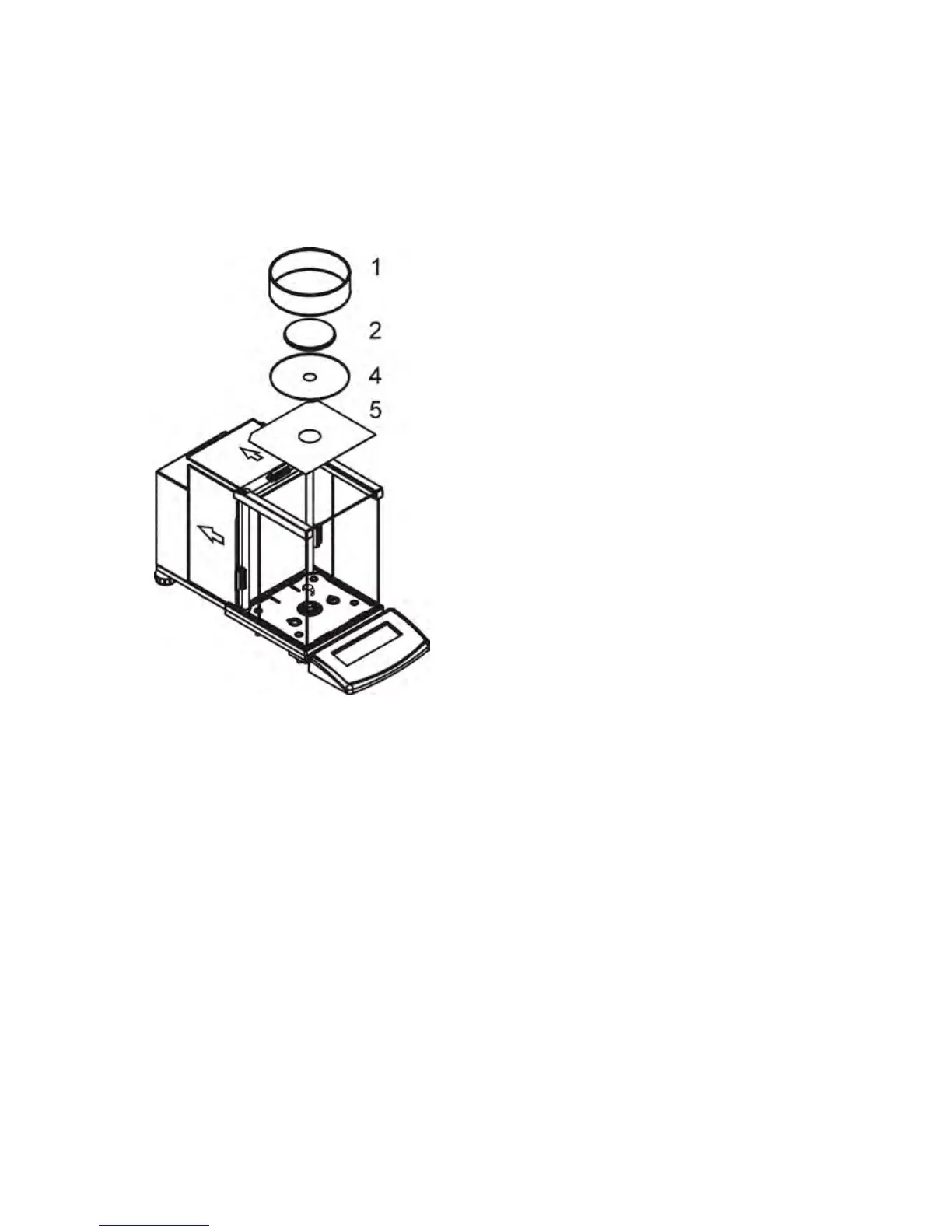

- open side doors of the weighing
chamber,
- inside the weighing chamber place
lower shield of the weighing
chamber (5),
- place centering ring (4) upon the
lower shield,
- assembly the weighing pan (1)
- assembly anti-draft shield (1),
- close side doors of the weighing
chamber,
- plug the balance to mains, pin of
power adaptor should be connected
to socket located in the back of
