RADWAG X2 Series

- 11 -
AS X2.PLUS
•
remove a transport lock (1) – gently press the transport lock and turn it accordingly to
<OPEN> instruction, keep the transport lock should your balance be transported in the
future.

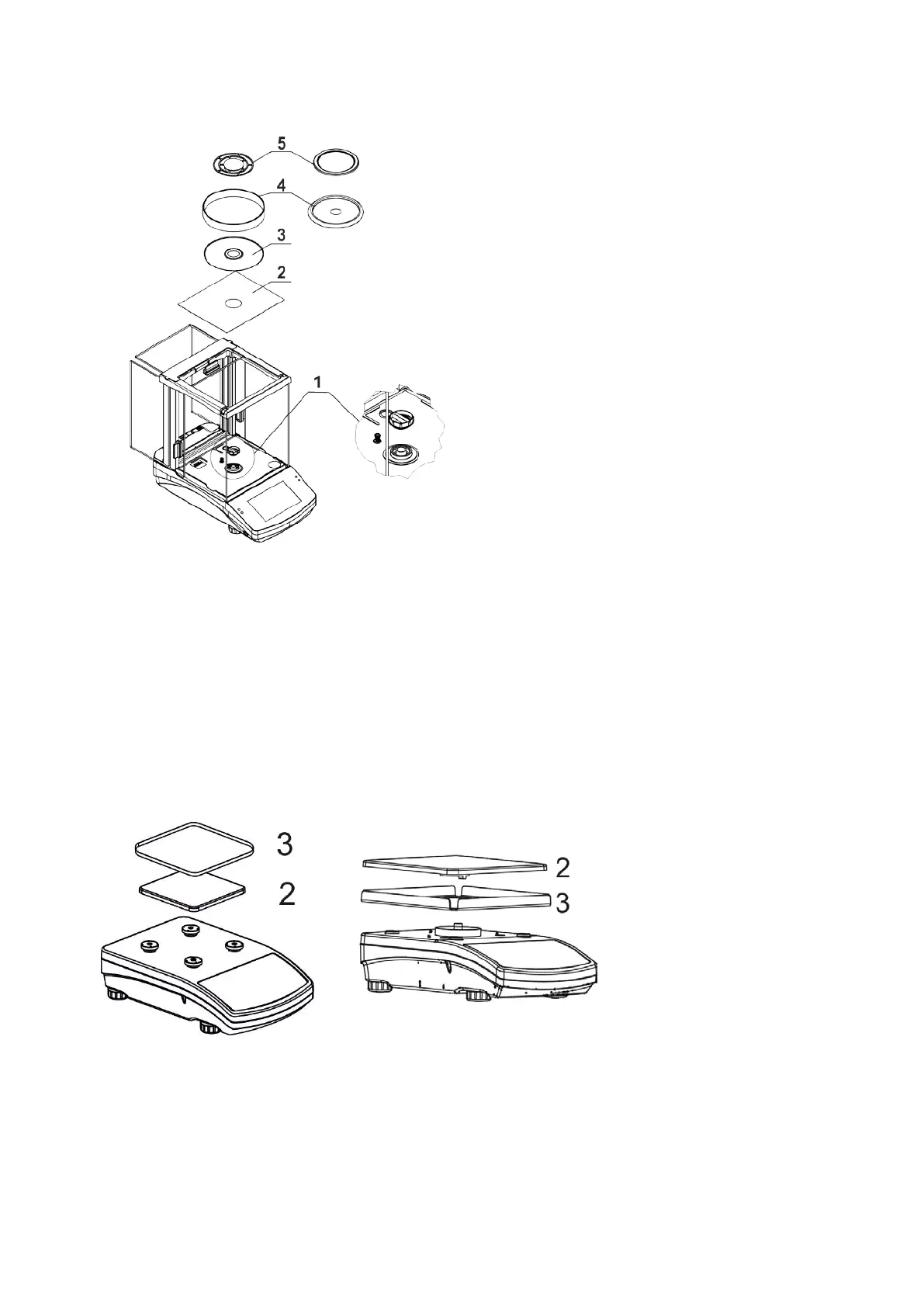

• Install components following the above diagram:
• bottom insert (2),
• centring ring [embossment side up] (3),
• weighing pan (4),
• draft shield (5).
CAUTION! AS balance with d=0,01/01mg is equipped with 2 weighing pans (standard and open-work).
Remember to calibrate the balance upon changing the pan.
PS 200/2000.X2-PS 1000.X2 PS 2100.X2-PS 10100.X2
• remove tape protecting the grounding spring, located on one of the rubber mandrels
• install components following the above diagram:
• weighing pan (2),
• draft shield (3).
