ESP-LX+ & LXi+ Installation, Programming, & Operation Guide
➎

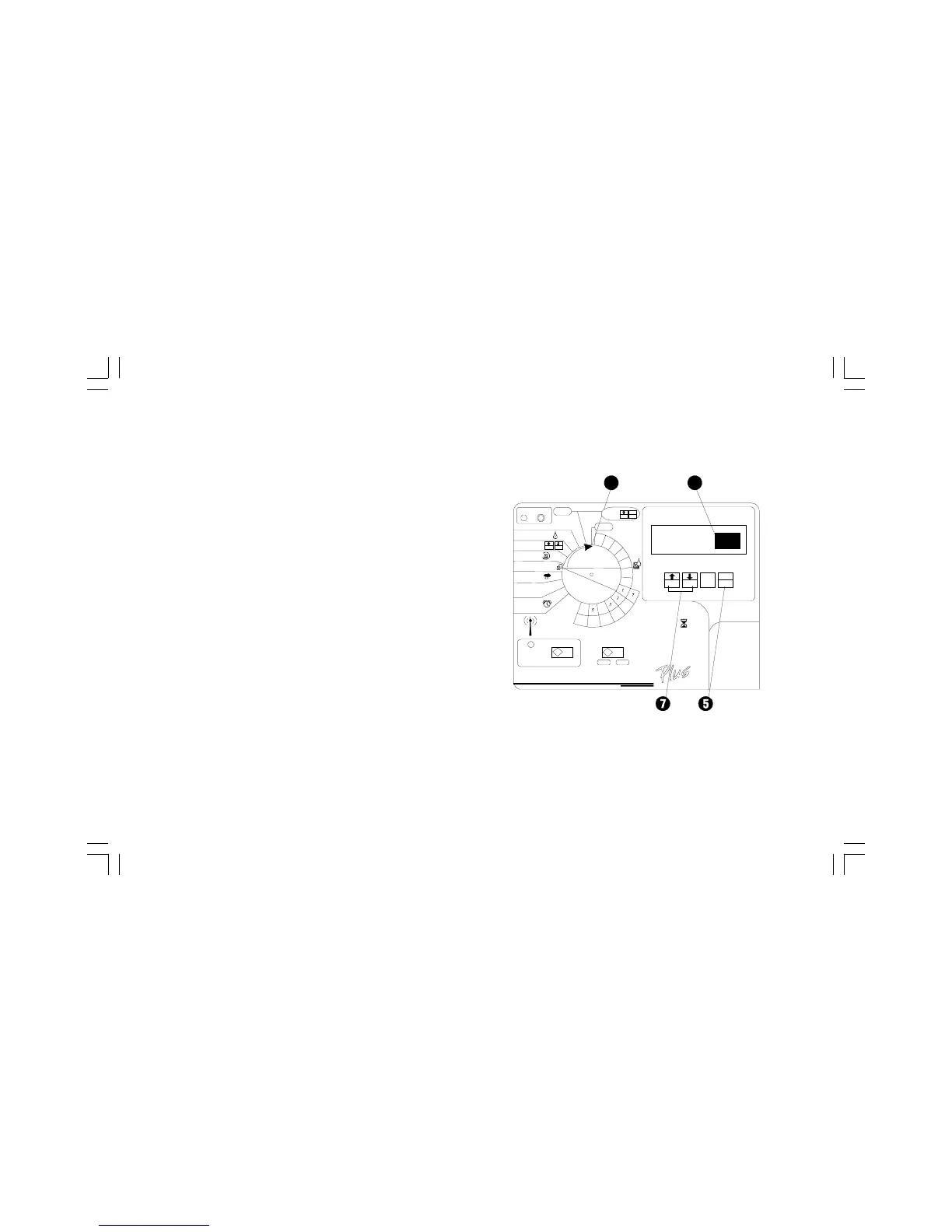

Press
MAN.
START/AD
V
.
➏
The ON
or OFF
setting
flashes.
➐
Press
ñ
to set the
day ON or
ò
to
set the day OFF
.
➑
T
urn
the dial
to
AUTO. When an
OFF
day occurs,
the
display shows NON (for non-watering day),
and no
watering occurs. The next
time the date occurs,
normal
watering schedules will resume
(except for the 31st of
the
month, which remains OFF
until you reset it
manually).
32
34
Table of Contents
Table of Contents
3
Introduction
5
LX+ and Lxi+ Series Controllers
5
Controller Stations
5
Station Layout
6
Controls, Switches, and Indicators
7
Programming the Controller
9
Definitions
9
Programming under Battery Power
9
Programming Checklist
10
Default Chapter
11
Ill out Programming Chart
11
Clear All Program Information
13
Set Time
14
Set Time and Date
14
Set Date
15
Select Program
16
Select Program (A, B, C, or D-Drip)
16
Set Watering Day Cycle
17
Custom
17
Cyclical
19
Odd/Even Cycle
21
Set Station Watering Times
22
Set Program Start Times
24
Set Program Start Time(S)
24
Set Water Budget
26
Set Water Budget (Optional)
26
Set Station Delays
27
Set Station Delays (Optional)
27
Set Master Valve / Pump Starts for each Station (Optional)
29
Set MV / Pump Starts
29
Set Rain Delay
31
Set Rain Delay (Optional)
31
Set Calendar Day(S) O
32
Set Calendar Days O
32
Set Sensor System and Bypass Switch
34
Set Sensor System and Bypass Switch (Optional)
34
Operating the Controller
36
Operate Controller Automatically
36
Set Controller to Automatic Operation
36
Run Program(S) Manually
37
Run Station(S) Manually
38
Run Test Program
39
Run Test Program (Optional)
39
Rapid Station Test Routine — Raster™
40
Introduction
40
RASTER Operation
41
Running a RASTER (Rapid Station Test Routine)
41
Valve Testing
43
Troubleshooting Open and Shorted Valve Circuits
46
Open Circuits
46
Short Circuits
47
Installation Checklist
48
Installing the Controller
48
Installation Checklist
48
Select Location
49
Remove Door and .Ace Panel
51
Remove Door and Face Panel
51
Mount Controller on Wall
53
Connect .Ield Wires
55
Ield Wire Entrances
55
Connect Field Wires
55
Station Valve Wiring
56
Master Valve Wiring
56
Sensor System Wiring
57
Connect Sensor System (Optional)
57
Pump Start Relay Wiring
58
Connect Main Power Wires
59
ESP-LX+ (Outdoor / Indoor Controller)
59
ESP-Lxi+ (Indoor Only Controller)
63
Install Battery
65
Diagnostic Circuit Breaker
67
