61ESP-LX+ & LXi+ Installation, Programming, & Operation Guide

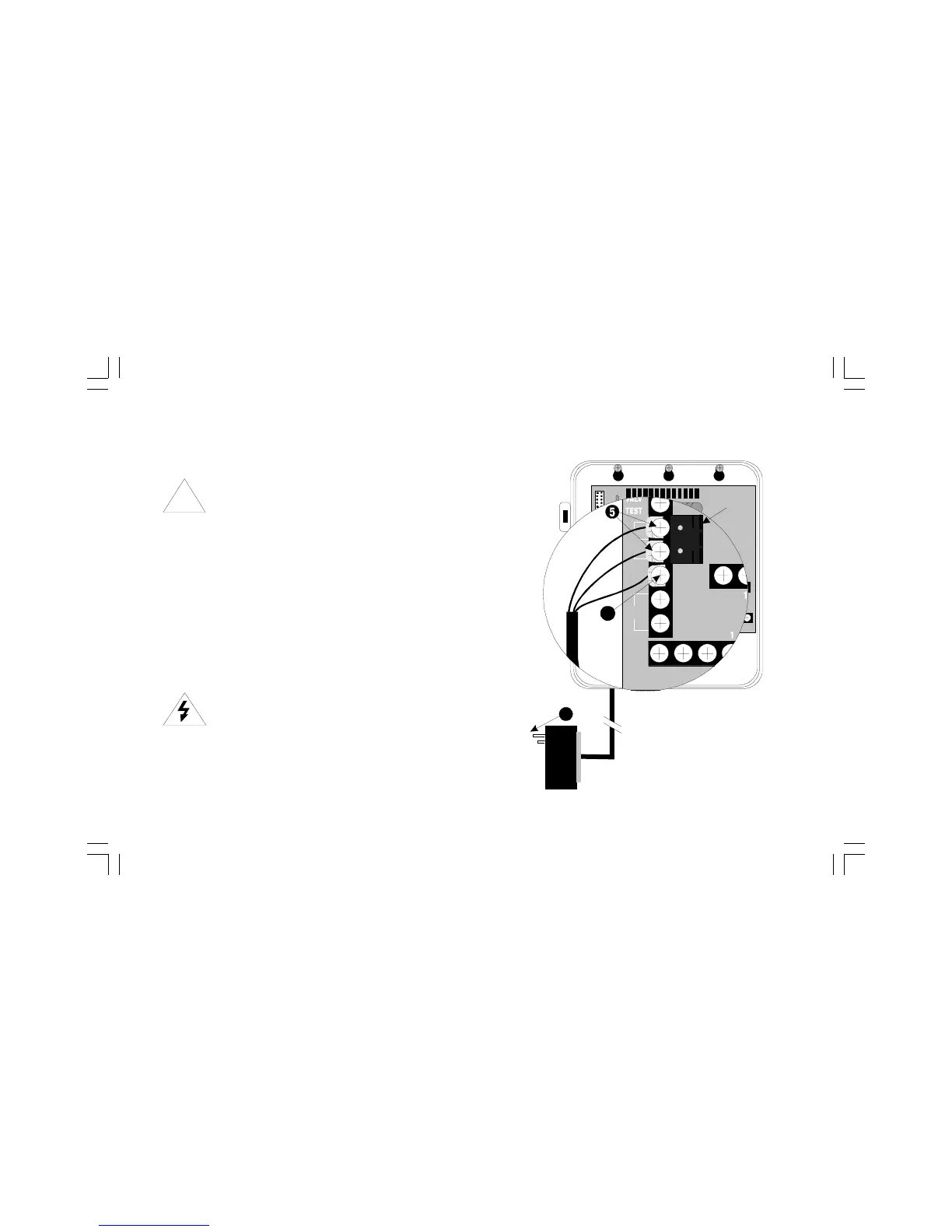

➍ On the vertical terminal strip, connect the green forked
wire to the terminal labeled GND.
NOTE: The green ground wire MUST be connected
properly to provide electrical surge protection.
➎ Snap open the protective cover and connect one of the
remaining two forked wires to one of the terminals labeled
24VAC. (In some units, these two terminals are labeled
ORN.) Connect the last forked wire to the other terminal
labeled 24VAC. Polarity of these two wires is not impor-
tant. You may connect either wire to either terminal. Then
close the protective cover.
➏ Verify that all connections are secure. Then plug the
transformer into any standard three-prong grounded
117VAC electrical outlet.
CAUTION: To prevent electric shock, match the wide
blade of the plug to the wide slot, fully inserted.
cover
Protective
