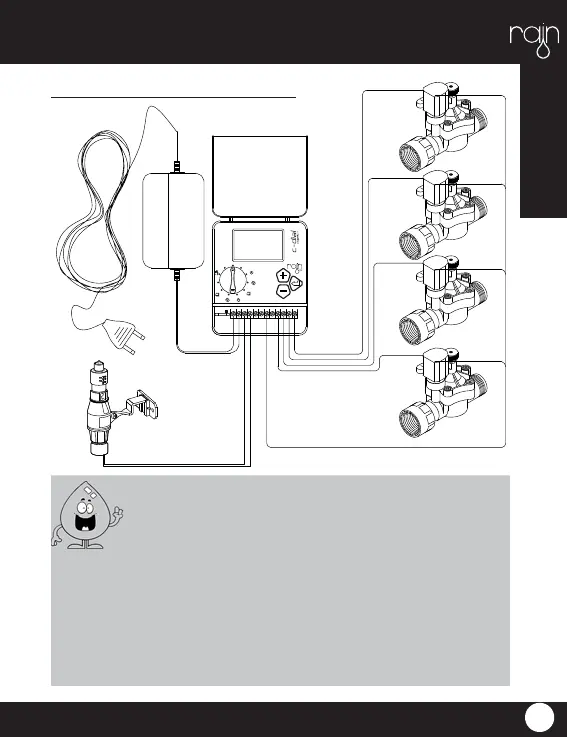

Each 24 VAC electric valve is equipped with two black
cables. The fi rst one identifi es the number of the area
and is to be connected to of the outputs numbered in the
terminal compartment. The second one is the common
cable that will be connected to the Exit C in the terminal
compartment along with other common cables of all
electric valves.
The cables of the 24Vac electric valves have no polarity.
Connect the rain sensor wires cables to the output marked
SENSOR in the terminal compartment.
If using the INDOOR model, connect the transformer’s
cables to a 24-vac input.
OFF
OFF
OFF
OFF
OFF SET
AUTO
%
P
R
O
G
R
A
M
A
P
R
O
G
R
A
M
B
ELECTRICAL CONNECTIONS
