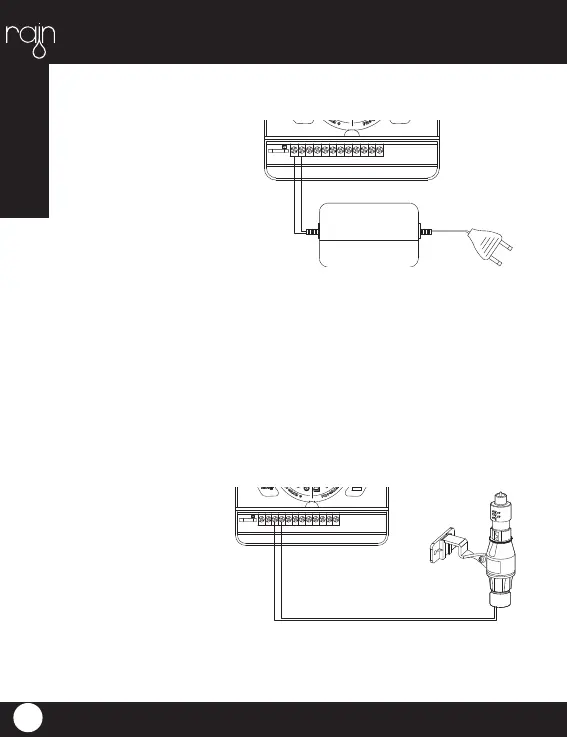

CONNECTING THE TRANSFORMER
• With the wiring terminal
shroud off, fi nd the two terminal
holes labeled “24vac”.
Make sure the transformer is not
plugged in. Insert one of the
two power leads
from the transformer into each
terminal.
• It will be necessary to open
the terminal to allow for wire
insertion or removal.
To do this you will need to use a small phillips head screwdriver.
• Plug in transformer
WARNING: DO NOT LINK TWO OR MORE TIMERS TOGETHER WITH
ONE TRANSFORMER.
• Slide the shroud back on.
RAIN SENSOR
A rain sensor or other
type of micro-switch
weather sensor may be
connected to
the controller. The rain
sensor will pause the
programs during rain
fall - preventing over
watering.
