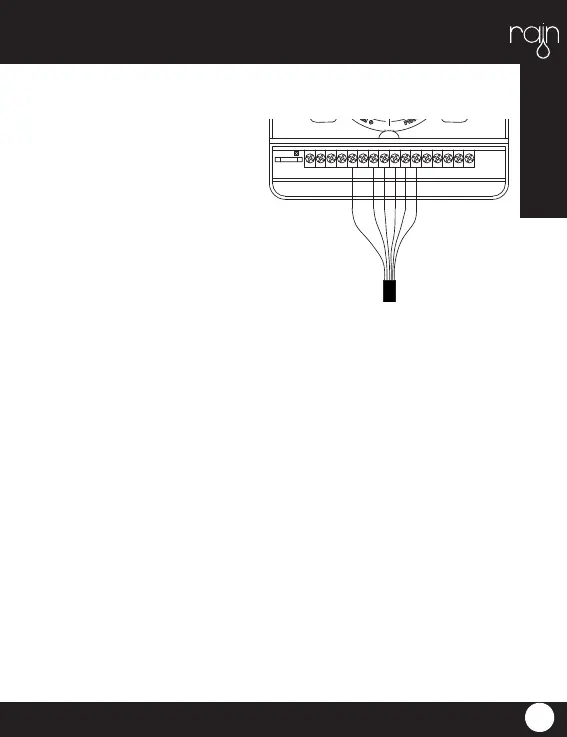

CONNECTING VALVE WIRES TO THE TIMER
• Remove the terminal compart-
ment cover.
• Strip _” (6mm) of the plastic in-
sulation off the end of each wire.
• Determine which valve you want
to connect to which station. Con-
nect each valve wire to its station
terminal (labeled 1-6) by inserting
the bare wire fully into
the terminal.
• It will be necessary to open the
terminal to allow for wire insertion
or removal.
To do this you will need to use a small phillips head screwdriver.
• Connect the common wire to the terminal labeled “com”
