How to Replace the Thermocouple – V1.0 Date:07/27/2020
- 4 / 17 -
www.raise3d.com

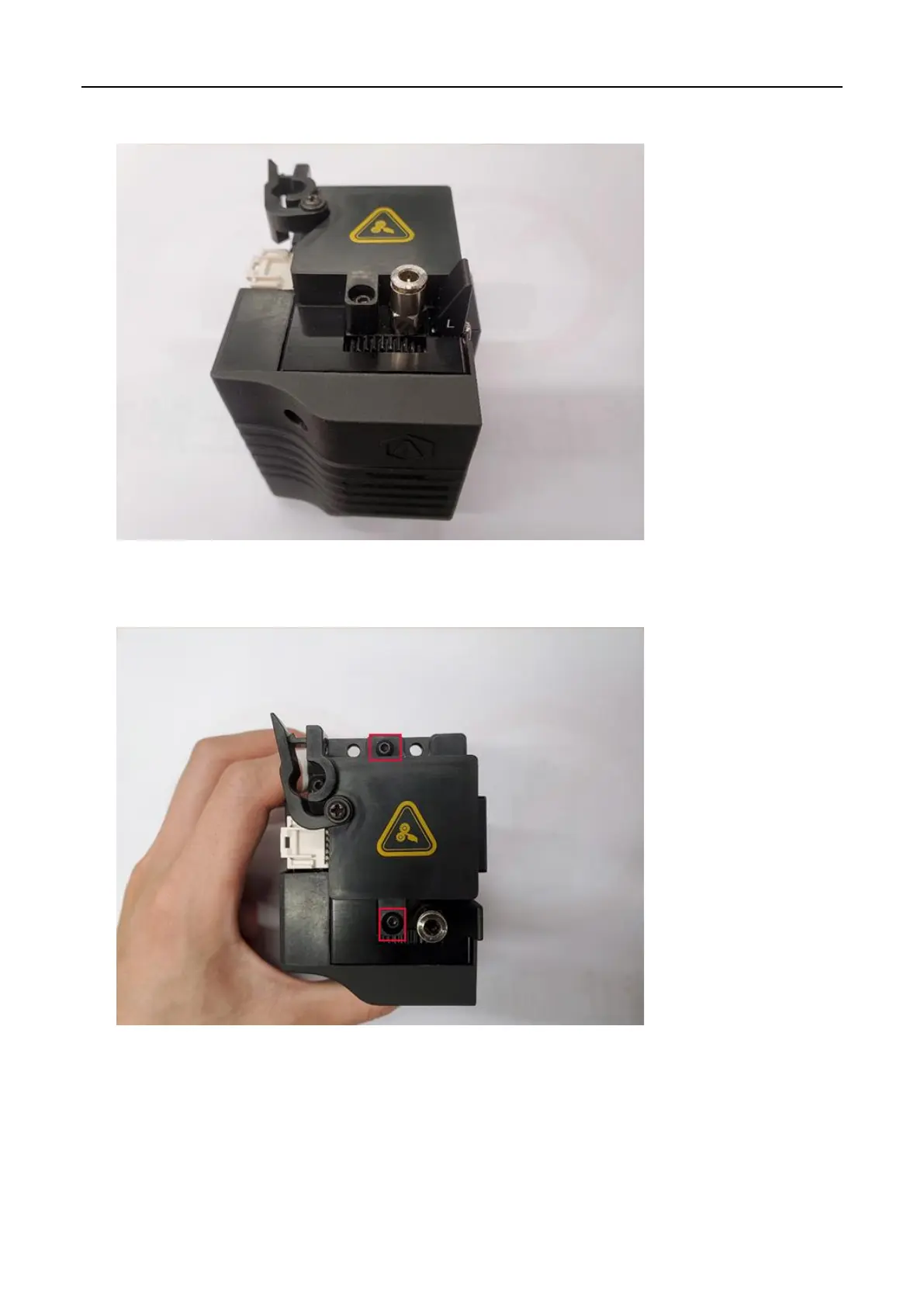

6. Remove the extruder from X-axis, and put it on a working desk.
7. Use a 2mm hex wrench to remove the two screws retaining the extruder connection board
cover to the extruder, and remove the extruder connection board cover.
