How to Replace the Thermocouple – V1.0 Date:07/27/2020
- 3 / 17 -
www.raise3d.com

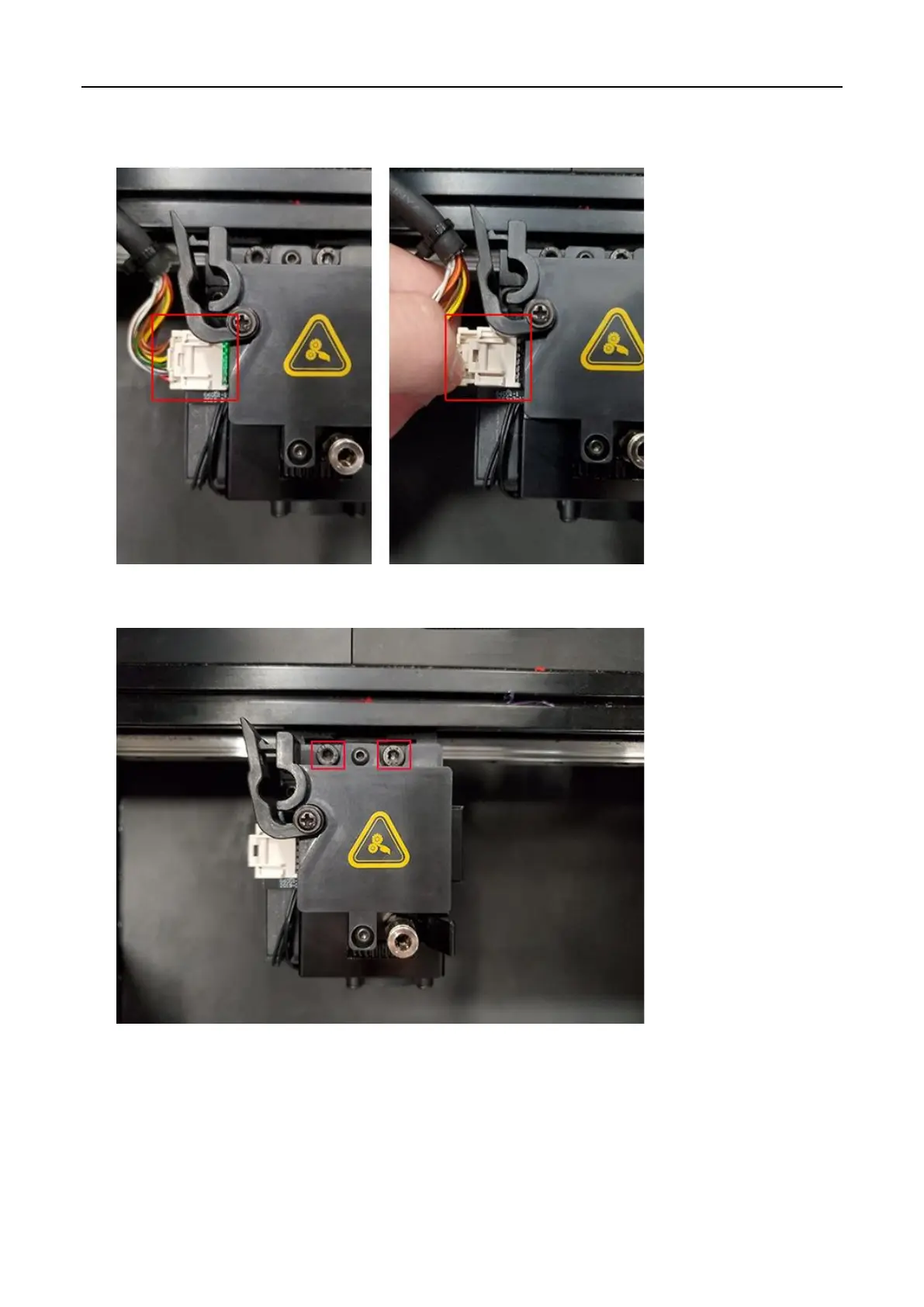

4. Remove the extruder connection cable from the board by pressing the small plastic
connector down, and gently pulling the connector out.
5. Use a 3mm hex wrench to remove the two screws retaining the extruder on the X-axis.
