Ralco MTR 221/A - TRANSVERSAL CALIBRATION (CROSS); GC-LED-5 A BOARD

MTR221/A - MTR221/A DHHS
MANUALE ISTRUZIONI / INSTRUCTION MANUAL
Modello/Model R221/A - R221/A DHHS
OPTIONAL ITEMS
48
R221/A - R221/A DHHS - Optional Items
Ralco srl

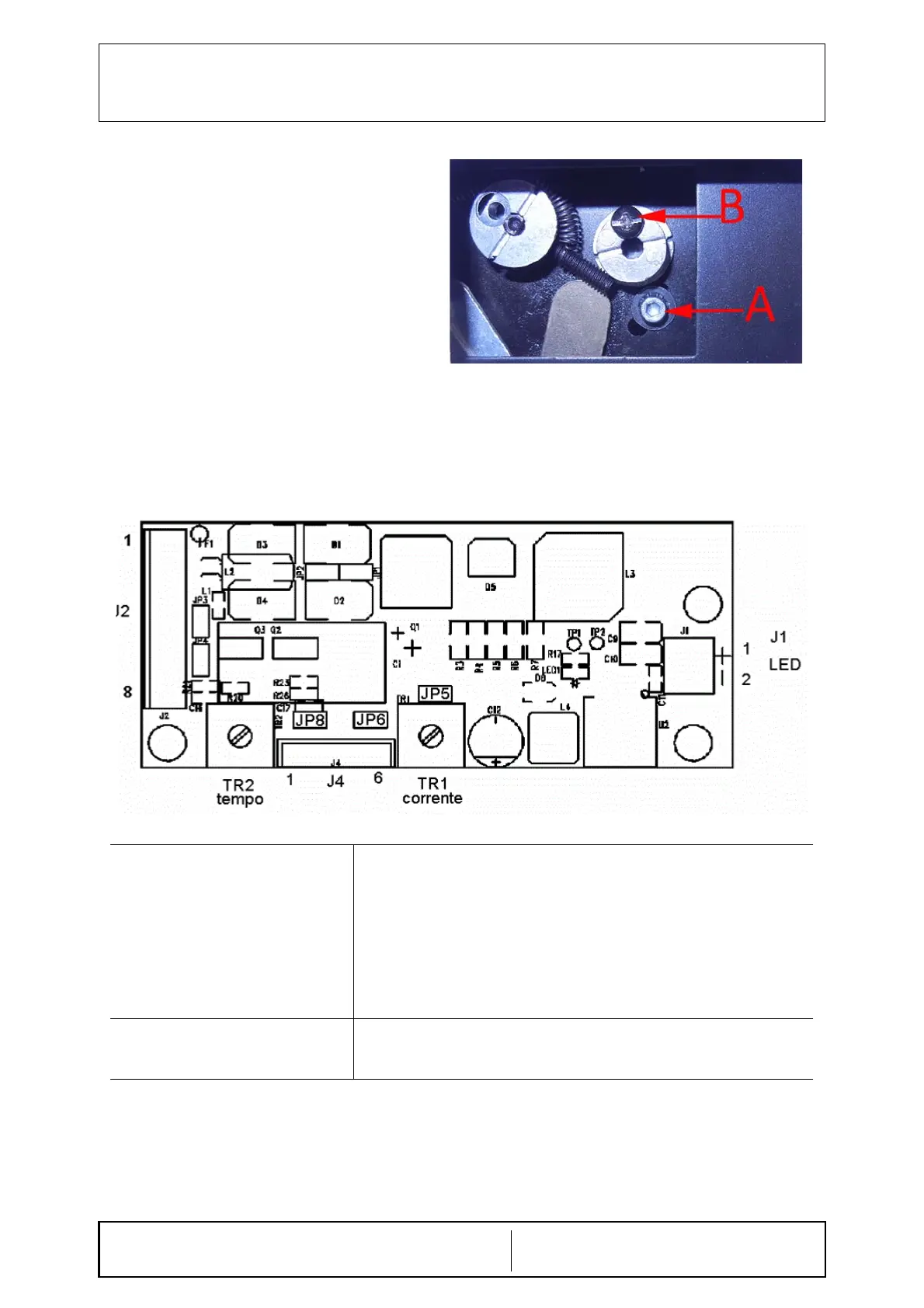

Transversal Calibration (CROSS)
If the light-field needs calibration, the
mirror needs to be adjusted as follows:
• Remove the part of the cover neces-
sary to access the screws, see Chap-
ter - C
OVER REMOVAL.
• Loosen the mirror fixing screw A (not
remove) and shift it to adjust the posi-
tion of the mirror, see Fig. Transver-
sal Calibration (CROSS).
• Once you have regulated the mirror
tighten the screw A and remount the
cover, see Chapter - C
OVER REMOVAL.
GC-LED-5A
C
ONNECTORS
J2 - SUPPLY AND OUTPUTS
1. 20-30 V AC or 12-45 V DC
2. 20-30 V AC or 0 V DC
3. +5 V Fan
4. GND Fan
5. +5 V Laser
6. GND Laser
7. + Power-up/Power down external push-button
8. GND Power-up external push-button
J1 - LED OUTPUT
+ LED 5 A positive output
- GND Led 5A
Fig. Transversal Calibration (CROSS)
