SECTION 2 - GUIDE RAILS AND CROSS BRACES.

Page 2-5

Rev 1A – Oct. 2003

2.5

Install the remaining guide rails, cross brace, upper

counter weight guides, and wall mounting brackets (FIG.

5). Leave all bolts loose.

NOTE: Do not use washers for the bolt heads on the

outside of the guide rails.

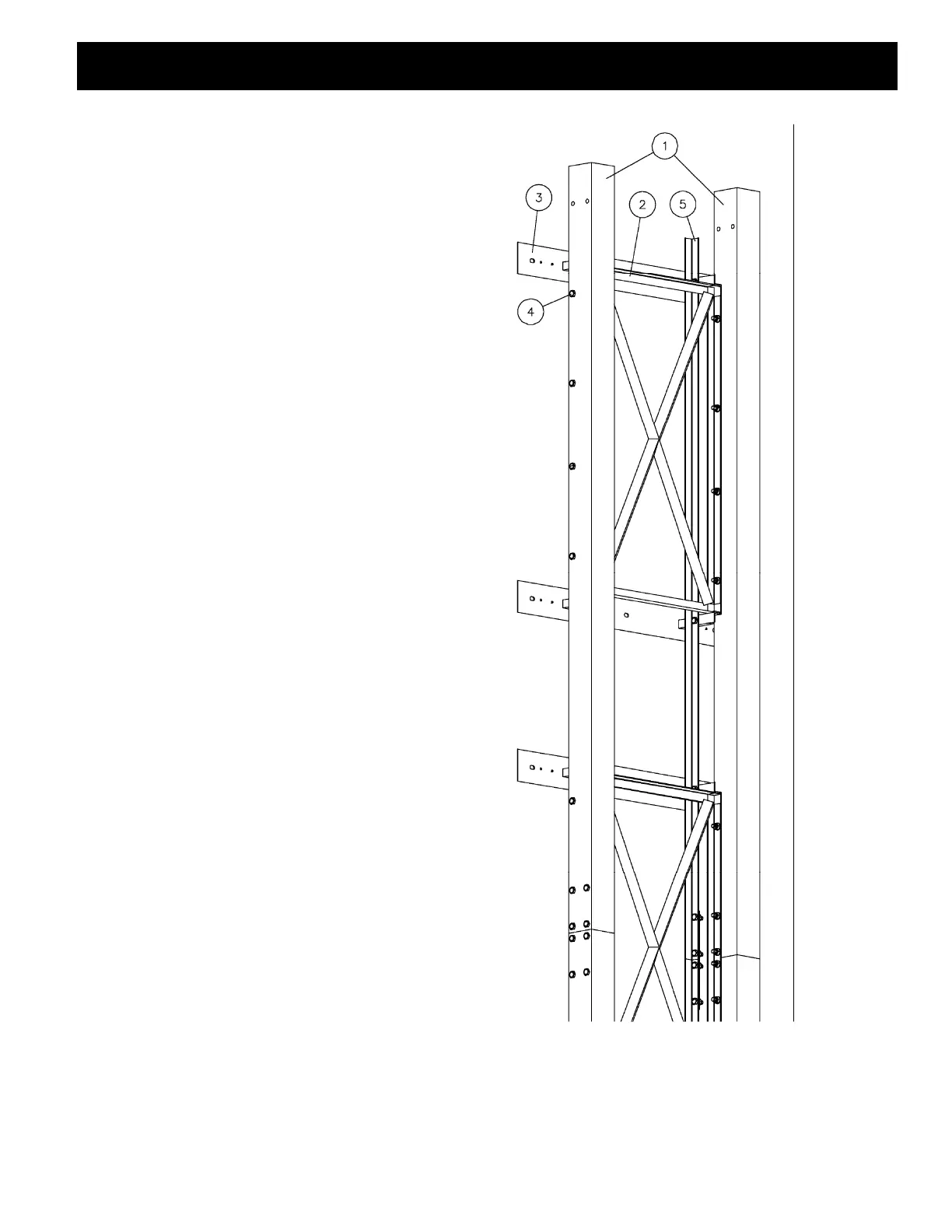

Figure 5. Installation of the upper guide rails, cross

brace, upper counter weight guides, and wall

mounting brackets. Looking from in front of the

guide rails.

NOTE:

MATERIAL LIST PART #

1. Upper guide rails FFBUG011

2. Crossbrace support (4 hole) FFBUG003

3. Wall mounting bracket FFBUG008

4. 7/16 N.C. x 5 bolt PGAGF014

5. 7/16 N.C. x 2 1/4 PGAGF020

6. Upper counter weight guides FFBUG012
