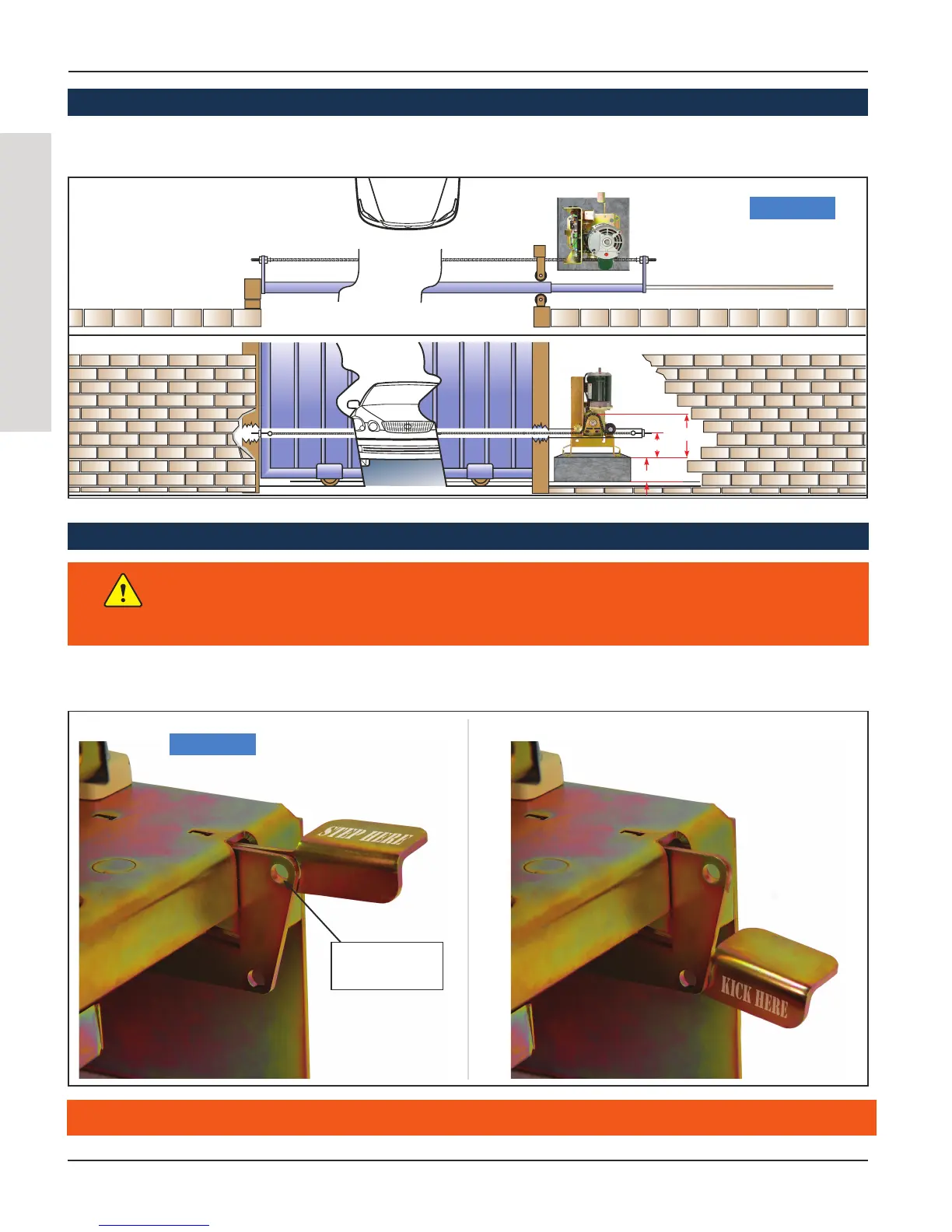

RAMSET RAM 100 - RAM 100 Front Installation and Foot Pedal Operation; Foot Pedal Release Operation

8
RAMSET
www.ramsetinc.com
RAM 100 • 1000 • 5500
FOOT PEDAL RELEASE
RAM 100 FRONT INSTALLATION
FRONT INSTALLATION
GATE SHOWN Closed
Tail on gate required
TAIL WALL
5 3/4”
4” min
10”
Figure 4
After proper use of the foot pedal, be sure to lightly kick the pedal towards the right side to spring the pedal up and re-
engage your gate.
RAM 100 IS FOR FRONT INSTALLATION ONLY. FOR CENTER OR REAR INSTALLATIONS A RAM
1000/5500S IS NEEDED.
NOTE: Your operator will not respond until your gate is properly engaged.
Gate Disengaged
Figure 5
Gate Engaged
Padlock
(optional use)
We do not recommend use of the foot pedal on installations with steep inclines. Always make
sure the gate is secured when using the foot pedal to avoid sudden movements from the
gate. Make sure to show the end-user proper safety precautions when using the foot pedal.
WARNING
