RAM 100 • 1000 • 5500

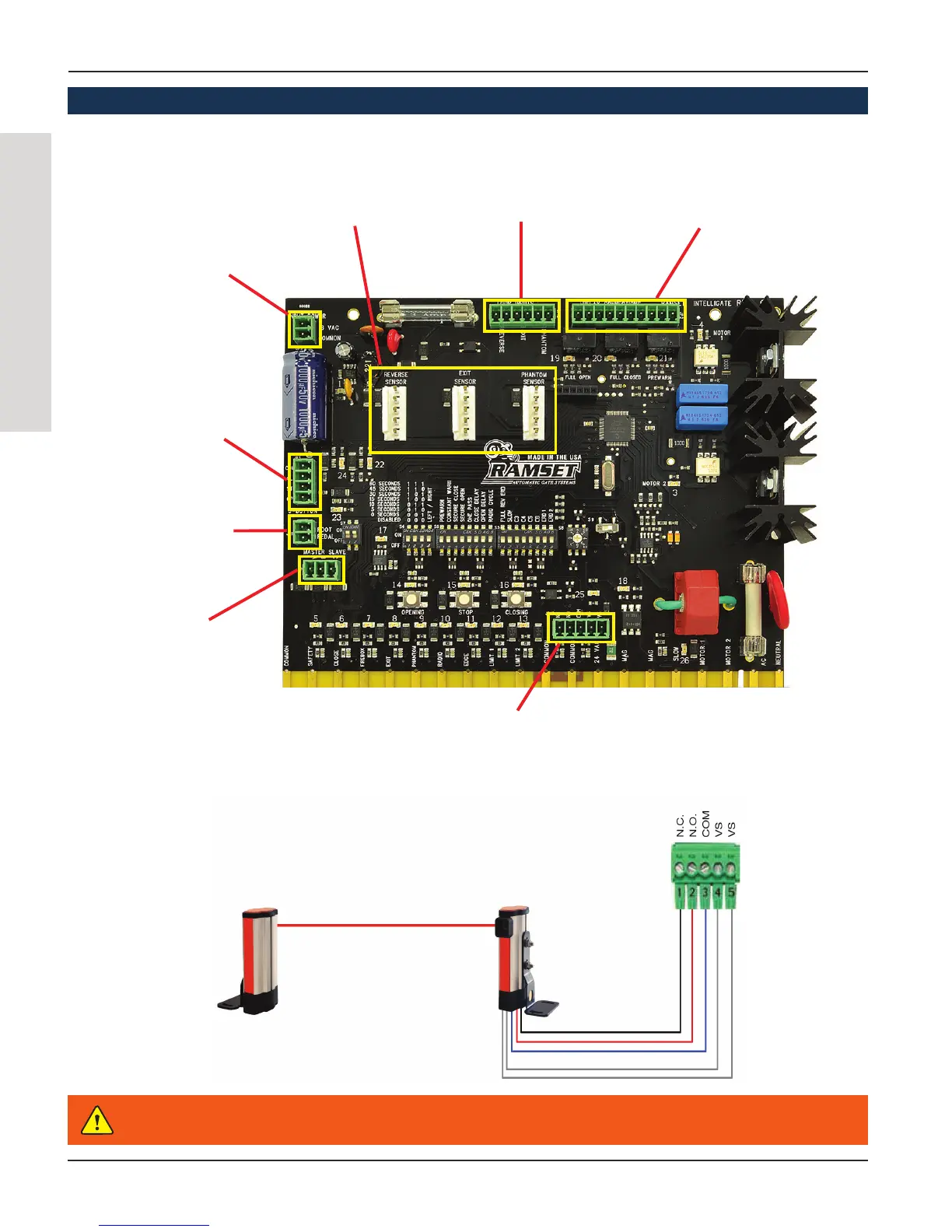

PLUG CONNECTIONS
Relay Connections
Lights, Alarms & Sirens
Loop Inputs
Loop wires - only used
with the plug-in RLD-24
detectors
Plug In Detectors
Used with the RLD-24
detectors only
Input Power
18VAC from the
transformer
3-Button
Common, Close, Stop
& Open. Used with 3
buttons station
Primary/Secondar y
Connection
Synchronizes movement
between two gates. 3
wires (A, B & C)
Monitored Anti-
Entrapment Device
Mandatory entrapment
protection device
APPROVED ANTIENTRAPMENT DEVICES:
 MILLER’S EDGE “PRIMEGAURD
 MILLER’S EDGE “REFLECTIGAURD”
 MILLER’S EDGE “WIRELESS EDGE LINK”
 MILLER’S EDGE “THE SOLUTION”
 EMX ”IRBMON”
Foot Pedal
Foot pedal switch input
WARNING
Never try to bypass or tamper with an anti-entrapment safety device. This may
result in serious injury.
