RAMSET RAM 100 - General Specifications

6
RAMSET
www.ramsetinc.com
RAM 100 • 1000 • 5500
MODEL RAM 100 RAM 1000 RAM 5500 3/4 HP RAM 5500 1HP
MAX. GATE TRAVEL 20 feet 45 feet 45 feet 45 feet
MAX. GATE WEIGHT 700 lbs 1000 lbs 1500 lbs 2500 lbs
CYCLES Continuous Continuous Continuous Continuous
CAPACITOR
Aerovox 65µƒ, 240 V, 50/60
HZ, protected S 1000AFC
Aerovox 65µƒ, 240 V, 50/60
HZ, protected S 1000AFC
Aerovox 50µƒ & 65µƒ, 240
V, 50/60 HZ, protected S
1000AFC
Aerovox 75µƒ & 75µƒ, 240
V, 50/60 HZ, protected S
1000AFC
APPLICATION Residential/ Commercial Commercial/ Industrial Commercial/ Industrial Commercial/ Industrial
FINISH AND
CONSTRUCTION
Gold/Zinc plated
3/16” H.R. Metal
Gold/Zinc plated
3/16” H.R. Metal
Gold/Zinc plated
3/16” H.R. Metal
Gold/Zinc plated
3/16” H.R. Metal
CONTINUOUS DUTY
MOTOR
1/2 Hp 115 Volts. AC
4.5 amp. 1625 rpm.
1/2 Hp 115 Volts. AC
4.5 amp. 1625 rpm.
3/4 Hp 115 Volts. AC
8.5 amp. 1625 rpm.
1 Hp 115 Volts. AC
9.4 amp. 1625 rpm.
POWER FAILURE
RELEASE
Exclusive Foot Pedal
Release (RPI-TL only)
Exclusive foot pedal release
or optional battery back-up
system (BBS or RPI-TL)
Exclusive foot pedal release
or optional battery back-up
system (*BBS or RPI-TL)
Exclusive foot pedal release
or optional battery back-up
system (*BBS or RPI-TL)
OVERALL DIMENSIONS H 22” - L 14½” - W 15” H 27” - L 16” - W 16½” H 27” - L 16” - W 16½” H 27” - L 16” - W 16½”
GATE TRAVEL SPEED Approx. 1’ per sec Approx. 1’ per sec Approx. 1’ per sec Approx. 1’ per sec
SHIPPING WEIGHT 110 lbs 125 lbs 135 lbs 135 lbs
FOOT
PEDAL
RELEASE
EMERGENCY RELEASE
Exclusive foot pedal release disengages the gate
from the motor so it can be opened manually.
GENERAL SPECIFICATIONS
Note:
Model RAM 1000 and RAM 5500 can be
used for center and rear installation with
gates up to 25’ maximum.
WARNING
Do not exceed the specifications. The warranty on your unit will be void if the
installation exceeds the recommended specifications.

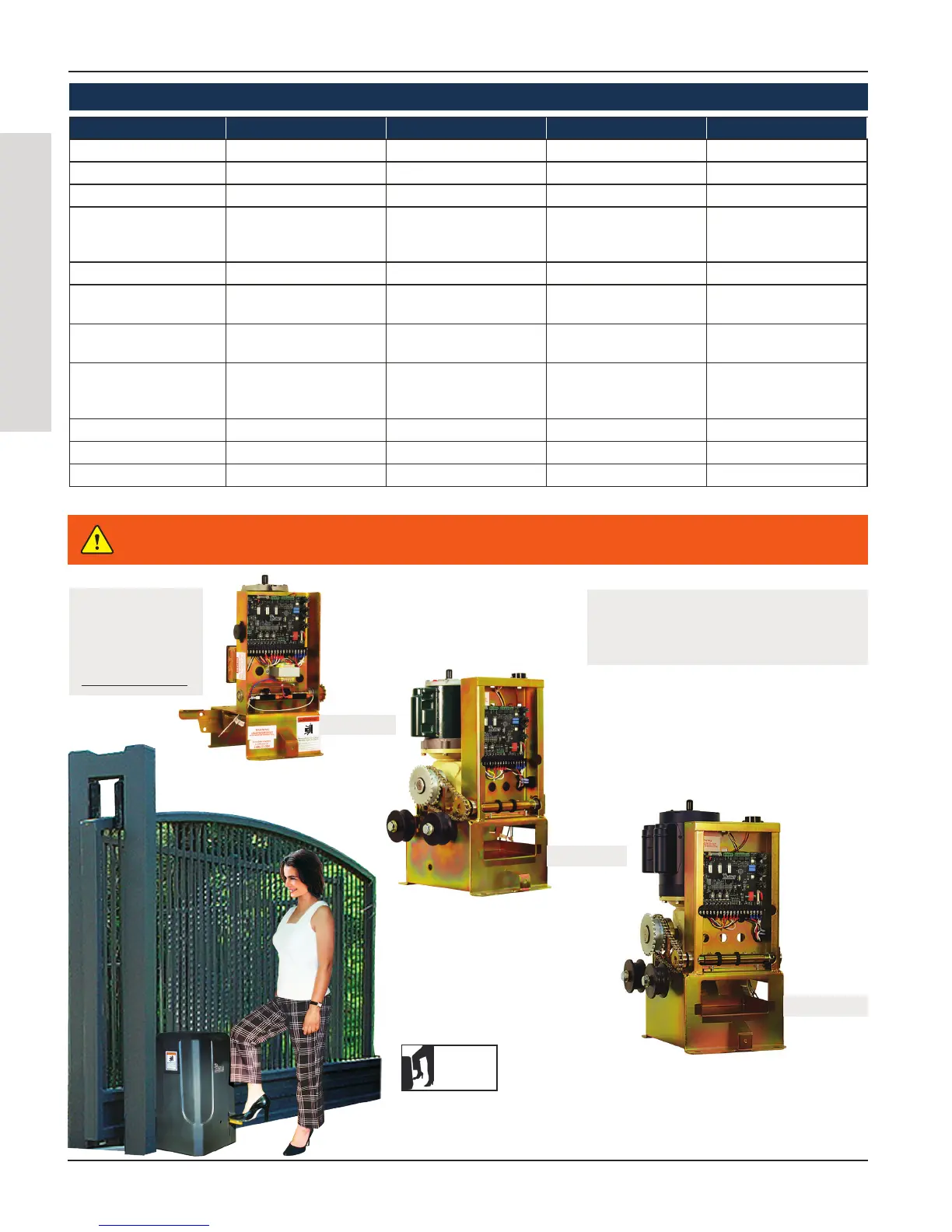

RAM 100
RAM 1000
RAM 5500
Note:
Model RAM 100
is designed to be
installed only for
front installations.
*BBS is only capable for 1000 lb gates or less.
3/4 Hp
(1Hp not shown)
