TRAKFAST REPAIR MANUAL
22
Rev. 09/07

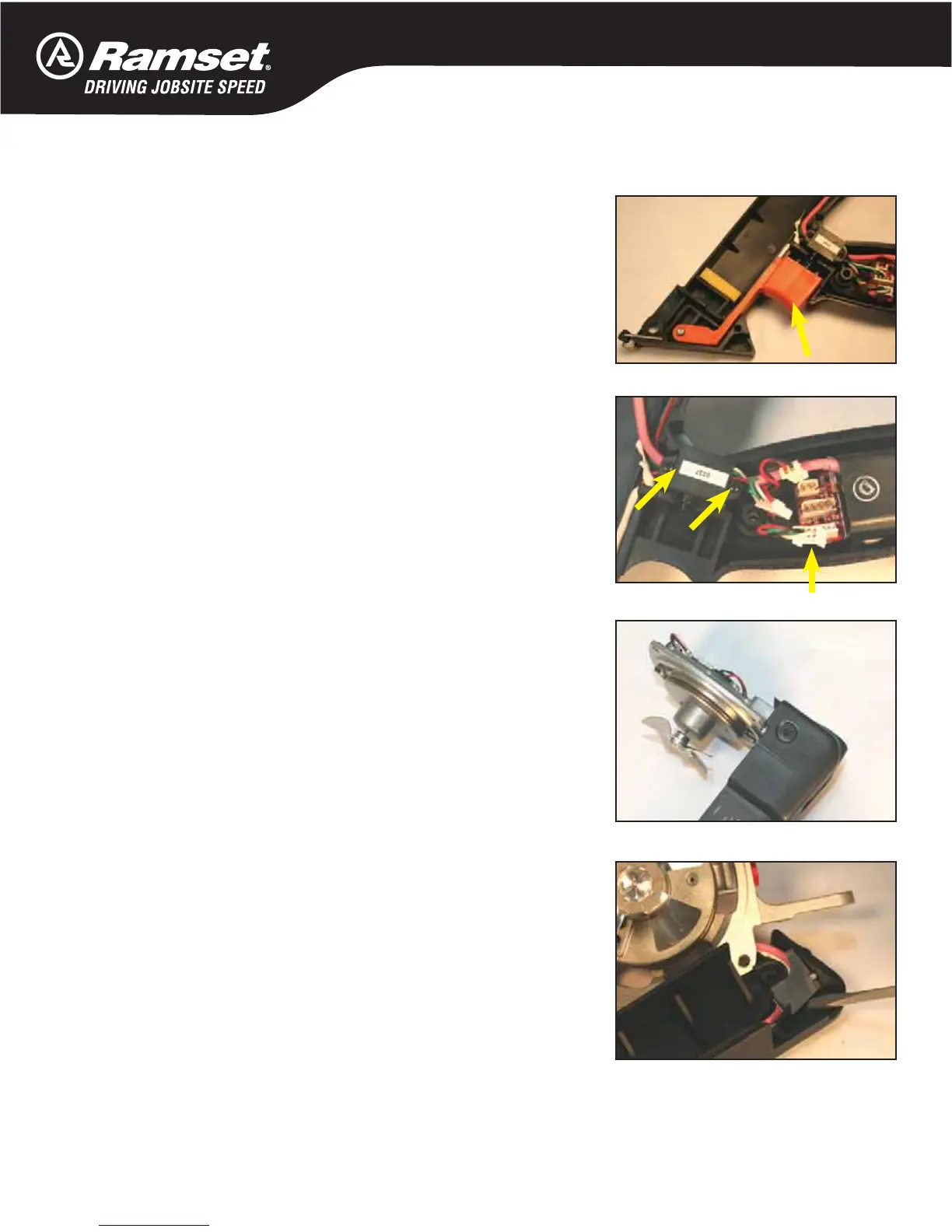

Remove Trigger and Spring from Handle.
(Trigger, part #401394A)
(Spring, part #401395)
Remove Trigger Switch with screw driver.
Undo the two screws and lift out.
Unplug from the Spark Unit.
(Trigger Switch, part #404990)
(Trigger screws, part #7405091)
TOOL DISASSEMBLY
Handle Assembly - Part 2 (cont’d)
Using a Phillips screw driver, remove screw. This will disconnect
the Handle from the Cylinder Head (part #7405065).
Lift out wire Cover Plate (part #900012).
To Next Page
