TRAKFAST REPAIR MANUAL
27
Rev. 09/07
TOOL DISASSEMBLY

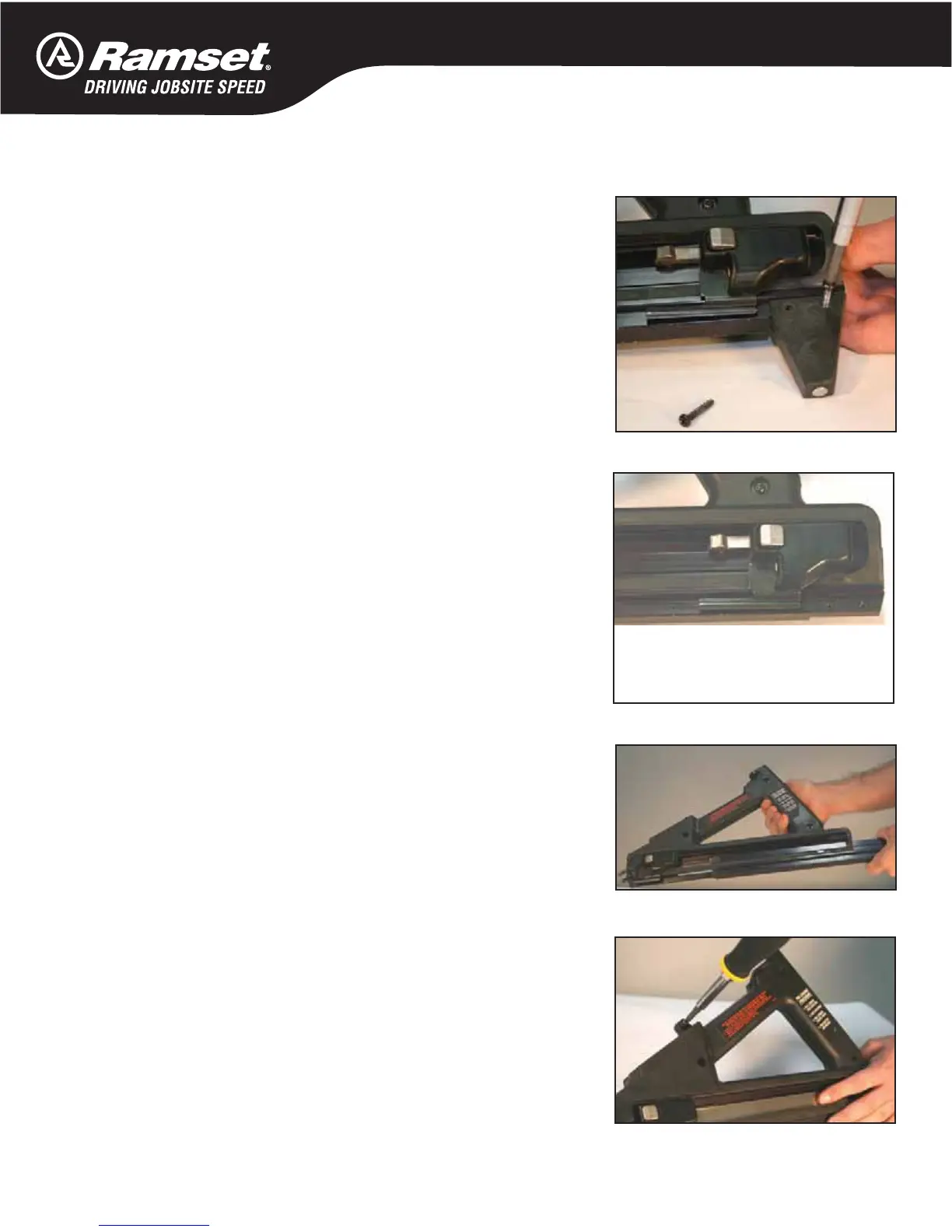

Magazine Assembly
Remove (2) screws holding Foot (part
#7505146).
Remove Foot (part #801113).
Pull off Magazine.
Remove Lower Rail (part #801110).
Pull and slide out rear of Magazine.
Remove (3) screws from Magazine (part #7405070).
Remove (1) screw (part #7405071).
