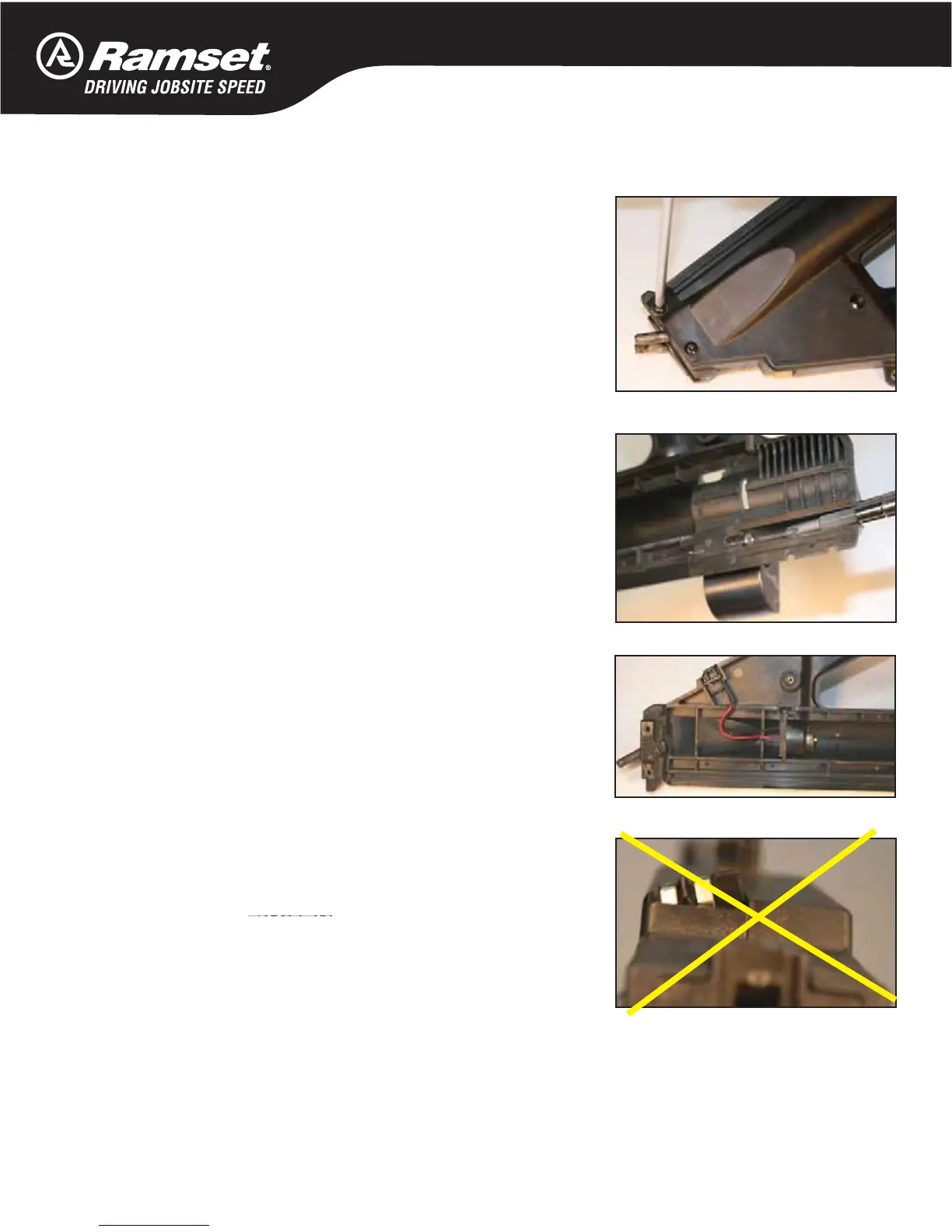

TOOL REASSEMBLY
Magazine Assembly
Place Shear Block in Magazine Assembly (part #7405145).
Secure with screws (part #7405147).
Check Shear Block for any damage.
Place Battery Clip in Magazine Half (part #401422).
Secure with screw (part #401423).
Check for any damage.
Place Battery Contact in Magazine Half (part #7505017).
Notice the position of the Battery Contact. Check for any damaged
parts and compressed springs.
Note: In the older style Magazine Assembly you may have to cut a
place for the Battery Contact.
Photo to the right shows INCORRECT placement of the Contact
Assembly.
Contact should sit flat.
