TRAKFAST REPAIR MANUAL
8
Rev. 09/07
Combustion

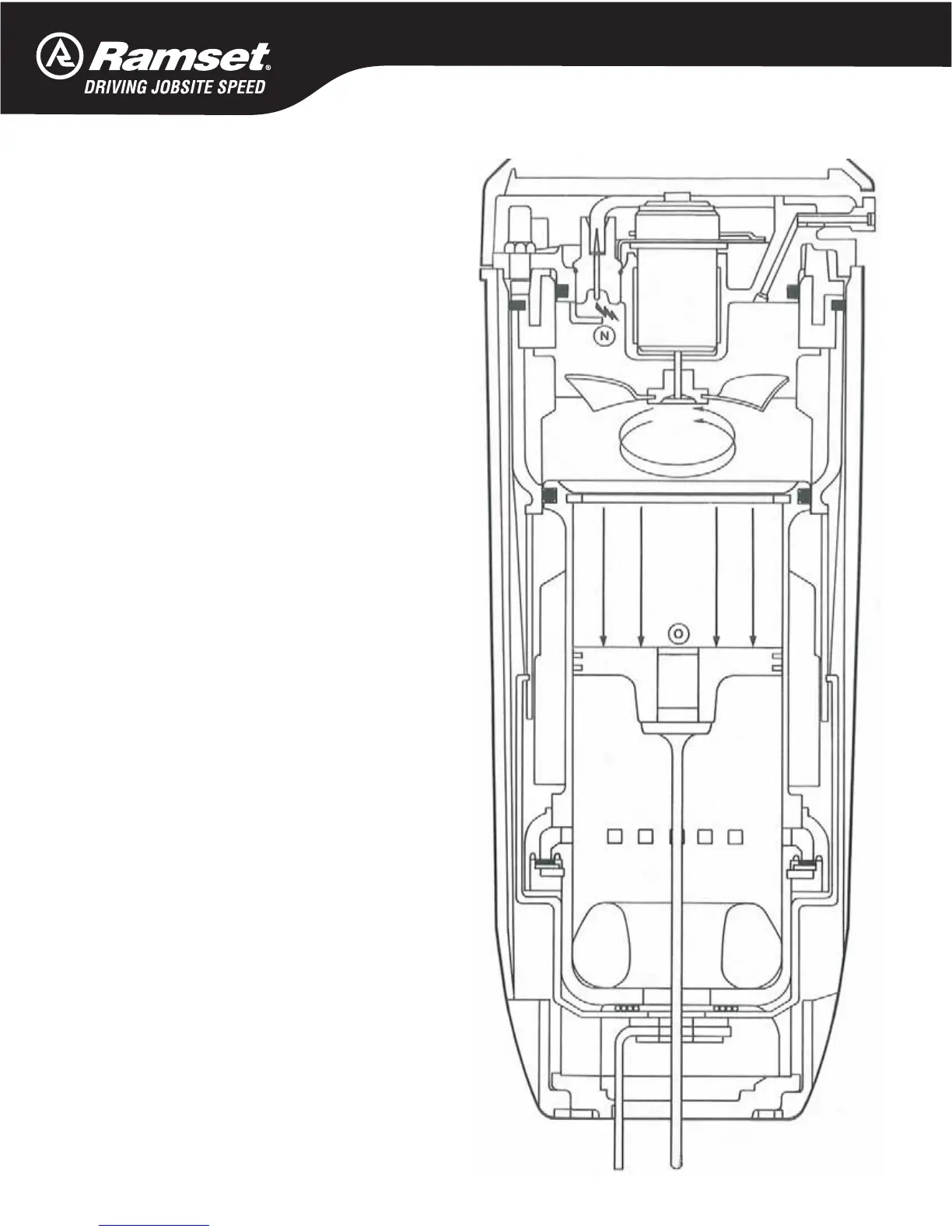

Depressing the trigger activates the ignition circuit.
This causes a spark (N) to jump the gap between
the spark element and cylinder head, igniting the
fuel/air mixture in the combustion chamber. Pis-
ton assembly (O) is forced downward driving the
fastener into the work surface.
TOOL OPERATION
