TRAKFAST REPAIR MANUAL
56
Rev. 09/07

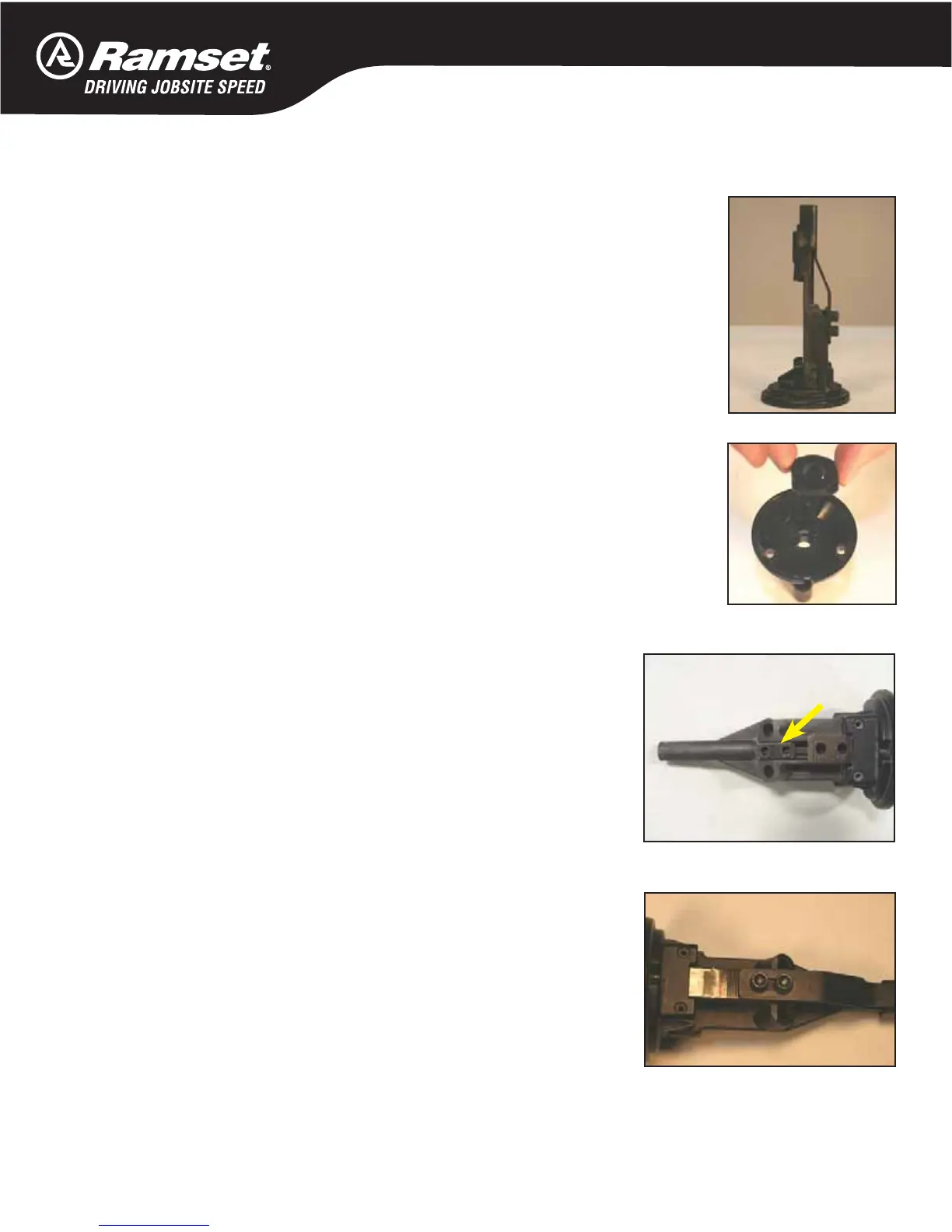

TOOL REASSEMBLY
Nosepiece Assembly — Original Nose
Original Nose piece (part #801114A).
Roll pins (part #7405058).
Check for any damage.
Replace Roll Pins if loose.
Slide Lower Probe in Nosepiece (part #7505057).
Replace Probe if bent or grommet is worn or missing.
Slide Tie Bar into Nosepiece.
Line up with holes.
Place screws into Lower Probe and Tie Bar.
Line up holes and make sure the Lower Probe is fully extended
downward. Probe must be all the way extended or tool will not
fire.
Secure with Locking Washers and screws. Put Loctite 242 (Blue)
on screw threads.
Some probes could be adjusted for length adjust for 3 of the teeth
showing.
