RAMSET TRAKFAST - Telescoping Nosepiece

TRAKFAST REPAIR MANUAL
40
Rev. 09/07

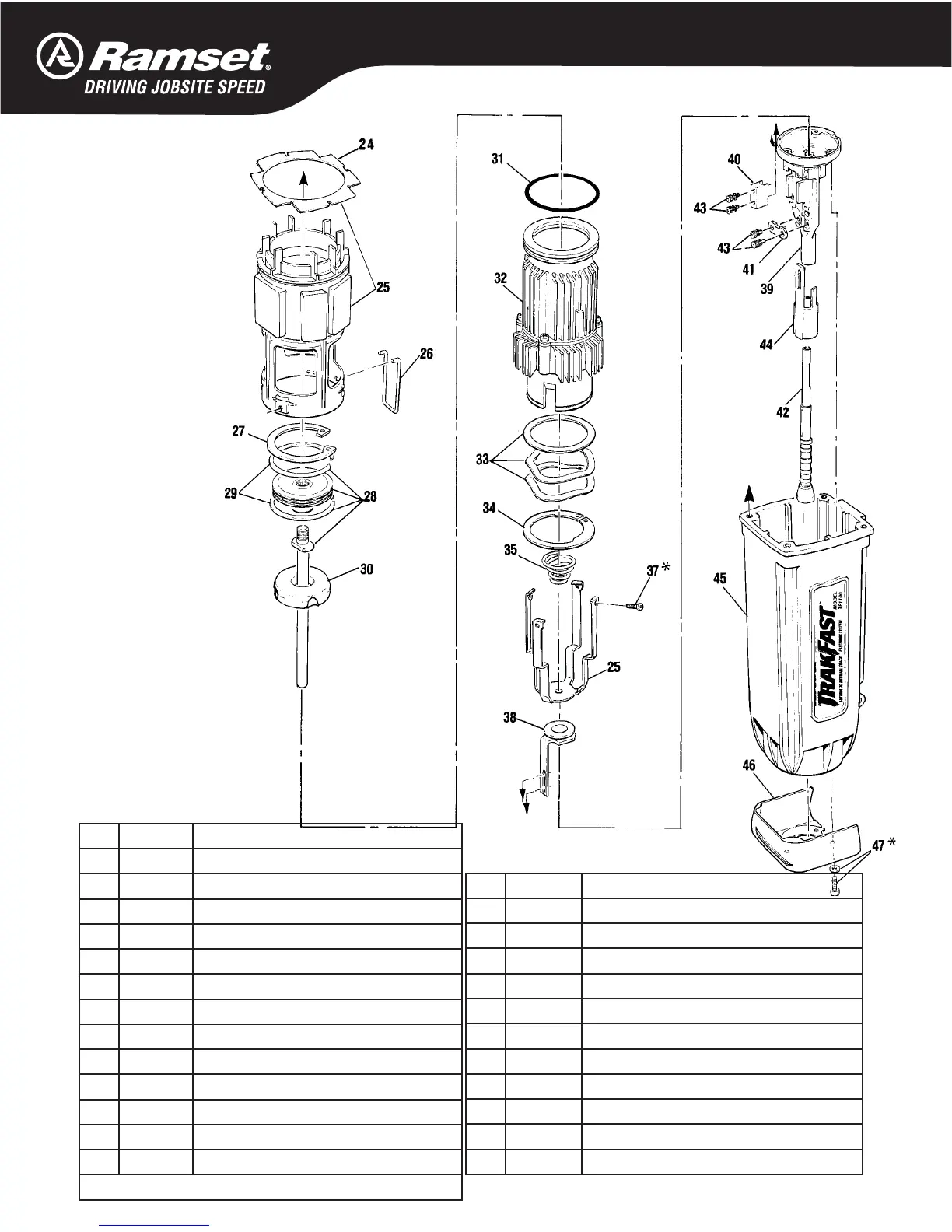

TOOL REASSEMBLY
Telescoping Nosepiece
KEY PART NO. DESCRIPTION
24 401313 Air Dam
25 7405171 Combustion Chamber (w/Air Dam & Cage)
25A 900234 Cage
26 401330 Chamber Lockout Bar
27 401328 Piston Stop Retaining Ring
28 7502000 Piston Assembly (with Piston Rings)
29 7405055 Piston Rings (pkg. 2)
30 7505109 Bumper
31 404482 O-Ring (Sleeve and Mid-Check
32 403083 Sleeve and Mid-Check Assembly
33 7405056 Seal (1) and Wave Washers (2)
34 401322 Mid-Check Retaining Ring
35 401488 Cage Spring
*screws - use Loctite 242 (Blue)
KEY PART NO. DESCRIPTION
37* 092769 Screw, #10-32 x 1/4”
38 801132 Upper Probe with Grommet
39 801130A Nosepiece Assembly
40 801131 Guide Block
41 801127 Stop Plate
42 801129 Work Contact Element
43* 7405059 Screw Kit, #10-32 x 3/8” SEMS
44 801128 Lockout Probe
45 7505148 Housing (with labels)
46 7505013 Dust Shield
47 7405060 Cap Screws & Washers, #10-24 x 1” (pkg. 3)
A
