TRAKFAST REPAIR MANUAL
42
Rev. 09/07

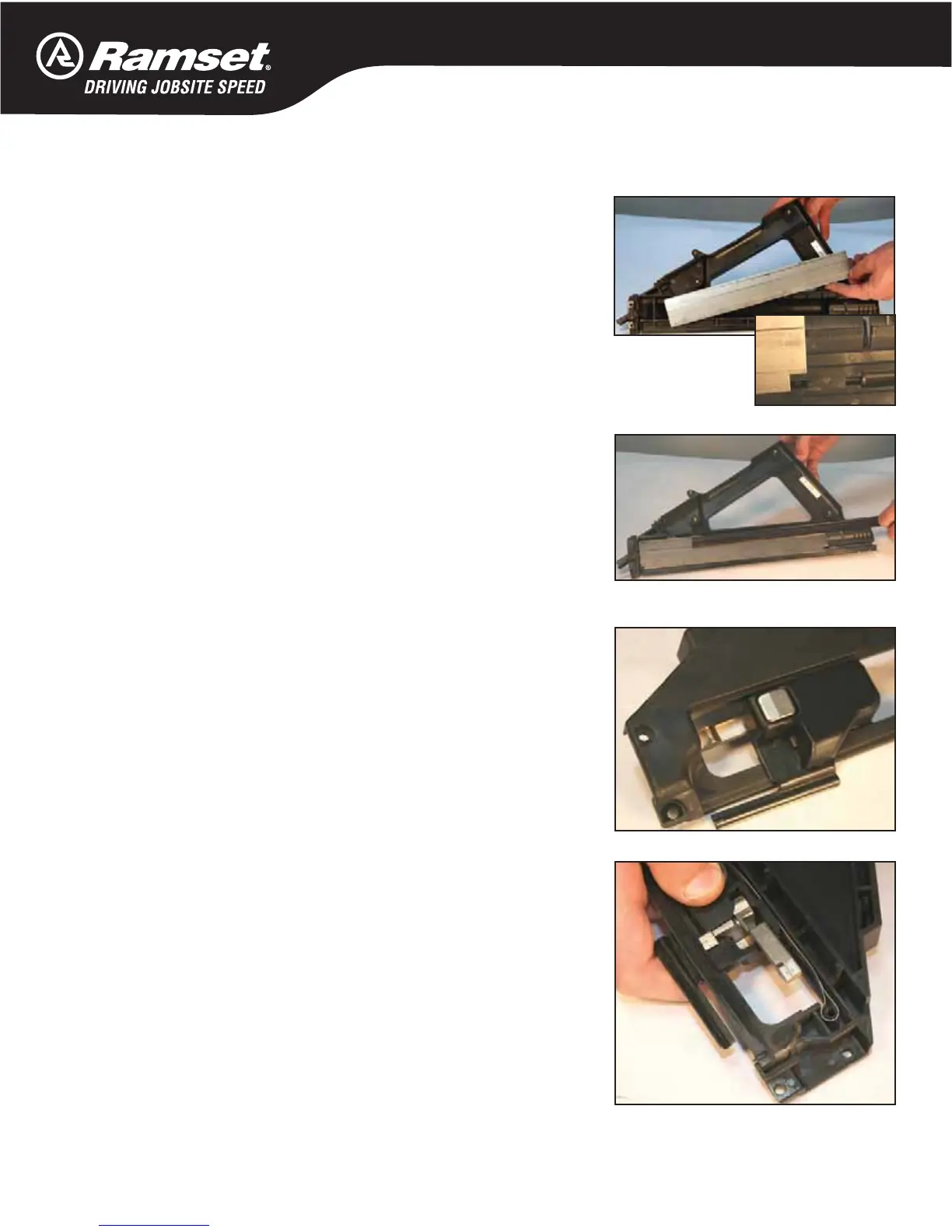

Place Cover Plate in Magazine Assembly (part #7506006).
Notice position of notch. It should be placed toward the bottom/
rear of Magazine.
Place Upper Rail in Magazine Half (part #801112).
Check for any damage.
Check ends of rail for any burrs and check to see if it is bent.
Notice the position of the Upper Rail as it fits into the Shear Block.
Place Carrier Assembly in between Magazine Half.
TOOL REASSEMBLY
Magazine Assembly
Make sure Spring is placed in between the Handle Half so it will
slide (part #7405168).
Slide Carrier onto the Post.
Check for any damage.
