TRAKFAST REPAIR MANUAL
43
Rev. 09/07

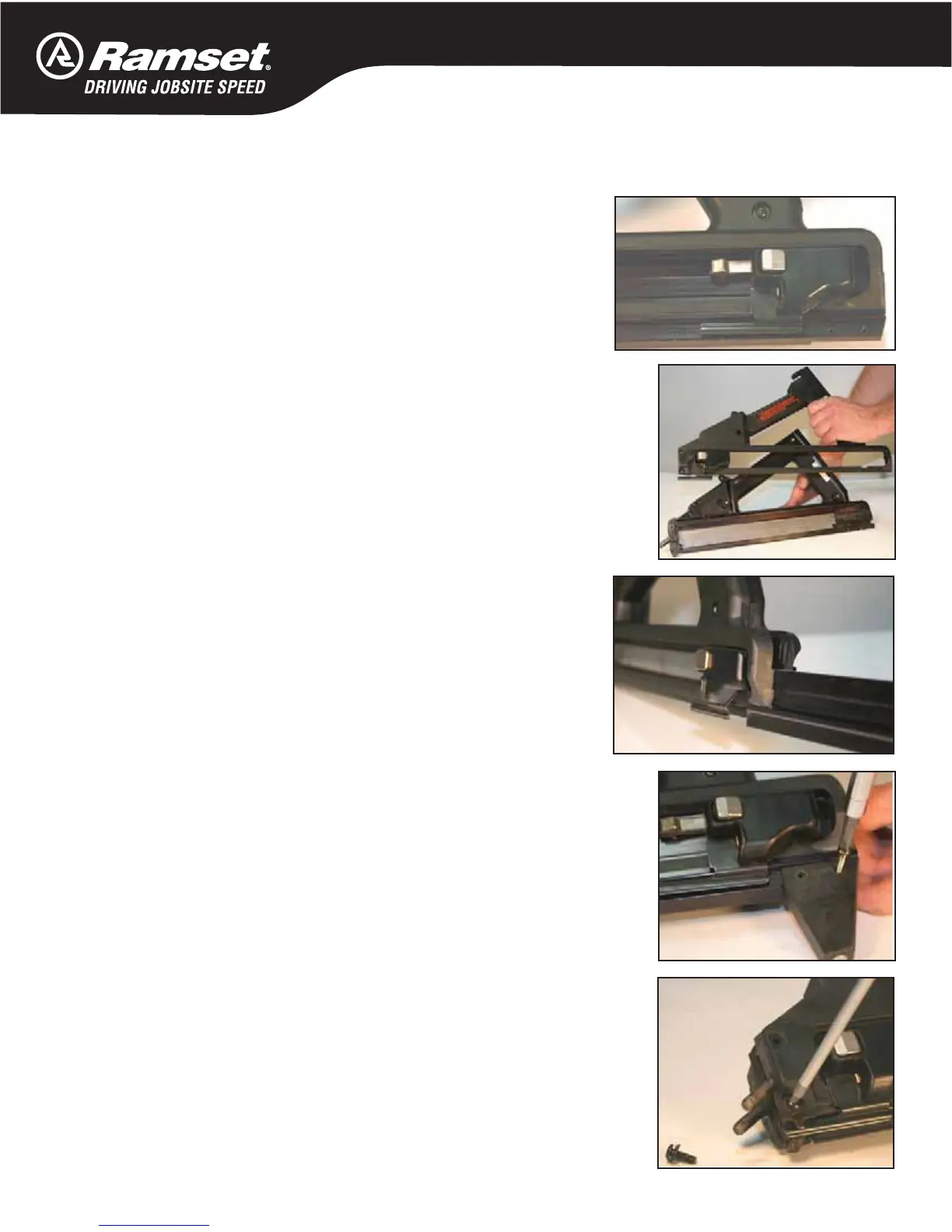

Slide Carrier all the way back to the lock position (part #7405168).
Place Magazine Halves together (part #7405149).
Secure with screws .
(part #7405070, 3 each)
(part #7405071, 1 each)
(Shear Block screws, part #7405147)
Slide Lower Rail into Magazine Halves (part #801110).
Check for any damage.
TOOL REASSEMBLY
Magazine Assembly
Replace Foot (part #801113).
Line up the screw holes.
Replace (2) screws (part #7405146).
To Next Page
