TRAKFAST REPAIR MANUAL
24
Rev. 09/07

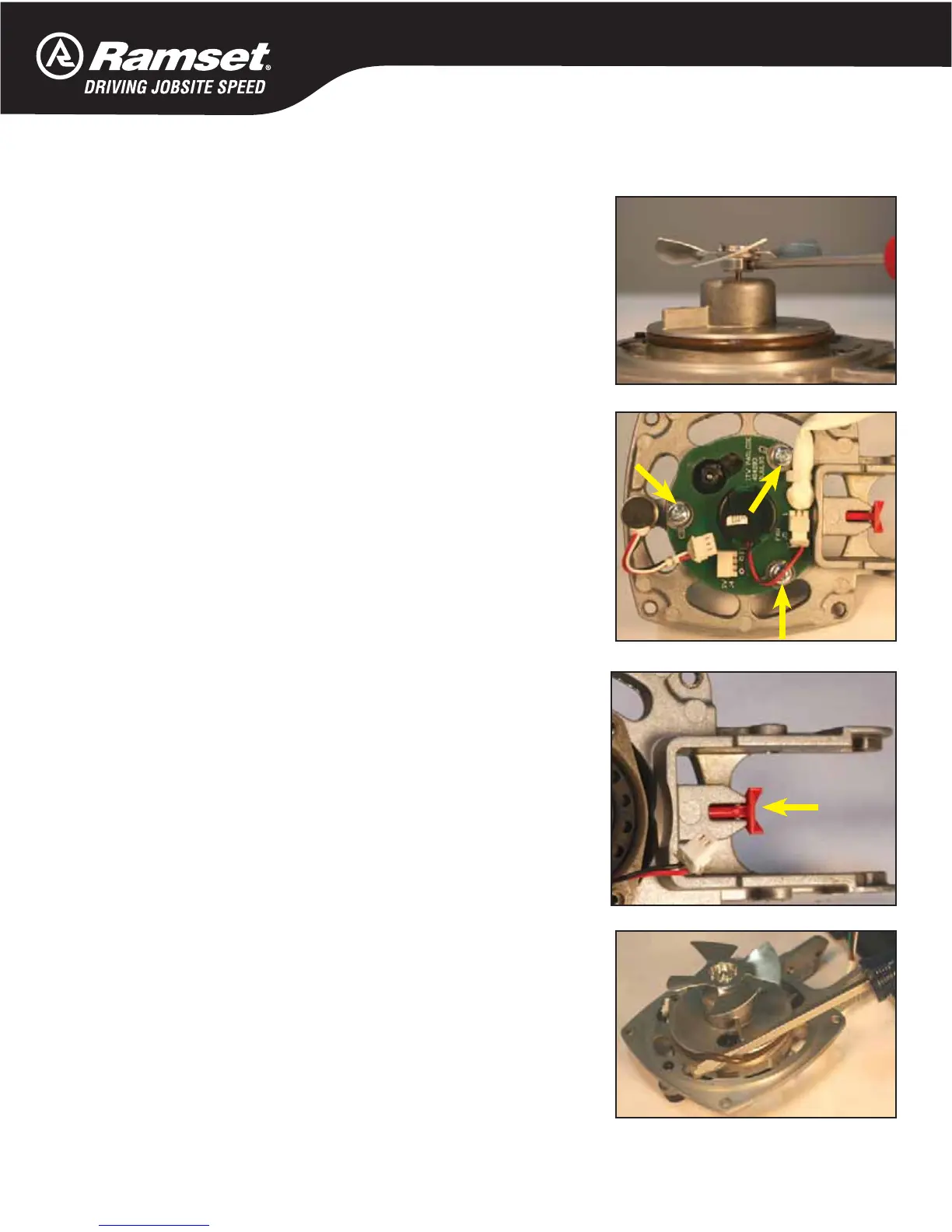

Remove Fan Blade Set Screw (requires #T-7).
(Fan Blade part #403167 with screw)
With Phillips screw driver remove (3) screws (part #7405090)
holding P.C. Board. Unplug Fan Connector.
Pull out red Stem Adapter (part #401340).
TOOL DISASSEMBLY
Handle Assembly - Part 2 (cont’d)
Lift up O-Ring and remove (part #403992).
Inspect O-Ring. Replace is any damage is noted.
To Next Page
