TRAKFAST REPAIR MANUAL
48
Rev. 09/07
TOOL REASSEMBLY

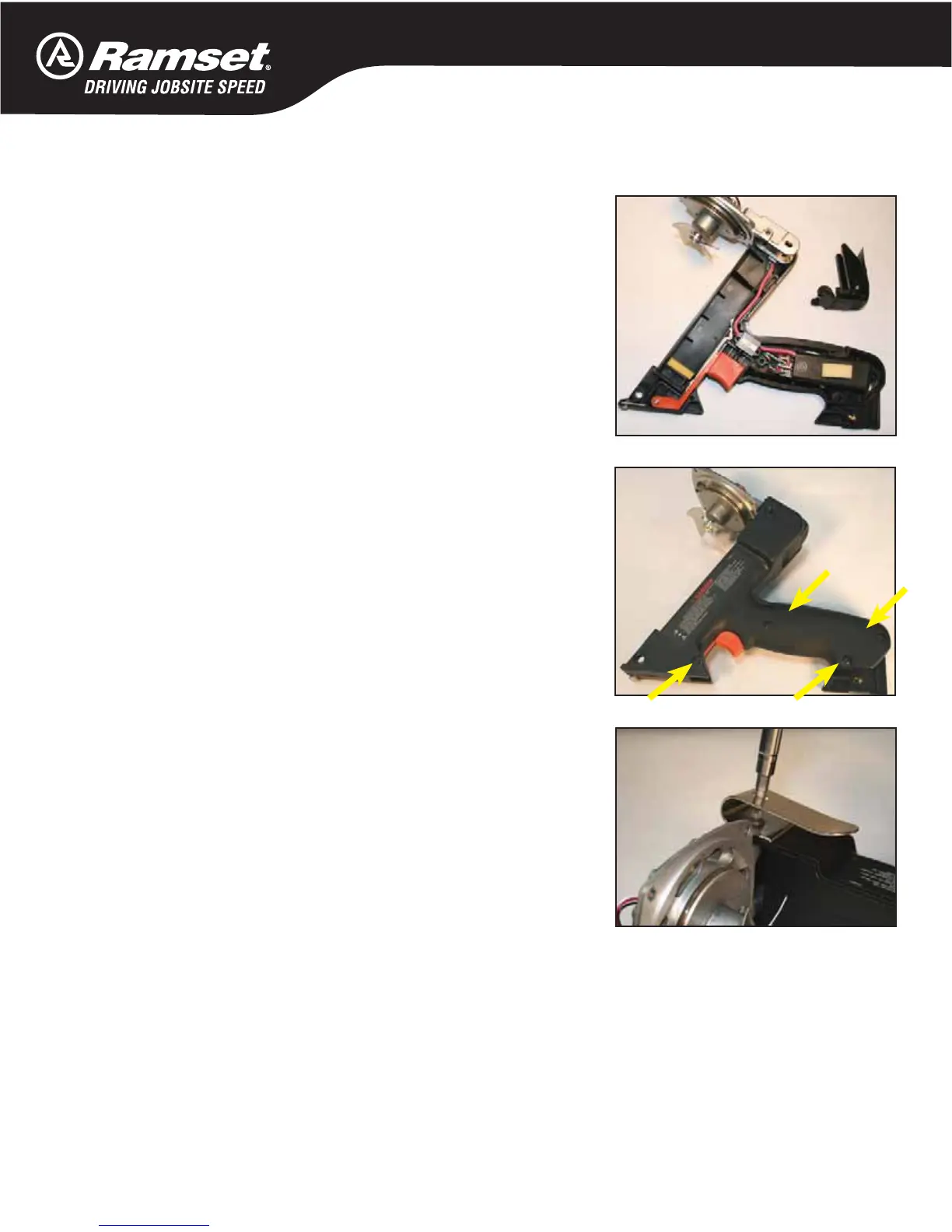

Handle Assembly - part 2
Place Actuator inside the Handle.
Note the position of the handle.
Replace if broken or damaged.
Check all wires before placing Handle half.
Secure with screws.
Pull Trigger to make sure it is in correct position.
Place Belt Hook on Handle. Secure with screw.
Check to make sure that the washers are on the screw and Cylin-
der Head is straight.
If removing Belt Hook, always replace the screw and washers back
in the Handle half. This keeps Cylinder Head in position.
Note: If washers are not used or an incorrect screw is used, this
may restrict movement of Fuel Cell causing an inoperative tool.
