TRAKFAST REPAIR MANUAL
51
Rev. 09/07
TOOL REASSEMBLY
Housing Assembly - (cont’d)

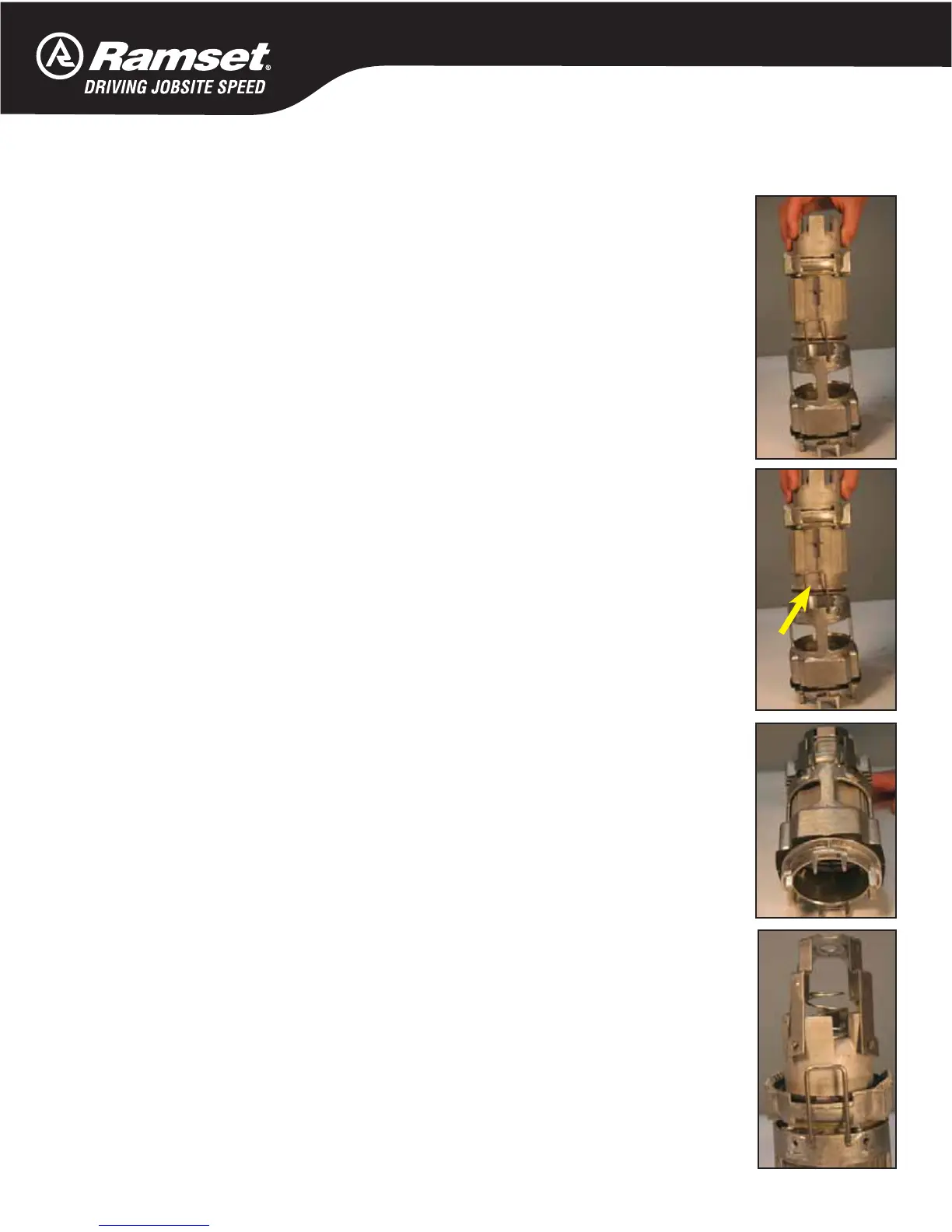

Slide the Combustion Chamber on to Sleeve Mid-Check Assembly.
Check for any damage on parts.
Lubricate sealing surfaces on Combustion Chamber with TrakFast
or Paslode oil prior to assembling the sleeve.
Place Lockout Bracket in holes.
Line up the cross on the Sleeve with holes for the Lockout Bracket.
Slide together.
Check Air Dam for any damage.
The widest notch in the Air Dam lines up with the Lockout Bracket.
Place Spring on bottom of Sleeve Assembly. Place Cage over
Sleeve.
Check parts for any damage.
Secure with screws, using a T-25. Apply Blue #242 Loctite to
screw threads.
