TRAKFAST REPAIR MANUAL
53
Rev. 09/07
TOOL REASSEMBLY
Housing Assembly - (cont’d)

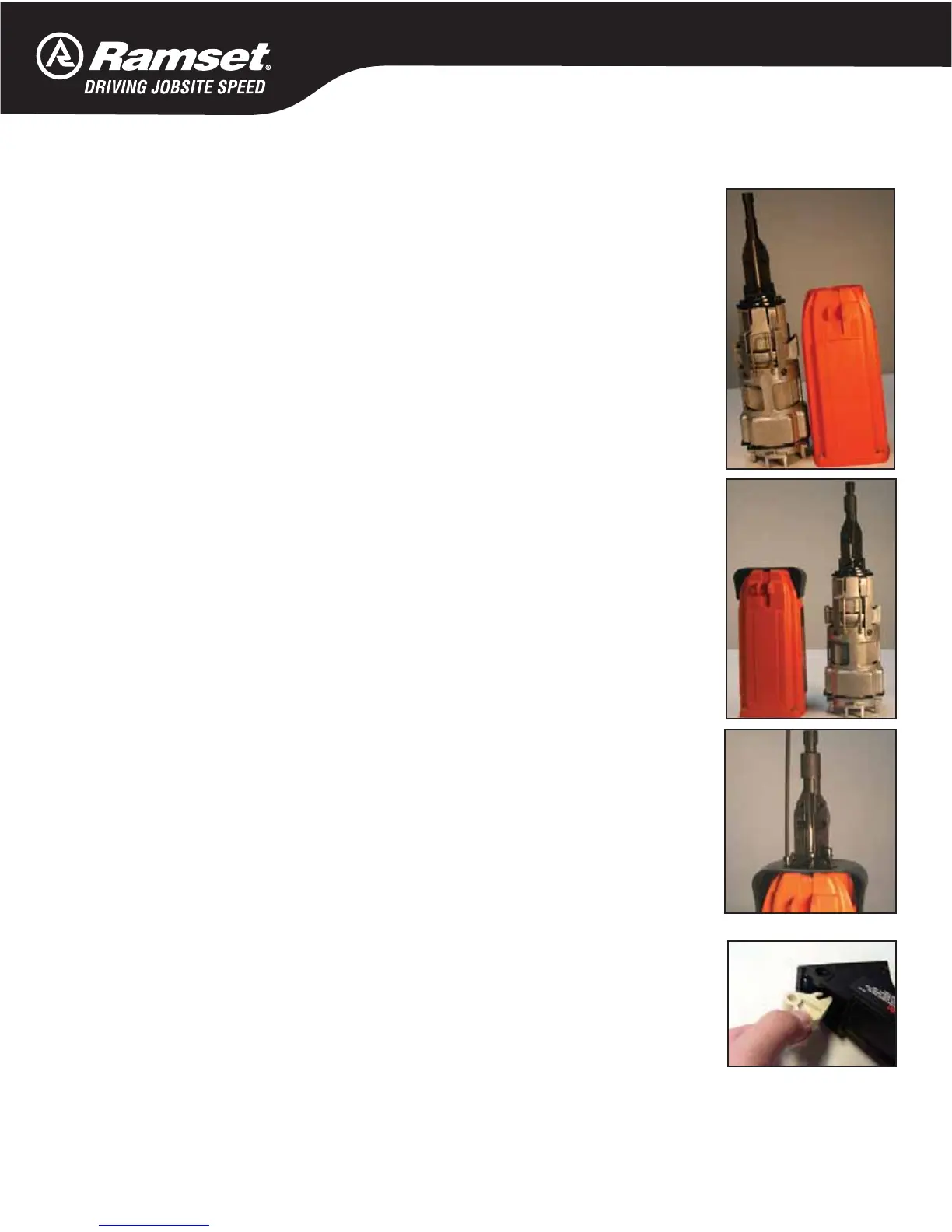

Place Nosepiece Assembly on Mid-check Assembly.
Note how parts line up.
Slide Housing over Nosepiece and Mid-check Assembly.
Note the position of the Lockout Bar.
Slide Dust Shield over Nosepiece.
Secure with screws.
Replace if torn or missing.
Do not use tool without Dust Shield. This would cause dust to
from inside the tool.
Place Cam inside Handle
Note the position of the hole.
To Next Page
