All tasks necessary to operate the instrument can be performed using this user
interface. Apart from instrument specific keys, all other keys that correspond to an
external keyboard (e.g. arrow keys, ENTER key) operate conform to Microsoft.
For most tasks, there are at least 2 alternative methods to perform them:
●
Using the touchscreen
●
Using other elements provided by the front panel, e.g. the keypad, rotary
knob, or arrow and position keys
6.2.1 Toolbar
Standard functions can be performed via the icons in the toolbar at the top of the
screen, if available (see Chapter 6, "Basic Operations", on page 45). By default,
this toolbar is not displayed.

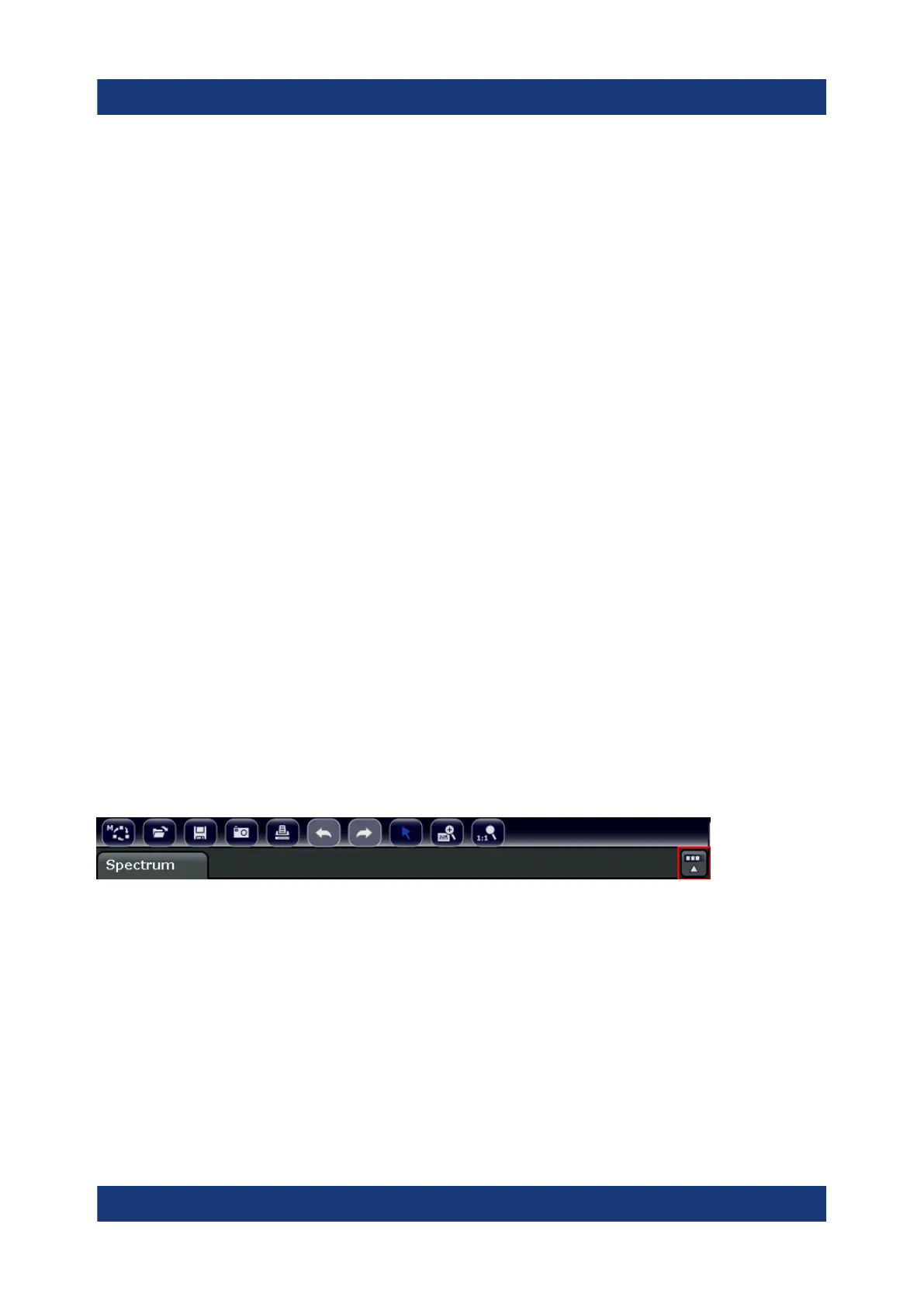

Displaying the toolbar
► Press the "Toolbar" icon to the right of the tabs in the display to toggle the
toolbar on or off.
Alternatively:
1. Press the [SETUP] key.
2. Press the "Display Setup" softkey.
3. Press the "Tool Bar State On/Off" softkey.
Or:
4. Press the [DISPLAY] key.
5. In the "Display Settings" dialog box, select "Tool Bar State: On".
The toolbar is displayed at the top of the screen.
Means of User Interaction
