Basic Operations
R&S
®
ESR
74Getting Started 1316.3749.02 ─ 09
Zoom and the number of sweep points
Note that zooming is merely a visual tool, it does not change any measure-
ment settings, such as the number of sweep points!
You should increase the number of sweep points before zooming, as other-
wise the function has no real effect (see the "Sweep Points" softkey, descri-
bed in the Operating Manual and online help).

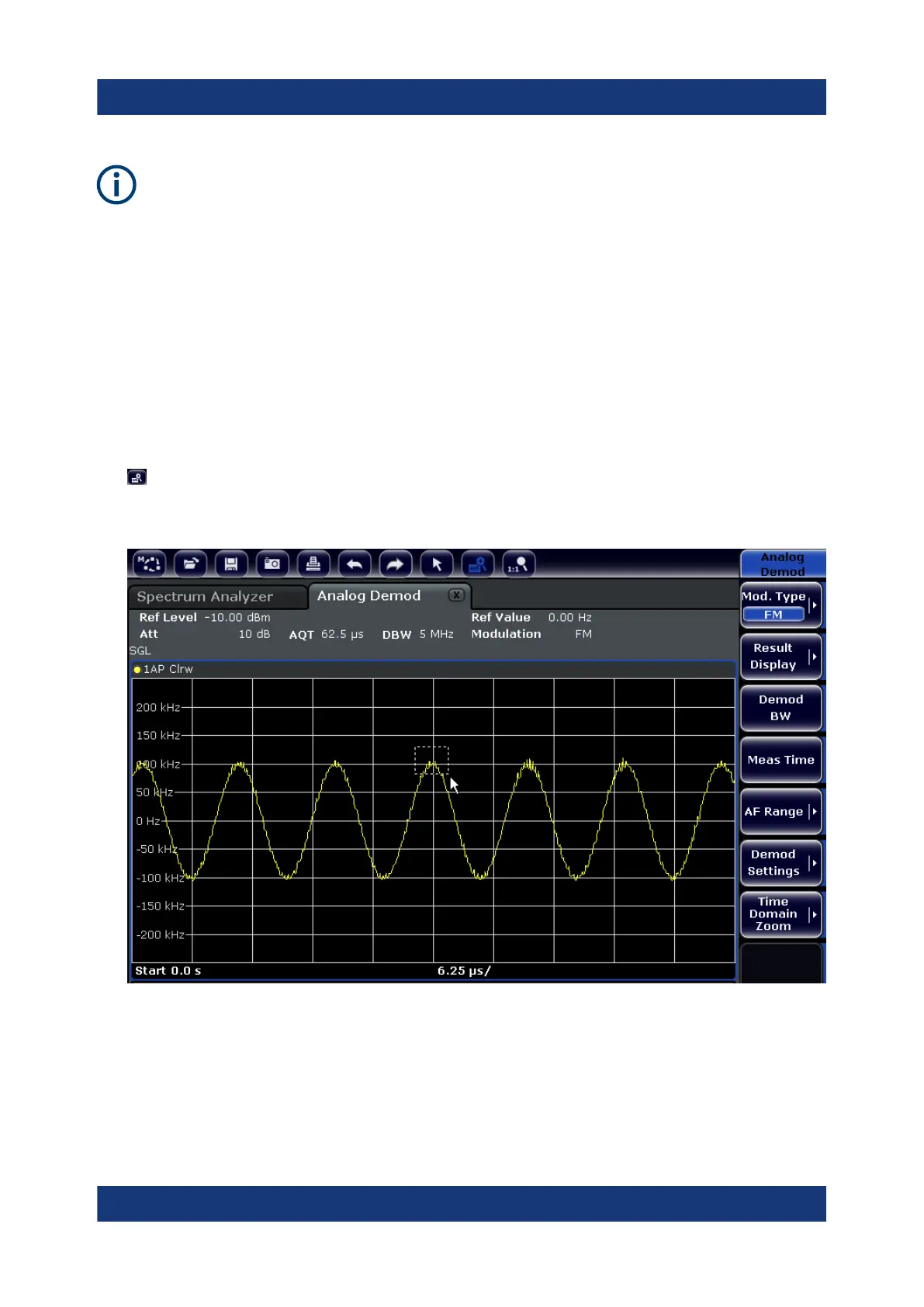

To zoom into the diagram
1. Display the toolbar as described in Chapter 6.4.5, "Displaying the Toolbar",
on page 73.
2.
Click on the "Zoom On" icon in the toolbar.
A dotted rectangle is displayed in the diagram.
3. Drag the lower right corner of the rectangle (either via touchscreen or a
mouse pointer) to define the area in the diagram to be enlarged.
4. Repeat these steps, if necessary, to enlarge the diagram further.
Changing the Display
