2. Cooker Overview
The 110 dual fuel cooker (Fig.2-1) has the following features:
A. 6 hotplate burners including 2 wok burners
B. A control panel
C. A glide-out grill
D. Multi-function oven
E. Fan oven
F. Storage drawer
Hotplate Burners
The drawing by each of the central knobs indicates which
burner that knob controls.
Each burner has a Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
When the igniter button is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
To light a burner, press the igniter button, and push in and
turn the associated control knob counter-clockwise to the
high position as indicated by the large ame symbol (

),
(Fig.2-2).
ArtNo.215-0009 - 110 Elan DF
0
00
ºC
0
ºC
M
0 0
0
0
0
0
A
B
C
D
E
F

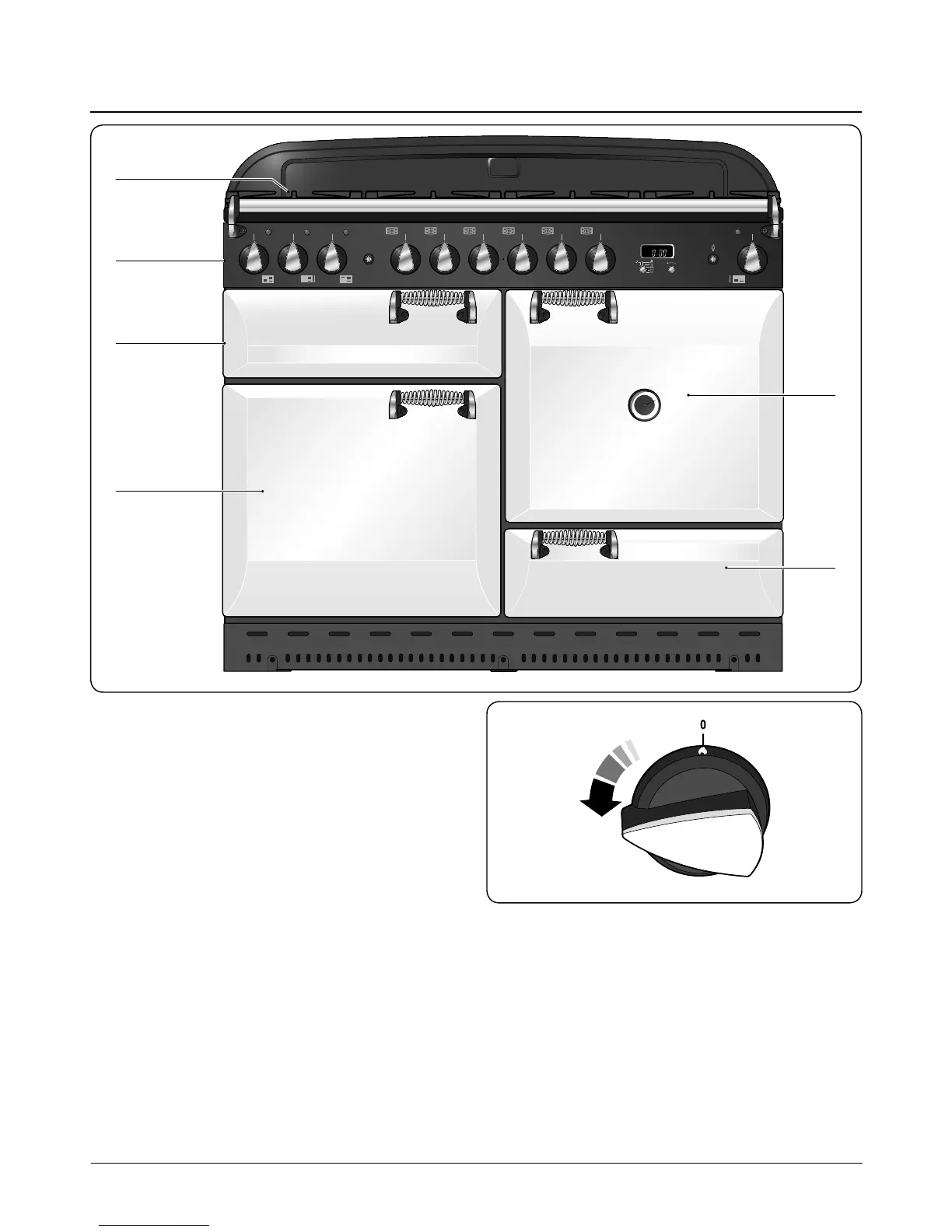

Fig.2-1
