Rangemaster Elise 100 Induction - 8 Circuit Diagrams; Induction Hob Circuit Diagram

25

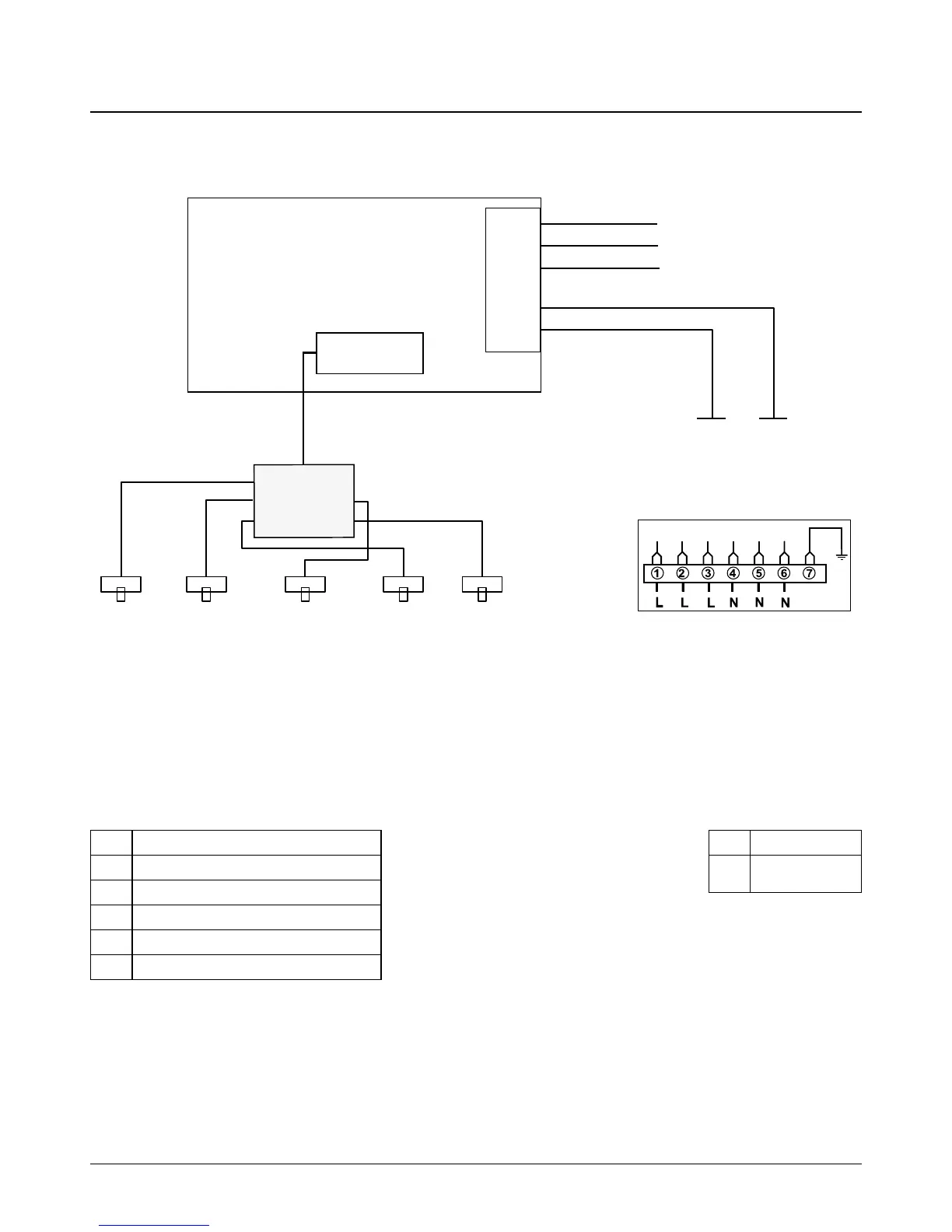

ArtNo.083-00211 - IN 100 - Circuit diagram - Classic DL- Prof+ hob
5 3 4
Earth
N(6)
N(4)
L(2) L(3)
E
5
4
3
2
1
Interface
board
1
2
5
3 4
Induction unit
Hob display
w/br
w/br
w/br
w/br
w/br
1 2
On terminal block
On terminal block
On terminal block
Code Colour
w/br White or brown
Code Description
1 Left-hand front element
2 Left-hand back element
3 Right-hand back element
4 Right-hand front element
5 Centre element
8. Circuit Diagrams
Induction Hob Circuit Diagram
