Rangemaster Elise 90 Induction - 12 Circuit Diagrams

29
12. Circuit Diagrams
Hob

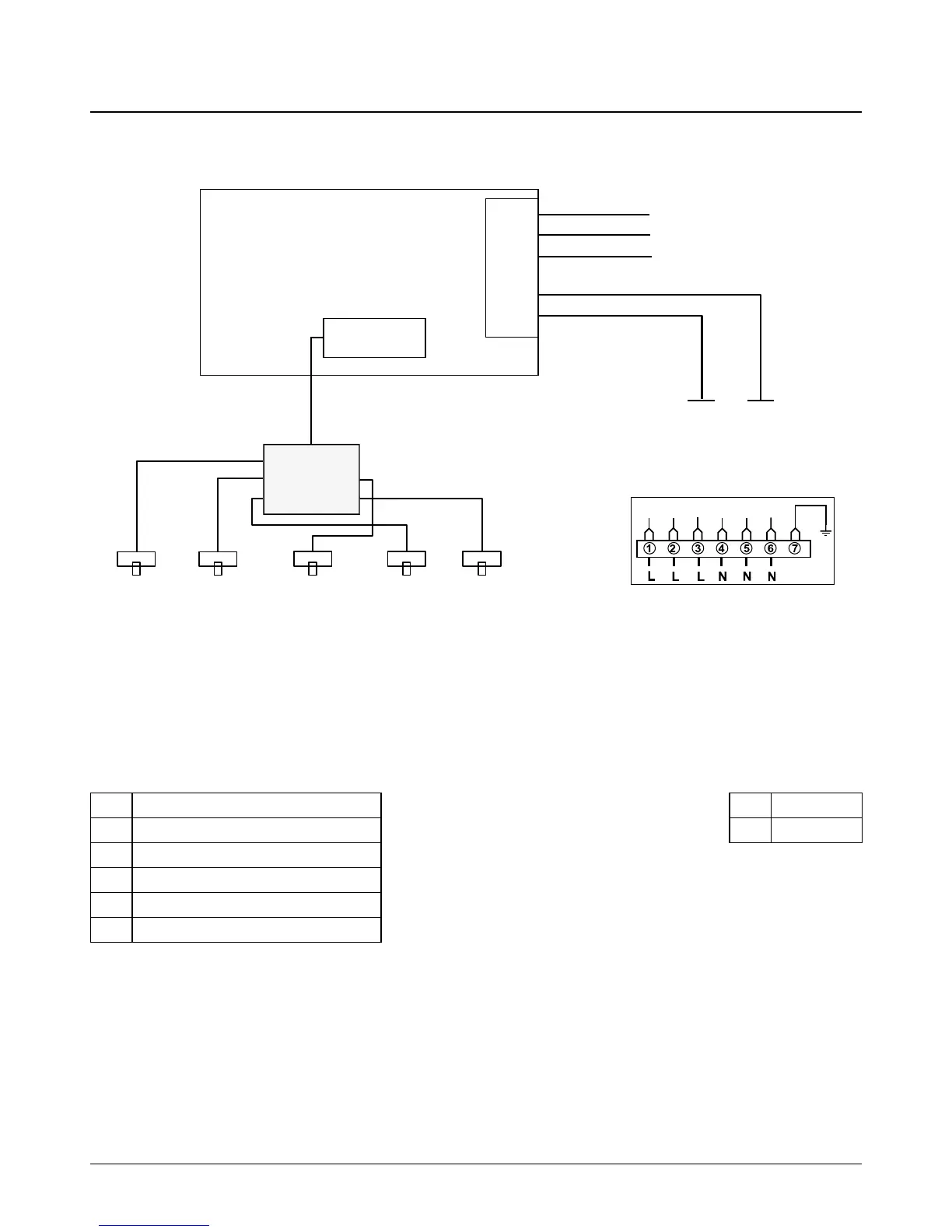

ArtNo.095-0003 - Circuit diagram - 90 induction
ArtNo.083-0011 - IN G5 2-phase - Circuit diagram
5 3 4
Earth
N(6)
N(4)
L(2) L(3)
E
5
4
3
2
1
Interface
board
1
2
5
3 4
Induction unit
Hob display
w/br
w/br
w/br
w/br
w/br
1 2
On terminal block
On terminal block
On terminal block
Code Description
1 Left-hand Front Element
2 Left-hand Back Element
3 Right-hand Back Element
4 Right-hand Front Element
5 Centre Element
Code Colour
w/br White or brown
